Nextivity

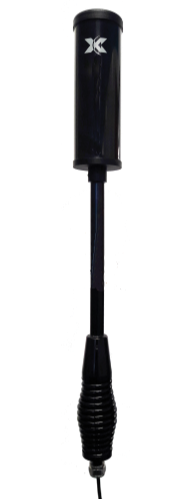

Nextivity A21-V31-100 CEL-FI Trucker Antenna
Product Code:
A21-V31-100
Condition:
New
Weight:
1.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The Cel-Fi Trucker Antenna was developed by Nextivity to offer a high-performance wideband antenna option for over-the-road (OTR) users. The product features a heavy-duty spring base and includes a mirror-mount for easy installation.
| ELECTRICAL SPECIFICATION | ||
| Frequency Range | 698-960 MHz | 1710-2700 MHz |
| Gain | 4dBi | |
| VSWR | ≤2.0 | ≤1.8 |
| Polarization | Vertical | |
| Horizontal Beamwidth | 360° | |
| Vertical Beamwidth | 60° | |
| Input Impedance | 50 Ω | |
| Maximum Power | 100 W | |
| Lightning Protection | DC Ground | |
| MECHANICAL SPECIFICATION | ||
| Connector | SMA Male | |
| Length of Cable | 4 m cable | |
| Dimensions | 600 mm | |
| Weight | 1.0 kg | |
| Reflector Material | Aluminum | |
| Radome Material | UV-PVC | |
| Operating Temperature | -40 °C to +65 °C | |
| Mounting | Pole Ø38xØ52 mm | |
| Color | Black | |
5 customers are viewing this product
Details
The Cel-Fi Trucker Antenna was developed by Nextivity to offer a high-performance wideband antenna option for over-the-road (OTR) users. The product features a heavy-duty spring base and includes a mirror-mount for easy installation.
| ELECTRICAL SPECIFICATION | ||
| Frequency Range | 698-960 MHz | 1710-2700 MHz |
| Gain | 4dBi | |
| VSWR | ≤2.0 | ≤1.8 |
| Polarization | Vertical | |
| Horizontal Beamwidth | 360° | |
| Vertical Beamwidth | 60° | |
| Input Impedance | 50 Ω | |
| Maximum Power | 100 W | |
| Lightning Protection | DC Ground | |
| MECHANICAL SPECIFICATION | ||
| Connector | SMA Male | |
| Length of Cable | 4 m cable | |
| Dimensions | 600 mm | |
| Weight | 1.0 kg | |
| Reflector Material | Aluminum | |
| Radome Material | UV-PVC | |
| Operating Temperature | -40 °C to +65 °C | |
| Mounting | Pole Ø38xØ52 mm | |
| Color | Black | |
