Wilson Electronics

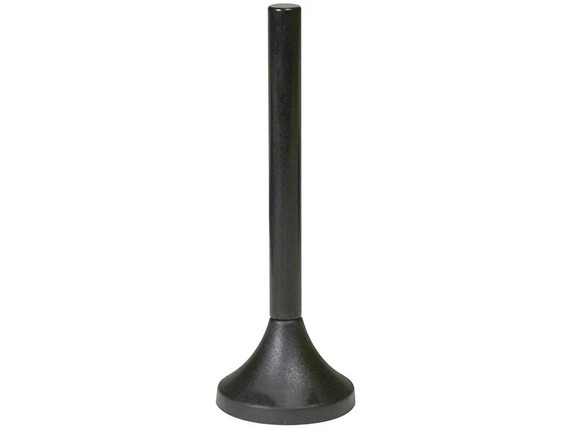

Wilson Electronics Mini Magnet Mount Antenna Omni Directional, 700-2300 MHz
Product Code:
7121281
Manufacturer Part Number (MPN):
301126 | 301113
Condition:
New
Weight:
0.10 KGS
$18.99 - $24.99
The Wilson 4" Mini Magnetic Mount Antenna series, featuring models 301113 and 301126, is specially designed for vehicles requiring a compact and effective signal boosting solution. This antenna is ideal for enhancing cellular reception in a discreet and efficient manner.
- Antenna Length: 4.175 inches, perfect for minimal visual impact while providing excellent signal reception.
- Antenna Type: Omni-directional, ensuring uniform signal enhancement in all directions.
- Cable: Includes 12.5 ft of RG174 cable, providing sufficient length for versatile installation options.
- Impedance: 50 Ohm, ideal for optimal signal performance.
- Mounting: Comes with a powerful mounting magnet, allowing for secure and easy attachment to any suitable metallic surface.
Whether you are looking to boost your cellular signal on the go or need a reliable communication enhancement in your vehicle, the Wilson 4" Mini Magnetic Mount Antenna models offer a powerful yet discreet solution.
| SPECIFICATIONS | ||
| Model | 301126 | 301113 |
| Connector | SMA male | FME female |
| Cable Type | RG-174 | |
| Cable Length ft / m | 12.5 / 3.81 | |
| Magnet Strength Vertical Pull (lb / kg) | 6 / 2.7 | |
| Dimensions (inch / mm) | 3.3 x 1.15 / 84 x 29 | |
| Antenna weight (oz / gm) | 2.5 / 71 with cable | |
| Packing weight (oz / gm) | 3.2 / 91 | |
| Rated wind velocity (mph / kph) | 90 / 145 | |
| Radiator material | Copper Clad Aluminum, Powder Coated | |
| Base material | Injection Molded, Encapsulated | |
| Magnet & Cable Color | Black | |
| Operating temperature (°C / F) | -40 to +55 / -40 to +131 | |
| RoHS Compliant | Yes | |
5 customers are viewing this product
Details
The Wilson 4" Mini Magnetic Mount Antenna series, featuring models 301113 and 301126, is specially designed for vehicles requiring a compact and effective signal boosting solution. This antenna is ideal for enhancing cellular reception in a discreet and efficient manner.
- Antenna Length: 4.175 inches, perfect for minimal visual impact while providing excellent signal reception.
- Antenna Type: Omni-directional, ensuring uniform signal enhancement in all directions.
- Cable: Includes 12.5 ft of RG174 cable, providing sufficient length for versatile installation options.
- Impedance: 50 Ohm, ideal for optimal signal performance.
- Mounting: Comes with a powerful mounting magnet, allowing for secure and easy attachment to any suitable metallic surface.
Whether you are looking to boost your cellular signal on the go or need a reliable communication enhancement in your vehicle, the Wilson 4" Mini Magnetic Mount Antenna models offer a powerful yet discreet solution.
| SPECIFICATIONS | ||
| Model | 301126 | 301113 |
| Connector | SMA male | FME female |
| Cable Type | RG-174 | |
| Cable Length ft / m | 12.5 / 3.81 | |
| Magnet Strength Vertical Pull (lb / kg) | 6 / 2.7 | |
| Dimensions (inch / mm) | 3.3 x 1.15 / 84 x 29 | |
| Antenna weight (oz / gm) | 2.5 / 71 with cable | |
| Packing weight (oz / gm) | 3.2 / 91 | |
| Rated wind velocity (mph / kph) | 90 / 145 | |
| Radiator material | Copper Clad Aluminum, Powder Coated | |
| Base material | Injection Molded, Encapsulated | |
| Magnet & Cable Color | Black | |
| Operating temperature (°C / F) | -40 to +55 / -40 to +131 | |
| RoHS Compliant | Yes | |
