Wilson Electronics

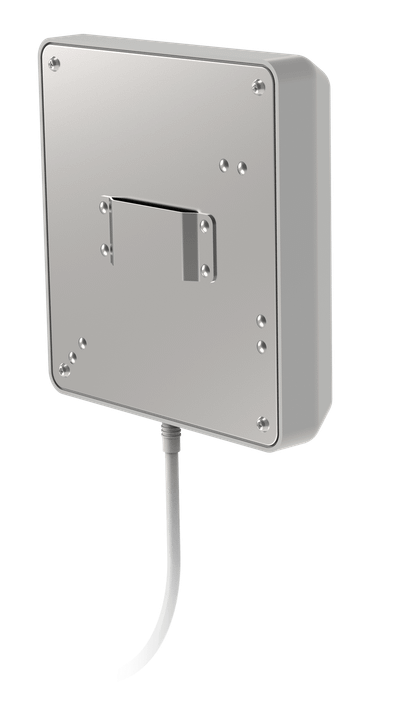

Wilson Electronics 6755353 50 Ohm Indoor Wall Mount Antenna
Product Code:
6755353
Manufacturer Part Number (MPN):
311234
UPC:
810005962445
Condition:
New
Weight:
0.46 KGS
Width:
16.80
(cm)
Height:
7.00
(cm)
Depth:
15.80
(cm)
$89.99
The Wilson Indoor Wall Mount Antenna 50 Ohm (311234) is crafted to boost cellular connectivity effectively within various indoor environments. This antenna is well-suited for enhancing signal strength in office spaces, homes, or other indoor settings, thanks to its comprehensive frequency support and compact design.
- Broad Frequency Range: Supports cellular frequencies from 617-960 MHz and 1710-2700 MHz, including Band 71, to accommodate a wide spectrum of cellular signals.
- Enhanced Connectivity: Ideal for anyone seeking to improve cellular reception in indoor areas such as offices or homes.

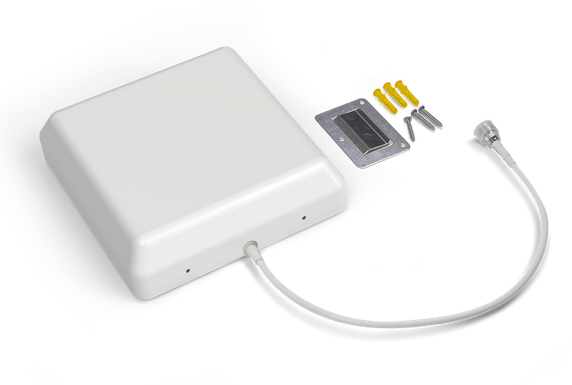

- Easy Installation: Designed for straightforward wall mounting, combining ease of installation with a space-saving form factor.
| Specifications | |
| Impedance | 50 ohm |
| Gain (Up/Down) | 8dB |
| Antenna Connector | N-Female |
| Antenna Polarization | Vertical |
| Connector | N-Female |
| Antenna Ground Plane | Built-In Ground Plane |
| Antenna Max Power | 20 watts |
| Antenna VSWR | <2.2:1 <1.6:1 |
| Dimensions | 6.6" x 6.2" x 1.8" |
| Specific Frequencies Supported | 617-698 MHz, 698-806 MHz, 806-960 MHz, 1710 - 1880 MHz, 1850-1990 MHz, 1910-2170 MHz, 2300-2700 MHz |
5 customers are viewing this product
Details
The Wilson Indoor Wall Mount Antenna 50 Ohm (311234) is crafted to boost cellular connectivity effectively within various indoor environments. This antenna is well-suited for enhancing signal strength in office spaces, homes, or other indoor settings, thanks to its comprehensive frequency support and compact design.
- Broad Frequency Range: Supports cellular frequencies from 617-960 MHz and 1710-2700 MHz, including Band 71, to accommodate a wide spectrum of cellular signals.
- Enhanced Connectivity: Ideal for anyone seeking to improve cellular reception in indoor areas such as offices or homes.
- Easy Installation: Designed for straightforward wall mounting, combining ease of installation with a space-saving form factor.
| Specifications | |
| Impedance | 50 ohm |
| Gain (Up/Down) | 8dB |
| Antenna Connector | N-Female |
| Antenna Polarization | Vertical |
| Connector | N-Female |
| Antenna Ground Plane | Built-In Ground Plane |
| Antenna Max Power | 20 watts |
| Antenna VSWR | <2.2:1 <1.6:1 |
| Dimensions | 6.6" x 6.2" x 1.8" |
| Specific Frequencies Supported | 617-698 MHz, 698-806 MHz, 806-960 MHz, 1710 - 1880 MHz, 1850-1990 MHz, 1910-2170 MHz, 2300-2700 MHz |
