Wilson Electronics

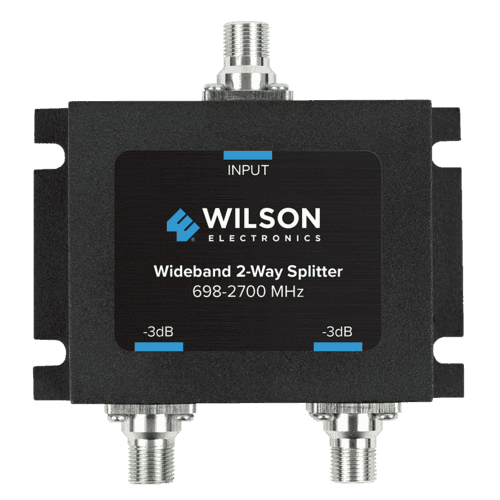

Wilson Electronics 15786234 3dB 2-Way Splitter 698-2700MHz, 75ohm - 2.70 GHz - 698 MHz to 2.70 GHz
Product Code:
15786234
Manufacturer Part Number (MPN):
850034
UPC:
811815028970
Condition:
New
Weight:
0.20 KGS
Width:
9.14
(cm)
Height:
2.03
(cm)
Depth:
8.89
(cm)
$89.99
The Wilson 850034 Two-Way Wide-Band Splitter is a versatile device designed to evenly distribute a single input signal into two outputs. It features F-Female connectors, making it compatible with a wide range of coaxial cables. This splitter is specifically engineered for cellular mobile communication systems, supporting a broad frequency range from 698 to 2700 MHz.
Key Features:
- Broad Frequency Range: Operates within 698-2700 MHz, accommodating most cellular communication bands.
- Optimized for Cellular Communication: Ideal for distributing signals in cellular mobile communication applications.
- Low Insertion Loss and VSWR: Features low insertion loss of 0.4 dB and low VSWR (≤2.0:1), ensuring minimal signal degradation.
- High Isolation: Provides high isolation (≥20 dB) with low ripple, preventing signal interference between outputs.
- Durable Design: Built with a microstrip structure for durability and reliable performance.
- Power Capacity: Can handle up to 50 watts of power, suitable for various signal amplification needs.
| Specifications | |
| Device Type | Splitter |
| Interfaces | F-Female |
| Width | 3.6 Inch |
| Depth | 3.5 Inch |
| Height | 0.8 Inch |
| Model | 850034 |
| Features | 2-way splitter for 75 ohm applications. Broad frequency range covering 6982700 MHz for versatile performance. Optimized signal quality with low VSWR and minimal insertion loss. |
5 customers are viewing this product
Details
The Wilson 850034 Two-Way Wide-Band Splitter is a versatile device designed to evenly distribute a single input signal into two outputs. It features F-Female connectors, making it compatible with a wide range of coaxial cables. This splitter is specifically engineered for cellular mobile communication systems, supporting a broad frequency range from 698 to 2700 MHz.
Key Features:
- Broad Frequency Range: Operates within 698-2700 MHz, accommodating most cellular communication bands.
- Optimized for Cellular Communication: Ideal for distributing signals in cellular mobile communication applications.
- Low Insertion Loss and VSWR: Features low insertion loss of 0.4 dB and low VSWR (≤2.0:1), ensuring minimal signal degradation.
- High Isolation: Provides high isolation (≥20 dB) with low ripple, preventing signal interference between outputs.
- Durable Design: Built with a microstrip structure for durability and reliable performance.
- Power Capacity: Can handle up to 50 watts of power, suitable for various signal amplification needs.
| Specifications | |
| Device Type | Splitter |
| Interfaces | F-Female |
| Width | 3.6 Inch |
| Depth | 3.5 Inch |
| Height | 0.8 Inch |
| Model | 850034 |
| Features | 2-way splitter for 75 ohm applications. Broad frequency range covering 6982700 MHz for versatile performance. Optimized signal quality with low VSWR and minimal insertion loss. |
