Wilson Electronics

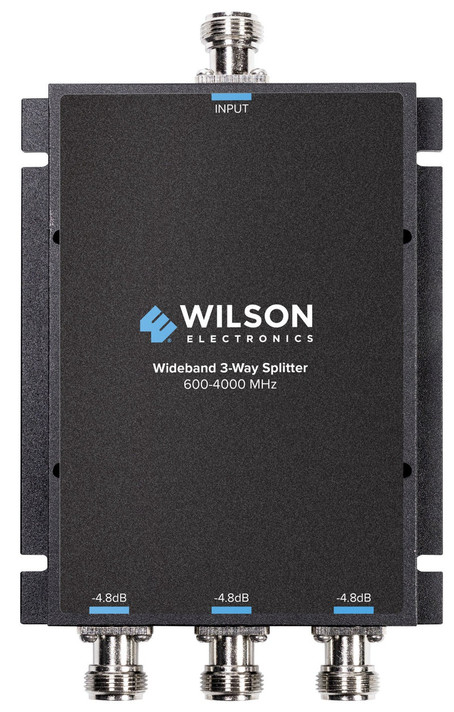

Wilson Electronics 14660694 Splitter 3 Way -4.8 dB 600-4000 MHz w/N Female Connectors
Product Code:
14660694
Manufacturer Part Number (MPN):
859112
Condition:
New
Weight:
0.37 KGS
Width:
9.84
(cm)
Height:
3.49
(cm)
Depth:
15.88
(cm)
$109.99
The Wilson Splitter 3-Way, operating within the frequency band of 600-4000 MHz, is an ideal solution for enhancing signal distribution across a wide spectrum. Its design focuses on minimal signal loss and low Voltage Standing Wave Ratio (VSWR), ensuring that the integrity and strength of your signal are preserved even when split into multiple paths. The IP65 rating of the splitter underscores its durability and resilience. It's designed to withstand harsh environmental conditions without compromising performance.
| Specifications | |
| Model | 859112 |
| Frequency Band (MHz) | 600-4000 |
| Number of Input | 1 |
| Number of Output | 3 |
| Insertion Loss (dB) | 1.2 |
| Isolation | 18 |
| VSWR (average in band) | ≤1.35 |
| Total Input Power (W) | 50 |
| Impedance (Ohm) | 50 |
| Connector | N-Female |
| Temp (deg) | -30~+70 |
| Application | Indoor or Outdoor, IP65 |
5 customers are viewing this product
Details
The Wilson Splitter 3-Way, operating within the frequency band of 600-4000 MHz, is an ideal solution for enhancing signal distribution across a wide spectrum. Its design focuses on minimal signal loss and low Voltage Standing Wave Ratio (VSWR), ensuring that the integrity and strength of your signal are preserved even when split into multiple paths. The IP65 rating of the splitter underscores its durability and resilience. It's designed to withstand harsh environmental conditions without compromising performance.
| Specifications | |
| Model | 859112 |
| Frequency Band (MHz) | 600-4000 |
| Number of Input | 1 |
| Number of Output | 3 |
| Insertion Loss (dB) | 1.2 |
| Isolation | 18 |
| VSWR (average in band) | ≤1.35 |
| Total Input Power (W) | 50 |
| Impedance (Ohm) | 50 |
| Connector | N-Female |
| Temp (deg) | -30~+70 |
| Application | Indoor or Outdoor, IP65 |
Download
| Download Name | |
| Wilson Splitter 3-Way 600-4000 MHz Datasheet | |
