Teltonika Networks

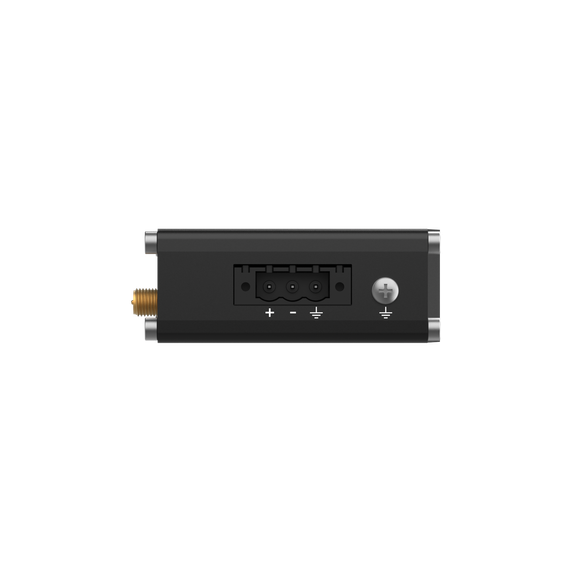

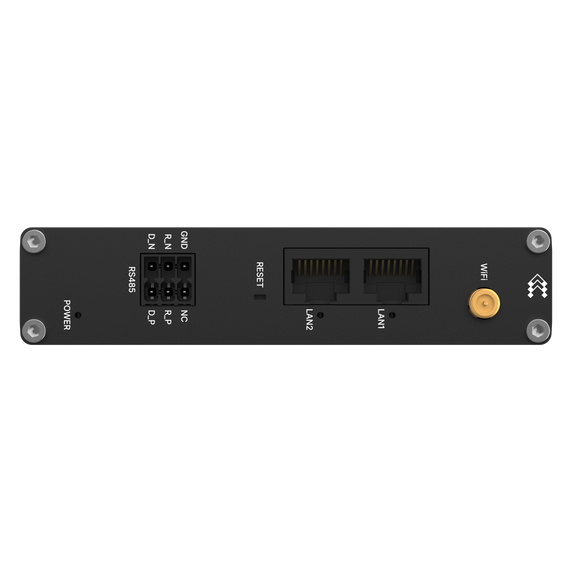

Teltonika Networks 15557352 DAP145 DIN RAIL Access Point with RS485
Product Code:
15557352
Manufacturer Part Number (MPN):
DAP145000000
UPC:
4779051846795
Condition:
New
Weight:
0.26 KGS
Width:
11.31
(cm)
Height:
2.50
(cm)
Depth:
6.86
(cm)
$79.00
The DAP145 is an industrial Wi-Fi access point with RS485 communication engineered for utilities, machine builders, and system integrators. It enables connecting wired industrial devices to modern IP networks without extensive cabling. The device functions as an access point or client (STA/Mesh/Fast roaming) and provides direct serial-to-IP bridging via its native RS485 port. Advanced RutOS tools like Data to Server and industrial protocol support facilitate secure data collection to the cloud, all managed remotely via the RMS platform.
| Specifications | |
| Primary Information | |
| Product Type: | Access Point |
| Form Factor: | DIN-rail |
| Networking Type: | Ethernet |
| Data Transfer Rate: | 100 Mbps |
| Data Link Protocol: | Fast Ethernet |
| Processor / Manufacturer: | MediaTek |
| Processor / Clock Speed: | 580 MHz |
| Connectivity Technology: | Wireless |
| Antenna Connectors: | RP-SMA |
| Antenna Type: | Antenna |
| Model: | DAP145 |
| Networking | |
| Transport Protocol: | Fast Ethernet |
| Networking Compliant Standards: | IEEE 802.11b/g/n |
| Remote Management Protocol: | IPv4; IPv6; HTTP |
| Networking / Ports Qty: | 2 |
| Cellular Technology: | None |
| Cellular Service Provider: | None |
| Cellular Generation: | None |
| Miscellaneous | |
| Interfaces: | 2 x LAN ports 10/100 Mbps |
| Hard Drive: | 16 MB |
| RAM / Total Installed Size: | 128 MB |
| Dimensions&Miscellaneous | |
| Width: | 113.10 Mm |
| Depth: | 68.6 Mm |
| Height: | 25 Mm |
| Power | |
| Power / Device Type: | Power Supply |
| Max Power Consumption: | 2 Watt |
| Power / Voltage Required: | 9-30 VDC |
| Special Feature | |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222631 |
5 customers are viewing this product
Details
The DAP145 is an industrial Wi-Fi access point with RS485 communication engineered for utilities, machine builders, and system integrators. It enables connecting wired industrial devices to modern IP networks without extensive cabling. The device functions as an access point or client (STA/Mesh/Fast roaming) and provides direct serial-to-IP bridging via its native RS485 port. Advanced RutOS tools like Data to Server and industrial protocol support facilitate secure data collection to the cloud, all managed remotely via the RMS platform.
| Specifications | |
| Primary Information | |
| Product Type: | Access Point |
| Form Factor: | DIN-rail |
| Networking Type: | Ethernet |
| Data Transfer Rate: | 100 Mbps |
| Data Link Protocol: | Fast Ethernet |
| Processor / Manufacturer: | MediaTek |
| Processor / Clock Speed: | 580 MHz |
| Connectivity Technology: | Wireless |
| Antenna Connectors: | RP-SMA |
| Antenna Type: | Antenna |
| Model: | DAP145 |
| Networking | |
| Transport Protocol: | Fast Ethernet |
| Networking Compliant Standards: | IEEE 802.11b/g/n |
| Remote Management Protocol: | IPv4; IPv6; HTTP |
| Networking / Ports Qty: | 2 |
| Cellular Technology: | None |
| Cellular Service Provider: | None |
| Cellular Generation: | None |
| Miscellaneous | |
| Interfaces: | 2 x LAN ports 10/100 Mbps |
| Hard Drive: | 16 MB |
| RAM / Total Installed Size: | 128 MB |
| Dimensions&Miscellaneous | |
| Width: | 113.10 Mm |
| Depth: | 68.6 Mm |
| Height: | 25 Mm |
| Power | |
| Power / Device Type: | Power Supply |
| Max Power Consumption: | 2 Watt |
| Power / Voltage Required: | 9-30 VDC |
| Special Feature | |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222631 |
Download
| Download Name | |
| Teltonika Networks DAP145 Datasheet | |
