Teltonika Networks

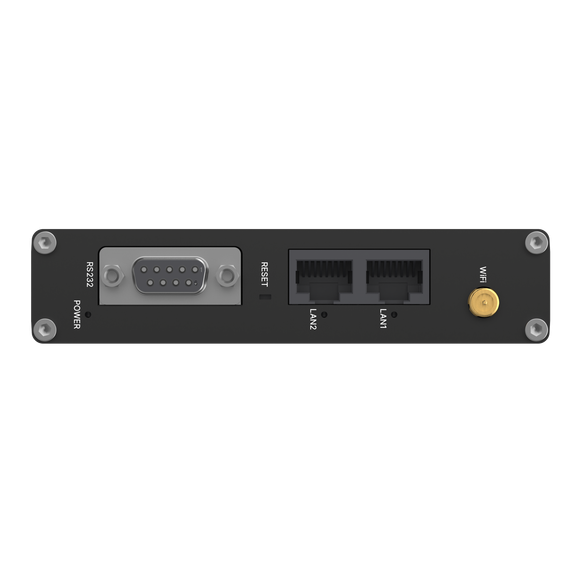

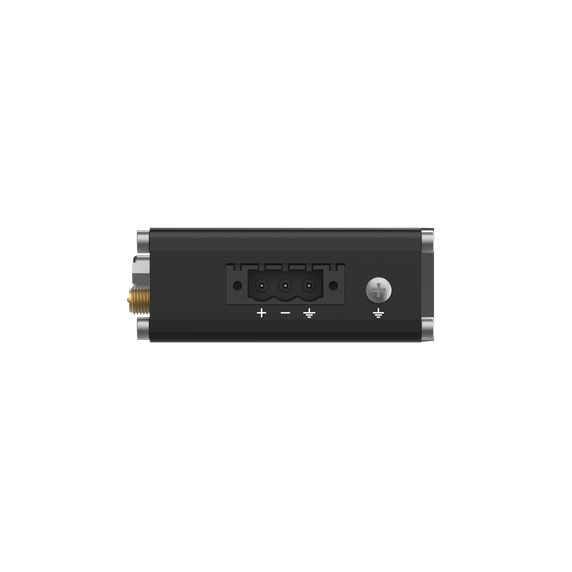

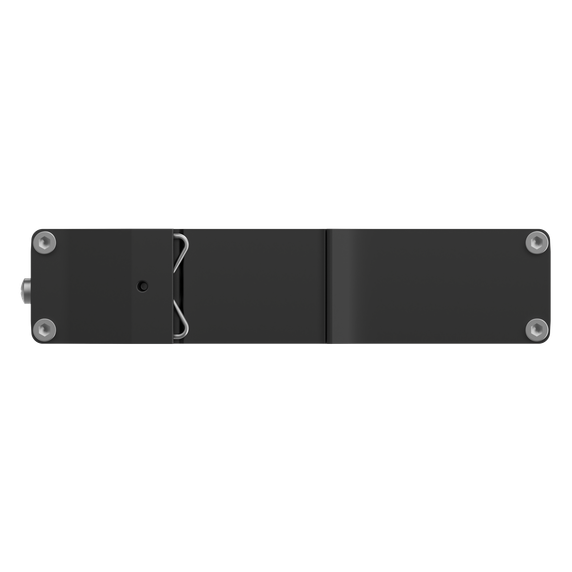

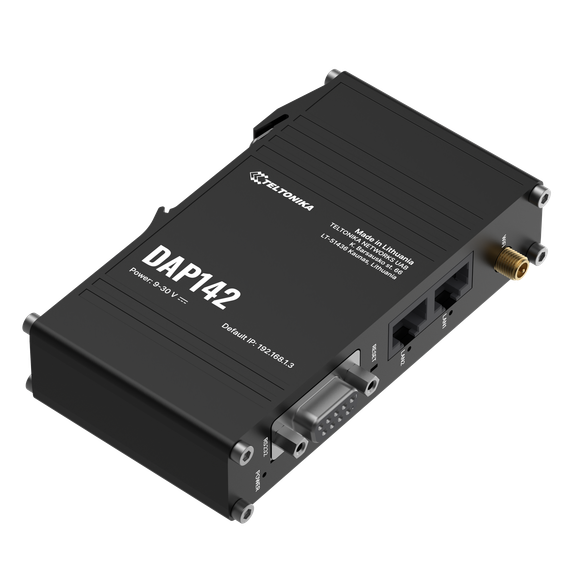

Teltonika Networks 14768160 DAP142 DIN RAIL Access Point with RS232
Product Code:
14768160
Manufacturer Part Number (MPN):
DAP142000000
UPC:
4779051843268
Condition:
New
Weight:
0.25 KGS
Width:
11.31
(cm)
Height:
2.50
(cm)
Depth:
6.86
(cm)
$79.00
The DAP142 is a Teltonika industrial wireless access point with passive PoE, engineered for enhanced and reliable Wi-Fi coverage and performance in industrial environments. This access point is equipped with an RS232 port and two RJ45 ports, and is powered via a 3-pin power connector, making it ideal for specialised industrial applications. In addition to Wi-Fi 4 capabilities, the DAP142 supports Wi-Fi mesh, Fast Roaming, and up to 50 simultaneous connections. With an integrated DIN rail bracket, durable aluminium casing, and plug-and-play functionality, this wireless access point provides simple installation and configuration at minimum effort.
| Specifications | |
| Primary Information | |
| Product Type: | Access point |
| Networking Type: | Ethernet |
| Data Transfer Rate: | 100 Mbps |
| Data Link Protocol: | Gigabit Ethernet |
| Processor / Manufacturer: | MediaTek |
| Processor / Clock Speed: | 580 MHz |
| Connectivity Technology: | Wireless |
| Antenna Connectors: | RP-SMA |
| Antenna Type: | Antenna |
| Model: | DAP142 |
| Networking | |
| Transport Protocol: | Gigabit Ethernet |
| Remote Management Protocol: | IPv4; IPv6; SNMP |
| Networking / Ports Qty: | 2 |
| Cellular Technology: | None |
| Cellular Service Provider: | None |
| Cellular Generation: | None |
| Miscellaneous | |
| Interfaces: | 2 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| RAM / Total Installed Size: | 128 MB |
| Dimensions&Miscellaneous | |
| Width: | 113.1 Mm |
| Depth: | 68.6 Mm |
| Height: | 25 Mm |
| Power | |
| Max Power Consumption: | 2 Watt |
| Power / Voltage Required: | 9-30 VDC |
| Special Feature | |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222631 |
5 customers are viewing this product
Details
The DAP142 is a Teltonika industrial wireless access point with passive PoE, engineered for enhanced and reliable Wi-Fi coverage and performance in industrial environments. This access point is equipped with an RS232 port and two RJ45 ports, and is powered via a 3-pin power connector, making it ideal for specialised industrial applications. In addition to Wi-Fi 4 capabilities, the DAP142 supports Wi-Fi mesh, Fast Roaming, and up to 50 simultaneous connections. With an integrated DIN rail bracket, durable aluminium casing, and plug-and-play functionality, this wireless access point provides simple installation and configuration at minimum effort.
| Specifications | |
| Primary Information | |
| Product Type: | Access point |
| Networking Type: | Ethernet |
| Data Transfer Rate: | 100 Mbps |
| Data Link Protocol: | Gigabit Ethernet |
| Processor / Manufacturer: | MediaTek |
| Processor / Clock Speed: | 580 MHz |
| Connectivity Technology: | Wireless |
| Antenna Connectors: | RP-SMA |
| Antenna Type: | Antenna |
| Model: | DAP142 |
| Networking | |
| Transport Protocol: | Gigabit Ethernet |
| Remote Management Protocol: | IPv4; IPv6; SNMP |
| Networking / Ports Qty: | 2 |
| Cellular Technology: | None |
| Cellular Service Provider: | None |
| Cellular Generation: | None |
| Miscellaneous | |
| Interfaces: | 2 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| RAM / Total Installed Size: | 128 MB |
| Dimensions&Miscellaneous | |
| Width: | 113.1 Mm |
| Depth: | 68.6 Mm |
| Height: | 25 Mm |
| Power | |
| Max Power Consumption: | 2 Watt |
| Power / Voltage Required: | 9-30 VDC |
| Special Feature | |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222631 |
Download
| Download Name | |
| Teltonika Networks DAP142 Datasheet | |
