Teltonika Networks
Teltonika Networks 14768159 DAP140 DIN RAIL Access Point
Product Code:
14768159
Manufacturer Part Number (MPN):
DAP140000000
UPC:
4779051843251
Condition:
New
Weight:
1.00 KGS
Width:
11.31
(cm)
Height:
2.50
(cm)
Depth:
6.86
(cm)
$75.00

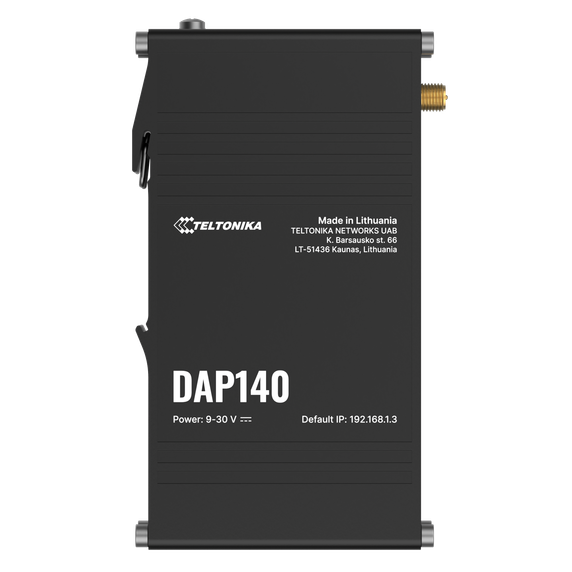

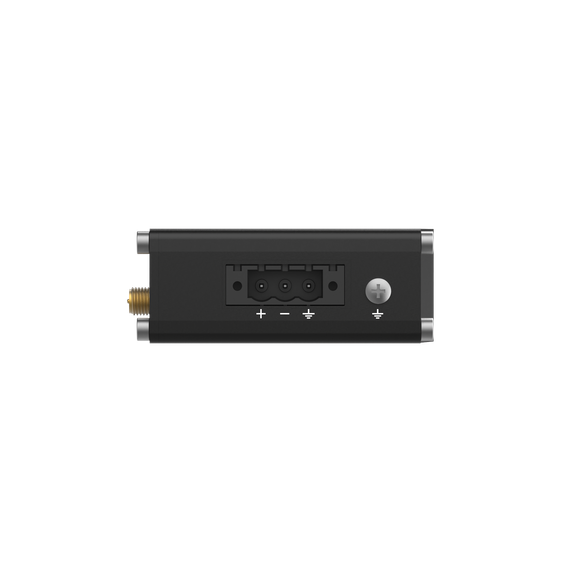

The DAP140 is a Teltonika industrial wireless access point with passive PoE-in, designed to enhance Wi-Fi coverage and performance in industrial environments. Featuring Wi-Fi 4 with Wi-Fi mesh and Fast Roaming, as well as dual RJ45 ports and support of up to 50 simultaneous connections, this wireless access point is integral in maintaining reliable connectivity. An integrated DIN rail bracket, 3-pin power connector, and industrial-grade aluminium housing make the DAP140 the ideal access point for industrial applications.
| Specifications | |
| Primary Information | |
| Product Type: | Access point |
| Networking Type: | Ethernet |
| Data Transfer Rate: | 100 Mbps |
| Data Link Protocol: | Gigabit Ethernet |
| Processor / Manufacturer: | MediaTek |
| Processor / Clock Speed: | 580 MHz |
| Connectivity Technology: | Wireless |
| Antenna Connectors: | RP-SMA |
| Antenna Type: | Antenna |
| Model: | DAP140 |
| Networking | |
| Transport Protocol: | Gigabit Ethernet |
| Remote Management Protocol: | IPv4; IPv6; SNMP |
| Networking / Ports Qty: | 2 |
| Cellular Technology: | None |
| Cellular Service Provider: | None |
| Cellular Generation: | None |
| Miscellaneous | |
| Interfaces: | 2 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| RAM / Total Installed Size: | 128 MB |
| Dimensions&Miscellaneous | |
| Width: | 113.1 Mm |
| Depth: | 68.6 Mm |
| Height: | 25 Mm |
| Power | |
| Max Power Consumption: | 2 Watt |
| Power / Voltage Required: | 9-30 VDC |
| Special Feature | |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222631 |
5 customers are viewing this product
Details
The DAP140 is a Teltonika industrial wireless access point with passive PoE-in, designed to enhance Wi-Fi coverage and performance in industrial environments. Featuring Wi-Fi 4 with Wi-Fi mesh and Fast Roaming, as well as dual RJ45 ports and support of up to 50 simultaneous connections, this wireless access point is integral in maintaining reliable connectivity. An integrated DIN rail bracket, 3-pin power connector, and industrial-grade aluminium housing make the DAP140 the ideal access point for industrial applications.
| Specifications | |
| Primary Information | |
| Product Type: | Access point |
| Networking Type: | Ethernet |
| Data Transfer Rate: | 100 Mbps |
| Data Link Protocol: | Gigabit Ethernet |
| Processor / Manufacturer: | MediaTek |
| Processor / Clock Speed: | 580 MHz |
| Connectivity Technology: | Wireless |
| Antenna Connectors: | RP-SMA |
| Antenna Type: | Antenna |
| Model: | DAP140 |
| Networking | |
| Transport Protocol: | Gigabit Ethernet |
| Remote Management Protocol: | IPv4; IPv6; SNMP |
| Networking / Ports Qty: | 2 |
| Cellular Technology: | None |
| Cellular Service Provider: | None |
| Cellular Generation: | None |
| Miscellaneous | |
| Interfaces: | 2 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| RAM / Total Installed Size: | 128 MB |
| Dimensions&Miscellaneous | |
| Width: | 113.1 Mm |
| Depth: | 68.6 Mm |
| Height: | 25 Mm |
| Power | |
| Max Power Consumption: | 2 Watt |
| Power / Voltage Required: | 9-30 VDC |
| Special Feature | |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222631 |
Download
| Download Name | |
| Teltonika Networks DAP140 Datasheet | |
