Teltonika Networks

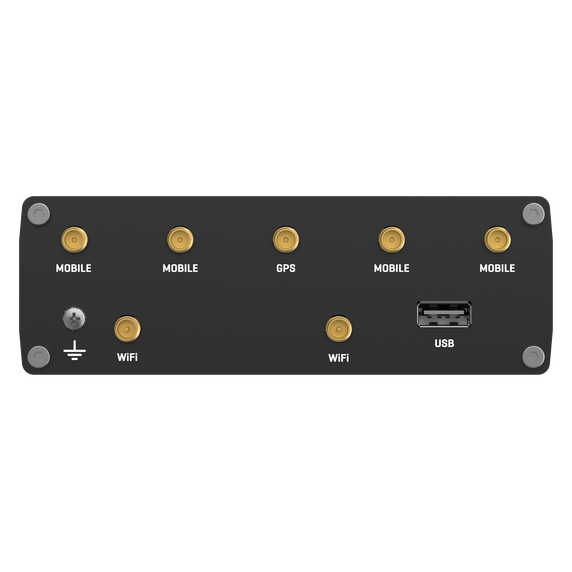

Teltonika Networks 14758041 RUTM50 North America / Standard package with Universal PSU, 5G
Product Code:
14758041
Manufacturer Part Number (MPN):
RUTM50000000
Condition:
New
Weight:
1.05 KGS
Width:
13.21
(cm)
Height:
9.50
(cm)
Depth:
4.42
(cm)
$629.00
RUTM50 is an FCC-certified Teltonika Networks cellular 5G router for North America, with ultra-high cellular speeds of up to 3.4 Gbps. This dual SIM router has auto-failover and backup WAN and supports both SA and NSA 5G architectures. It is also backward compatible with 4G (LTE Cat 19/18), making it perfect for future-proofing your industrial networking solutions.
| Specifications | |
| Primary Information | |
| Network Device Type: | Router |
| Model: | RUTM50 |
| Networking / Ports Qty: | 5 |
| Routing Protocol: | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Processor / Type: | MediaTek |
| RAM / Total Installed Size: | 256 MB |
| Flash Memory / Installed Size: | 16 MB |
| Power Consumption Operational: | <5 Watt |
| Power / Voltage Required: | 9 - 50 VDC |
| Interfaces: | 5 x RJ45 ports, 10/100/1000 Mbps, 1 x Digital Input, 1 x Digital Output on 4-pin power connector, 2 x SIM slots (Mini SIM 2FF), 1.8 V/3 V, 1 x 4-pin power connector, 4 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNNS, 1 x USB A port for external devices, 1 x Grounding screw |
| Antenna Type: | Antenna |
| Temperature Required: | -40 Celsius to 75 Celsius Degrees |
| Humidity Required: | 10% to 90% non-condensing |
| Networking | |
| Connectivity Technology: | Wireless |
| Data Transfer Rate: | 1 Gbps |
| Data Link Protocol: | Gigabit Ethernet |
| Encryption Algorithm: | SSL; WPA2; WPA3; TCP; AES; DES |
| Transport Protocol: | ICMP/IP; UDP/IP; TCP/IP; PPP; NTP; ARP; PPPoE; FTP; SMTP; DNS |
| Status Indicators: | 4 x WAN type, 3 x Mobile connection type, 3 x Mobile connection strength, 10 x Ethernet port status, 1 x Power, 2 x 2.4G and 5G Wi-Fi |
| Remote Management Protocol: | SSH; SNMP; Web |
| Cellular Technology: | Sub6 |
| Cellular Service Provider: | North America |
| Cellular Generation: | 5G |
| VoIP Supported: | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Dimensions&Miscellaneous | |
| Width: | 5.2 Inch |
| Depth: | 1.74 Inch |
| Height: | 3.74 Inch |
| Weight: | 1.14 lbs |
| Special Feature | |
| Min Operating Temperature: | -40 Celsius |
| Max Operating Temperature: | 75 Celsius |
| Humidity Range Operating: | 10% to 90% non-condensing |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222609 |
5 customers are viewing this product
Details
RUTM50 is an FCC-certified Teltonika Networks cellular 5G router for North America, with ultra-high cellular speeds of up to 3.4 Gbps. This dual SIM router has auto-failover and backup WAN and supports both SA and NSA 5G architectures. It is also backward compatible with 4G (LTE Cat 19/18), making it perfect for future-proofing your industrial networking solutions.
| Specifications | |
| Primary Information | |
| Network Device Type: | Router |
| Model: | RUTM50 |
| Networking / Ports Qty: | 5 |
| Routing Protocol: | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Processor / Type: | MediaTek |
| RAM / Total Installed Size: | 256 MB |
| Flash Memory / Installed Size: | 16 MB |
| Power Consumption Operational: | <5 Watt |
| Power / Voltage Required: | 9 - 50 VDC |
| Interfaces: | 5 x RJ45 ports, 10/100/1000 Mbps, 1 x Digital Input, 1 x Digital Output on 4-pin power connector, 2 x SIM slots (Mini SIM 2FF), 1.8 V/3 V, 1 x 4-pin power connector, 4 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNNS, 1 x USB A port for external devices, 1 x Grounding screw |
| Antenna Type: | Antenna |
| Temperature Required: | -40 Celsius to 75 Celsius Degrees |
| Humidity Required: | 10% to 90% non-condensing |
| Networking | |
| Connectivity Technology: | Wireless |
| Data Transfer Rate: | 1 Gbps |
| Data Link Protocol: | Gigabit Ethernet |
| Encryption Algorithm: | SSL; WPA2; WPA3; TCP; AES; DES |
| Transport Protocol: | ICMP/IP; UDP/IP; TCP/IP; PPP; NTP; ARP; PPPoE; FTP; SMTP; DNS |
| Status Indicators: | 4 x WAN type, 3 x Mobile connection type, 3 x Mobile connection strength, 10 x Ethernet port status, 1 x Power, 2 x 2.4G and 5G Wi-Fi |
| Remote Management Protocol: | SSH; SNMP; Web |
| Cellular Technology: | Sub6 |
| Cellular Service Provider: | North America |
| Cellular Generation: | 5G |
| VoIP Supported: | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Dimensions&Miscellaneous | |
| Width: | 5.2 Inch |
| Depth: | 1.74 Inch |
| Height: | 3.74 Inch |
| Weight: | 1.14 lbs |
| Special Feature | |
| Min Operating Temperature: | -40 Celsius |
| Max Operating Temperature: | 75 Celsius |
| Humidity Range Operating: | 10% to 90% non-condensing |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222609 |
Download
| Download Name | |
| Teltonika Networks RUTM50 Datasheet | |
