Teltonika Networks

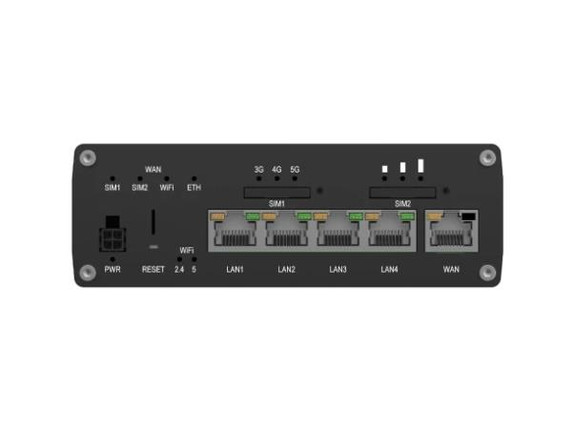

Teltonika Networks 14758042 RUTM54 North America / Standard package with Universal PSU, 5G
Product Code:
14758042
Manufacturer Part Number (MPN):
RUTC54000000
Condition:
New
Weight:
1.13 KGS
Width:
13.20
(cm)
Height:
4.42
(cm)
Depth:
9.50
(cm)
$729.00
The RUTM54 is a high-performance, dual-SIM and eSIM 5G router, ideal for data-intensive applications that demand reliable, high-speed connectivity. With a global Telit 5G modem, the RUTM54 delivers exceptional connectivity and consistent performance. Its 5 Gigabit Ethernet ports and dual-band Wi-Fi provide robust redundancy, while auto-failover ensures uninterrupted service. With backward compatibility to 4G and multiple interface options, the RUTM54 is designed for seamless expandability and future upgrades.
| Specifications | |
| Primary Information | |
| Network Device Type: | Router |
| Model: | RUTM54 |
| Networking / Ports Qty: | 5 |
| Routing Protocol: | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Processor / Type: | MediaTek |
| Processor / Clock Speed: | 880 MHz |
| RAM / Total Installed Size: | 256 MB |
| Flash Memory / Installed Size: | 16 MB |
| Power Consumption Operational: | < 4 Watt |
| Power / Voltage Required: | 9 - 50 VDC |
| Interfaces: | 5 x RJ45 ports, 10/100/1000 Mbps, 1 x Digital Input, 1 x Digital Output on 4-pin power connector, 2 x SIM slots (Mini SIM 2FF), 1.8 V/3 V, 1 x 4-pin power connector, 4 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNNS, 1 x USB A port for external devices, 1 x Grounding screw |
| Antenna Type: | Antenna |
| Humidity Required: | 10% to 90% non-condensing |
| Networking | |
| Connectivity Technology: | Wireless |
| Data Transfer Rate: | 1 Gbps |
| Data Link Protocol: | Gigabit Ethernet |
| Encryption Algorithm: | SSL; WPA2; WPA3; TCP; AES; DES |
| Transport Protocol: | ICMP/IP; UDP/IP; TCP/IP; PPP; NTP; ARP; PPPoE; FTP; SMTP; DNS |
| Status Indicators: | 4 x WAN type, 3 x Mobile connection type, 3 x Mobile connection strength, 10 x Ethernet port status, 1 x Power, 2 x 2.4G and 5G Wi-Fi |
| Remote Management Protocol: | SSH; SNMP; Web |
| Cellular Technology: | Sub6 |
| Cellular Service Provider: | AT&T; T-Mobile |
| Cellular Generation: | 5G |
| VoIP Supported: | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Dimensions&Miscellaneous | |
| Width: | 132 Mm |
| Depth: | 95 Mm |
| Height: | 44.2 Mm |
| Weight: | 530 g |
| Special Feature | |
| Min Operating Temperature: | -40 Celsius |
| Max Operating Temperature: | 75 Celsius |
| Humidity Range Operating: | 10% to 90% non-condensing |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222609 |
5 customers are viewing this product
Details
The RUTM54 is a high-performance, dual-SIM and eSIM 5G router, ideal for data-intensive applications that demand reliable, high-speed connectivity. With a global Telit 5G modem, the RUTM54 delivers exceptional connectivity and consistent performance. Its 5 Gigabit Ethernet ports and dual-band Wi-Fi provide robust redundancy, while auto-failover ensures uninterrupted service. With backward compatibility to 4G and multiple interface options, the RUTM54 is designed for seamless expandability and future upgrades.
| Specifications | |
| Primary Information | |
| Network Device Type: | Router |
| Model: | RUTM54 |
| Networking / Ports Qty: | 5 |
| Routing Protocol: | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Processor / Type: | MediaTek |
| Processor / Clock Speed: | 880 MHz |
| RAM / Total Installed Size: | 256 MB |
| Flash Memory / Installed Size: | 16 MB |
| Power Consumption Operational: | < 4 Watt |
| Power / Voltage Required: | 9 - 50 VDC |
| Interfaces: | 5 x RJ45 ports, 10/100/1000 Mbps, 1 x Digital Input, 1 x Digital Output on 4-pin power connector, 2 x SIM slots (Mini SIM 2FF), 1.8 V/3 V, 1 x 4-pin power connector, 4 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNNS, 1 x USB A port for external devices, 1 x Grounding screw |
| Antenna Type: | Antenna |
| Humidity Required: | 10% to 90% non-condensing |
| Networking | |
| Connectivity Technology: | Wireless |
| Data Transfer Rate: | 1 Gbps |
| Data Link Protocol: | Gigabit Ethernet |
| Encryption Algorithm: | SSL; WPA2; WPA3; TCP; AES; DES |
| Transport Protocol: | ICMP/IP; UDP/IP; TCP/IP; PPP; NTP; ARP; PPPoE; FTP; SMTP; DNS |
| Status Indicators: | 4 x WAN type, 3 x Mobile connection type, 3 x Mobile connection strength, 10 x Ethernet port status, 1 x Power, 2 x 2.4G and 5G Wi-Fi |
| Remote Management Protocol: | SSH; SNMP; Web |
| Cellular Technology: | Sub6 |
| Cellular Service Provider: | AT&T; T-Mobile |
| Cellular Generation: | 5G |
| VoIP Supported: | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Dimensions&Miscellaneous | |
| Width: | 132 Mm |
| Depth: | 95 Mm |
| Height: | 44.2 Mm |
| Weight: | 530 g |
| Special Feature | |
| Min Operating Temperature: | -40 Celsius |
| Max Operating Temperature: | 75 Celsius |
| Humidity Range Operating: | 10% to 90% non-condensing |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222609 |
Download
| Download Name | |
| Teltonika Networks RUTC54 5G EDGE Router Datasheet | |
