Teltonika Networks

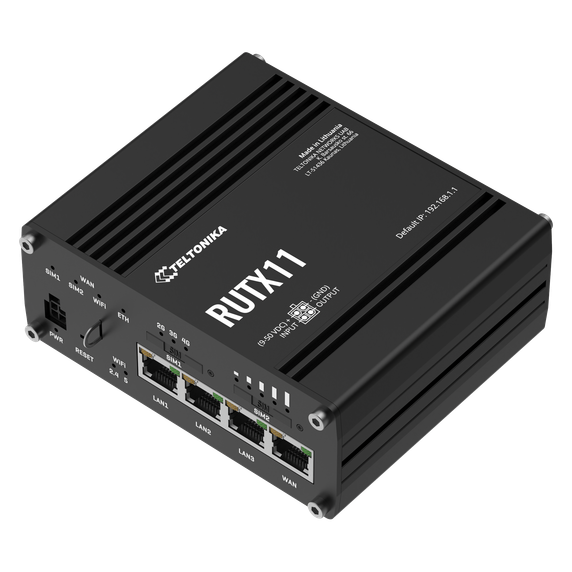

Teltonika Networks 14758040 RUTX11 LTE Cat 6 Router
Product Code:
14758040
Manufacturer Part Number (MPN):
RUTX11300400
UPC:
4779051843114
Condition:
New
Weight:
0.46 KGS
Width:
11.50
(cm)
Height:
4.42
(cm)
Depth:
9.51
(cm)
$419.00
This powerful LTE Cat 6 cellular router is designed for professional applications requiring reliable, fast connection and high data throughput. The RUTX11 is equipped with four Gigabit Ethernet ports, AC Wi-Fi, Bluetooth LE, and is EN 45545-2-certified, making it approved for use in passenger trains across Europe.
| Specifications | |
| Primary Information | |
| Network Device Type: | Router |
| Model: | RUTX11 |
| Networking / Ports Qty: | 4 |
| Routing Protocol: | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Processor / Type: | Quad-Core |
| Processor / Number: | Cortex-A7 |
| Processor / Clock Speed: | 717 MHz |
| RAM / Total Installed Size: | 256 MB |
| Flash Memory / Installed Size: | 256 MB |
| Power Consumption Operational: | 16 Watt |
| Power / Voltage Required: | 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection, 24 - 36 VDC for railway version of the code RUTX11 020G00 |

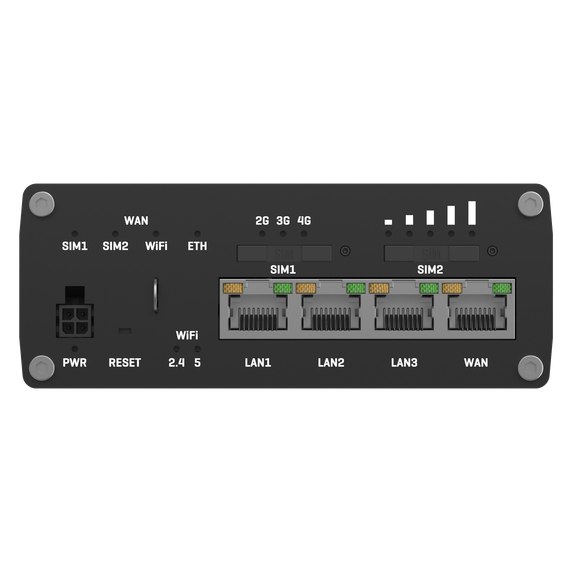

| Interfaces: | 4 x RJ45 ports, 10/100/1000 Mbps, 1 x Digital Input, 1 x Digital Output on 4-pin power connector, 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, 1 x 4-pin power connector, 2 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNSS, 1 x USB A port for external devices, 1 x Grounding screw |
| Antenna Type: | Antenna |
| Humidity Required: | 10% to 90% non-condensing |
| Networking | |
| Connectivity Technology: | Wireless |
| Data Transfer Rate: | 1 Gbps |
| Data Link Protocol: | Gigabit Ethernet |
| Encryption Algorithm: | SSL; WPA2; WPA3; TCP; AES; DES |
| Transport Protocol: | SMTP; UDP/IP; TCP/IP; PPP; NTP; ARP; ICMP/IP; PPPoE; FTP; DNS |
| Status Indicators: | 4 x WAN type LEDs, 2 x Mobile connection type, 5 x Mobile connection strength, 8 x LAN status, 1 x Power, 2 x 2.4G and 5G Wi-Fi |
| Remote Management Protocol: | SSH; SNMP; Web |
| Cellular Technology: | LTE |
| Cellular Service Provider: | AT&T; Verizon; T-Mobile |
| Cellular Generation: | 4G |
| VoIP Supported: | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Dimensions&Miscellaneous | |
| Width: | 115 Mm |
| Depth: | 95.1 Mm |
| Height: | 44.2 Mm |
| Weight: | 456 g |
| Special Feature | |
| Min Operating Temperature: | -40 Celsius |
| Max Operating Temperature: | 75 Celsius |
| Humidity Range Operating: | 10% to 90% non-condensing |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222609 |
5 customers are viewing this product
Details
This powerful LTE Cat 6 cellular router is designed for professional applications requiring reliable, fast connection and high data throughput. The RUTX11 is equipped with four Gigabit Ethernet ports, AC Wi-Fi, Bluetooth LE, and is EN 45545-2-certified, making it approved for use in passenger trains across Europe.
| Specifications | |
| Primary Information | |
| Network Device Type: | Router |
| Model: | RUTX11 |
| Networking / Ports Qty: | 4 |
| Routing Protocol: | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Processor / Type: | Quad-Core |
| Processor / Number: | Cortex-A7 |
| Processor / Clock Speed: | 717 MHz |
| RAM / Total Installed Size: | 256 MB |
| Flash Memory / Installed Size: | 256 MB |
| Power Consumption Operational: | 16 Watt |
| Power / Voltage Required: | 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection, 24 - 36 VDC for railway version of the code RUTX11 020G00 |
| Interfaces: | 4 x RJ45 ports, 10/100/1000 Mbps, 1 x Digital Input, 1 x Digital Output on 4-pin power connector, 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, 1 x 4-pin power connector, 2 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNSS, 1 x USB A port for external devices, 1 x Grounding screw |
| Antenna Type: | Antenna |
| Humidity Required: | 10% to 90% non-condensing |
| Networking | |
| Connectivity Technology: | Wireless |
| Data Transfer Rate: | 1 Gbps |
| Data Link Protocol: | Gigabit Ethernet |
| Encryption Algorithm: | SSL; WPA2; WPA3; TCP; AES; DES |
| Transport Protocol: | SMTP; UDP/IP; TCP/IP; PPP; NTP; ARP; ICMP/IP; PPPoE; FTP; DNS |
| Status Indicators: | 4 x WAN type LEDs, 2 x Mobile connection type, 5 x Mobile connection strength, 8 x LAN status, 1 x Power, 2 x 2.4G and 5G Wi-Fi |
| Remote Management Protocol: | SSH; SNMP; Web |
| Cellular Technology: | LTE |
| Cellular Service Provider: | AT&T; Verizon; T-Mobile |
| Cellular Generation: | 4G |
| VoIP Supported: | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Dimensions&Miscellaneous | |
| Width: | 115 Mm |
| Depth: | 95.1 Mm |
| Height: | 44.2 Mm |
| Weight: | 456 g |
| Special Feature | |
| Min Operating Temperature: | -40 Celsius |
| Max Operating Temperature: | 75 Celsius |
| Humidity Range Operating: | 10% to 90% non-condensing |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222609 |
Download
| Download Name | |
| Teltonika Networks RUTX11 Datasheet | |
