Teltonika Networks

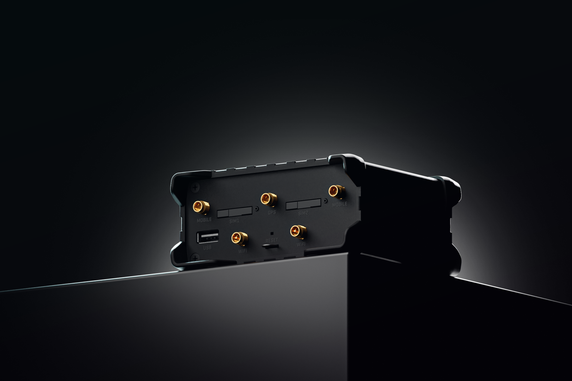

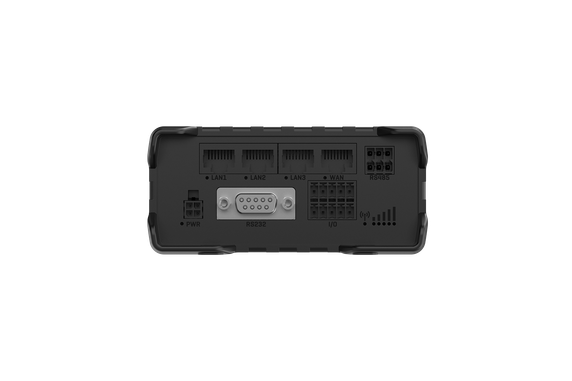

Teltonika Networks 14758038 RUT956 LTE Cat 4 Router
Product Code:
14758038
Manufacturer Part Number (MPN):
RUT956A00A00
UPC:
4779051840175
Condition:
New
Weight:
0.29 KGS
Width:
11.00
(cm)
Height:
5.00
(cm)
Depth:
10.00
(cm)
$344.00
RUT956 is an industrial router that combines cellular, Wi-Fi, and wired connectivity options with automatic WAN failover and GNSS capabilities. Serial communication interfaces enable integrating more varied devices into the solution ecosystem, while I/O and advanced RutOS software facilitate equipment control, automation, and event notifications.
| Specifications | |
| Primary Information | |
| Network Device Type: | Router |
| Model: | RUT956 |
| Networking / Ports Qty: | 4 |
| Routing Protocol: | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Processor / Type: | MediaTek |
| Processor / Clock Speed: | 580 MHz |
| RAM / Total Installed Size: | 128 MB |
| Flash Memory / Installed Size: | 16 MB |
| Power Consumption Operational: | < 2 Watt |
| Power / Voltage Required: | 9 - 30 VDC |
| Interfaces: | 4 x RJ45 ports, 10/100 Mbps, 2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector (available from HW revision 1600), 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional - different hardware required; contact your sales manager), 1 x 4-pin power connector, 1 x 10-pin industrial socket for inputs/outputs, 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS, 1 x USB A port for external devices, 1 x DB9 socket, 1 x 6-pin industrial socket |
| Antenna Type: | Antenna |
| Humidity Required: | 10% to 90% non-condensing |
| Networking | |
| Connectivity Technology: | Wireless |
| Data Transfer Rate: | 100 Mbps |
| Data Link Protocol: | Fast Ethernet |
| Encryption Algorithm: | DES; AES; TCP; WPA3; SSL; WPA2 |
| Transport Protocol: | NTP; UDP/IP; TCP/IP; PPP; ARP; PPPoE; FTP; SMTP; DNS |
| Status Indicators: | 1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power |
| Remote Management Protocol: | SSH; SNMP; Web |
| Cellular Technology: | LTE |
| Cellular Service Provider: | AT&T; Verizon; T-Mobile |
| Cellular Generation: | 4G |
| VoIP Supported: | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Dimensions&Miscellaneous | |
| Width: | 110 Mm |
| Depth: | 100 Mm |
| Height: | 50 Mm |
| Weight: | 287 g |
| Special Feature | |
| Min Operating Temperature: | -40 Celsius |
| Max Operating Temperature: | 75 Celsius |
| Humidity Range Operating: | 10% to 90% non-condensing |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222609 |
5 customers are viewing this product
Details
RUT956 is an industrial router that combines cellular, Wi-Fi, and wired connectivity options with automatic WAN failover and GNSS capabilities. Serial communication interfaces enable integrating more varied devices into the solution ecosystem, while I/O and advanced RutOS software facilitate equipment control, automation, and event notifications.
| Specifications | |
| Primary Information | |
| Network Device Type: | Router |
| Model: | RUT956 |
| Networking / Ports Qty: | 4 |
| Routing Protocol: | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Processor / Type: | MediaTek |
| Processor / Clock Speed: | 580 MHz |
| RAM / Total Installed Size: | 128 MB |
| Flash Memory / Installed Size: | 16 MB |
| Power Consumption Operational: | < 2 Watt |
| Power / Voltage Required: | 9 - 30 VDC |
| Interfaces: | 4 x RJ45 ports, 10/100 Mbps, 2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector (available from HW revision 1600), 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional - different hardware required; contact your sales manager), 1 x 4-pin power connector, 1 x 10-pin industrial socket for inputs/outputs, 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS, 1 x USB A port for external devices, 1 x DB9 socket, 1 x 6-pin industrial socket |
| Antenna Type: | Antenna |
| Humidity Required: | 10% to 90% non-condensing |
| Networking | |
| Connectivity Technology: | Wireless |
| Data Transfer Rate: | 100 Mbps |
| Data Link Protocol: | Fast Ethernet |
| Encryption Algorithm: | DES; AES; TCP; WPA3; SSL; WPA2 |
| Transport Protocol: | NTP; UDP/IP; TCP/IP; PPP; ARP; PPPoE; FTP; SMTP; DNS |
| Status Indicators: | 1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power |
| Remote Management Protocol: | SSH; SNMP; Web |
| Cellular Technology: | LTE |
| Cellular Service Provider: | AT&T; Verizon; T-Mobile |
| Cellular Generation: | 4G |
| VoIP Supported: | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Dimensions&Miscellaneous | |
| Width: | 110 Mm |
| Depth: | 100 Mm |
| Height: | 50 Mm |
| Weight: | 287 g |
| Special Feature | |
| Min Operating Temperature: | -40 Celsius |
| Max Operating Temperature: | 75 Celsius |
| Humidity Range Operating: | 10% to 90% non-condensing |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222609 |
Download
| Download Name | |
| Teltonika Networks RUT956 Datasheet | |
