Zoom the image with the mouse
Teltonika Networks

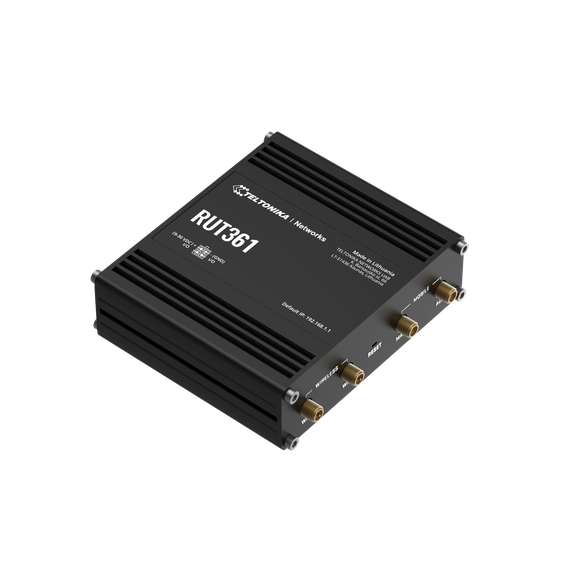

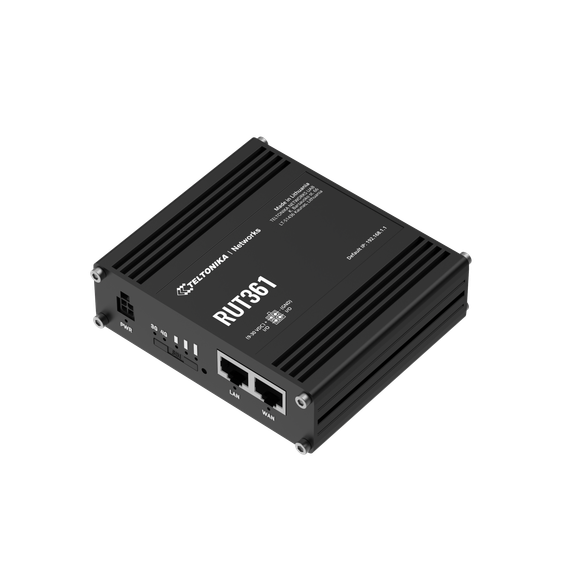

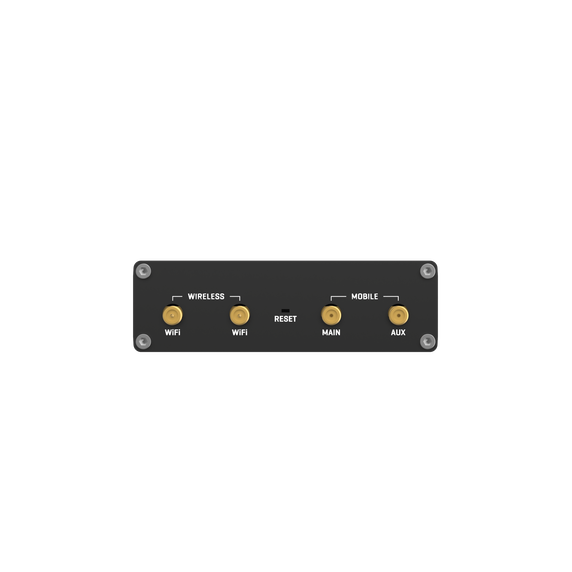

Teltonika Networks 14758036 RUT361 LTE CAT 6 Router
Product Code:
14758036
Manufacturer Part Number (MPN):
RUT361200800
UPC:
4779051843213
Condition:
New
Weight:
0.25 KGS
Width:
10.00
(cm)
Height:
3.00
(cm)
Depth:
8.50
(cm)
$289.00
The RUT361 is a robust cellular router with speeds of up to 300 Mbps with carrier aggregation, vital for IoT solutions demanding uninterrupted networks in challenging environments. Remote monitoring, advanced security features, and WAN failover make this LTE Cat 6 router feature-rich, and two Wi-Fi antennas ensure greater device applicability in diverse M2M applications.
| Specifications | |
| Primary Information | |
| Network Device Type: | Router |
| Model: | RUT361 |
| Networking / Ports Qty: | 2 |
| Routing Protocol: | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Processor / Type: | MediaTek |
| Processor / Clock Speed: | 580 MHz |
| RAM / Total Installed Size: | 128 MB |
| Flash Memory / Installed Size: | 16 MB |
| Power Consumption Operational: | < 2.4 Watt |
| Power / Voltage Required: | 9 - 30 VDC |
| Interfaces: | 2 x RJ45 ports, 10/100 Mbps, 2 x Configurable I/O pins on 4-pin power connector, 1 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V, external SIM holder, 1 x 4-pin power connector, 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi |
| Antenna Type: | Antenna |
| Humidity Required: | 10% to 90% non-condensing |
| Networking | |
| Connectivity Technology: | Wireless |
| Data Transfer Rate: | 100 Mbps |
| Data Link Protocol: | Fast Ethernet |
| Transport Protocol: | SMTP; UDP/IP; TCP/IP; PPP; NTP; ICMP/IP; PPPoE; FTP; DNS; ARP |
| Status Indicators: | 2 x Mobile connection type, 3 x Mobile connection strength, 2 x Eth status, 1 x Power |
| Remote Management Protocol: | SNMP; SSH; Web |
| Cellular Technology: | LTE |
| Cellular Generation: | 4G |
| VoIP Supported: | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Dimensions&Miscellaneous | |
| Width: | 100 Mm |
| Depth: | 85 Mm |
| Height: | 30 Mm |
| Weight: | 243 g |
| Special Feature | |
| Min Operating Temperature: | -40 Celsius |
| Max Operating Temperature: | 75 Celsius |
| Humidity Range Operating: | 10% to 90% non-condensing |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222609 |
5 customers are viewing this product
Details
The RUT361 is a robust cellular router with speeds of up to 300 Mbps with carrier aggregation, vital for IoT solutions demanding uninterrupted networks in challenging environments. Remote monitoring, advanced security features, and WAN failover make this LTE Cat 6 router feature-rich, and two Wi-Fi antennas ensure greater device applicability in diverse M2M applications.
| Specifications | |
| Primary Information | |
| Network Device Type: | Router |
| Model: | RUT361 |
| Networking / Ports Qty: | 2 |
| Routing Protocol: | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Processor / Type: | MediaTek |
| Processor / Clock Speed: | 580 MHz |
| RAM / Total Installed Size: | 128 MB |
| Flash Memory / Installed Size: | 16 MB |
| Power Consumption Operational: | < 2.4 Watt |
| Power / Voltage Required: | 9 - 30 VDC |
| Interfaces: | 2 x RJ45 ports, 10/100 Mbps, 2 x Configurable I/O pins on 4-pin power connector, 1 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V, external SIM holder, 1 x 4-pin power connector, 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi |
| Antenna Type: | Antenna |
| Humidity Required: | 10% to 90% non-condensing |
| Networking | |
| Connectivity Technology: | Wireless |
| Data Transfer Rate: | 100 Mbps |
| Data Link Protocol: | Fast Ethernet |
| Transport Protocol: | SMTP; UDP/IP; TCP/IP; PPP; NTP; ICMP/IP; PPPoE; FTP; DNS; ARP |
| Status Indicators: | 2 x Mobile connection type, 3 x Mobile connection strength, 2 x Eth status, 1 x Power |
| Remote Management Protocol: | SNMP; SSH; Web |
| Cellular Technology: | LTE |
| Cellular Generation: | 4G |
| VoIP Supported: | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Dimensions&Miscellaneous | |
| Width: | 100 Mm |
| Depth: | 85 Mm |
| Height: | 30 Mm |
| Weight: | 243 g |
| Special Feature | |
| Min Operating Temperature: | -40 Celsius |
| Max Operating Temperature: | 75 Celsius |
| Humidity Range Operating: | 10% to 90% non-condensing |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222609 |
Download
| Download Name | |
| Teltonika Networks RUT361 Datasheet | |
