Scanstrut

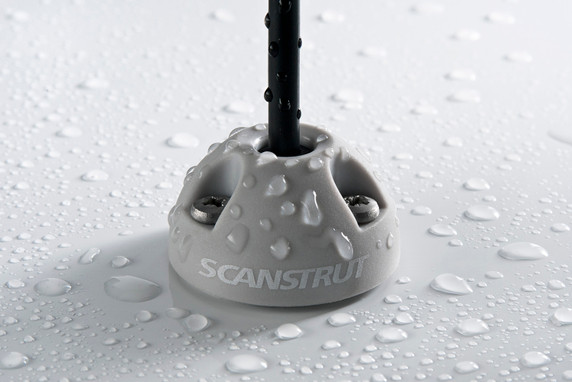

Scanstrut DS6-P Vertical Cable Seal
Product Code:
DS6-P || DS6-P-BLK
Condition:
New
Weight:
0.10 KGS
Width:
8.99
(cm)
Height:
21.01
(cm)
Depth:
3.00
(cm)
$23.99
Our most compact vertical entry cable seal is designed for cables from 2-6mm (0.08"-0.24"). The aesthetic dome-shaped profile provides a stronger, impact-resistant design, and captive nuts in the base make for an easy assembly.
Multi-Functional Dome Shape
The aesthetic dome-shaped profile provides a stronger, impact-resistant, and additional water shield.
Watertight Installation
The tapered bung is supplied with a closed base seal, to form a watertight seal, ensuring an IP68-rated watertight seal.
Easy and Reliable Installation
Captive nuts make for easy assembly and also allow reliable repeat installations. Each unit is supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.
Key Features
- IP68 waterproof rated
- Made from premium marine-grade UV-stable materials
- Includes 316 stainless steel fixings and a waterproof 3M gasket
- Captive nuts ensure an easy and reliable repeat installation
- No messy sealant on bungs
- Fully customizable with self-drill bung options
| TECHNICAL SPECIFICATIONS | |
| Material | High Impact Plastic |
| Height | 19mm (0.75") |
| Colour | Grey / Black |
| Diameter of Cable Seal | 30mm (1.18") |
| Diameter of Cable | 2-6mm (0.08 - 0.24") |
| Bungs | 1 x 2mm (0.08") / 1 x 3mm (0.12") / 1 x 4mm (0.16") / 1 x 5mm (0.20") / 1 x 6mm (0.24") / 1 x Self drill |
5 customers are viewing this product
Details
Our most compact vertical entry cable seal is designed for cables from 2-6mm (0.08"-0.24"). The aesthetic dome-shaped profile provides a stronger, impact-resistant design, and captive nuts in the base make for an easy assembly.
Multi-Functional Dome Shape
The aesthetic dome-shaped profile provides a stronger, impact-resistant, and additional water shield.
Watertight Installation
The tapered bung is supplied with a closed base seal, to form a watertight seal, ensuring an IP68-rated watertight seal.
Easy and Reliable Installation
Captive nuts make for easy assembly and also allow reliable repeat installations. Each unit is supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.
Key Features
- IP68 waterproof rated
- Made from premium marine-grade UV-stable materials
- Includes 316 stainless steel fixings and a waterproof 3M gasket
- Captive nuts ensure an easy and reliable repeat installation
- No messy sealant on bungs
- Fully customizable with self-drill bung options
| TECHNICAL SPECIFICATIONS | |
| Material | High Impact Plastic |
| Height | 19mm (0.75") |
| Colour | Grey / Black |
| Diameter of Cable Seal | 30mm (1.18") |
| Diameter of Cable | 2-6mm (0.08 - 0.24") |
| Bungs | 1 x 2mm (0.08") / 1 x 3mm (0.12") / 1 x 4mm (0.16") / 1 x 5mm (0.20") / 1 x 6mm (0.24") / 1 x Self drill |
