Scanstrut

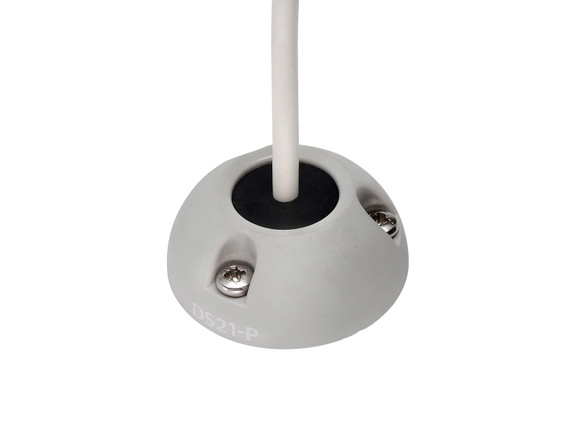

Scanstrut DS21B-P Vertical Cable Seal
Product Code:
DS21B-P || DS21B-P-BLK
Condition:
New
Weight:
0.10 KGS
Width:
8.99
(cm)
Height:
21.01
(cm)
Depth:
3.00
(cm)
$41.99
Designed for cables from 9-14mm (0.16"-0.35") and connectors up to Ø21mm (0.83"). The aesthetic dome-shaped profile provides a stronger, impact-resistant design, and captive nuts in the base make assembly easy.
Multi-Functional Dome Shape
The aesthetic dome-shaped profile provides a stronger, impact-resistant, and additional water shield.
Watertight Installation
The tapered bung is supplied with a closed base seal, to form a watertight seal, ensuring an IP68-rated watertight seal.
Easy and Reliable Installation
Captive nuts make for easy assembly and also allow reliable repeat installations. Each unit is supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.
Split Bungs
The split-seal option makes installation even easier, as it does not require connectors up to Ø21mm (0.82") to be removed during installation.
Key Features
- IP68 waterproof rated
- Made from premium marine-grade UV-stable materials
- Includes 316 stainless steel fixings and a waterproof 3M gasket
- Captive nuts ensure an easy and reliable repeat installation
- No messy sealant on bungs
- Split bungs for ease of installation
- Install connectors up to Ø21mm (0.82") in diameter
- Fully customizable with self-drill bung options
| TECHNICAL SPECIFICATIONS | |
| Material | High Impact Plastic |
| Height | 20.5mm (0.81") |
| Colour | Grey / Black |
| Diameter of Cable Seal | 49mm (1.93") |
| Diameter of Cable | 9 - 14mm (0.35 - 0.55") |
| Bungs | 1 x 9mm (0.35") / 1 x 11mm (0.43") / 1 x 13mm (0.51") / 1 x Self drill |
5 customers are viewing this product
Details
Designed for cables from 9-14mm (0.16"-0.35") and connectors up to Ø21mm (0.83"). The aesthetic dome-shaped profile provides a stronger, impact-resistant design, and captive nuts in the base make assembly easy.
Multi-Functional Dome Shape
The aesthetic dome-shaped profile provides a stronger, impact-resistant, and additional water shield.
Watertight Installation
The tapered bung is supplied with a closed base seal, to form a watertight seal, ensuring an IP68-rated watertight seal.
Easy and Reliable Installation
Captive nuts make for easy assembly and also allow reliable repeat installations. Each unit is supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.
Split Bungs
The split-seal option makes installation even easier, as it does not require connectors up to Ø21mm (0.82") to be removed during installation.
Key Features
- IP68 waterproof rated
- Made from premium marine-grade UV-stable materials
- Includes 316 stainless steel fixings and a waterproof 3M gasket
- Captive nuts ensure an easy and reliable repeat installation
- No messy sealant on bungs
- Split bungs for ease of installation
- Install connectors up to Ø21mm (0.82") in diameter
- Fully customizable with self-drill bung options
| TECHNICAL SPECIFICATIONS | |
| Material | High Impact Plastic |
| Height | 20.5mm (0.81") |
| Colour | Grey / Black |
| Diameter of Cable Seal | 49mm (1.93") |
| Diameter of Cable | 9 - 14mm (0.35 - 0.55") |
| Bungs | 1 x 9mm (0.35") / 1 x 11mm (0.43") / 1 x 13mm (0.51") / 1 x Self drill |
