Zoom the image with the mouse
Scanstrut

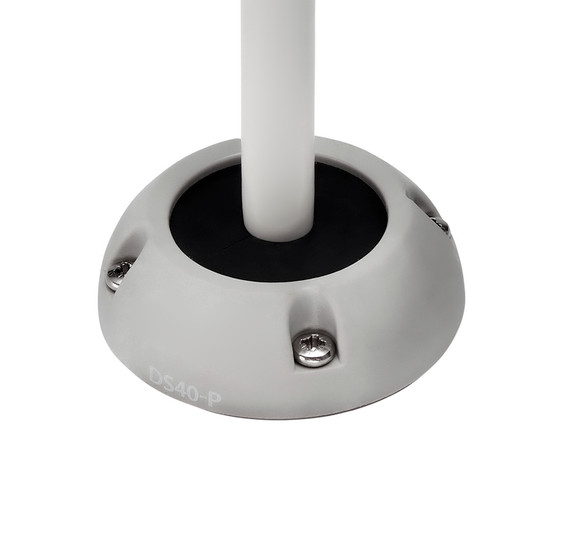

Scanstrut DS40-P Vertical Cable Seal
Product Code:
DS40-P || DS40-P-BLK
Condition:
New
Weight:
0.15 KGS
Width:
8.99
(cm)
Height:
21.01
(cm)
Depth:
3.00
(cm)
$50.99
Our largest IP68 vertical entry cable seal accommodates sizes from 12-15mm (0.47"-0.59") and connectors up to Ø40mm (1.57"). The aesthetically pleasing dome-shaped profile provides a stronger, impact-resistant design, while captive nuts in the base make assembly easy.
Multi-Functional Dome Shape
The aesthetic dome-shaped profile provides a stronger, impact-resistant, and additional water shield.
Watertight Installation
The tapered bung is supplied with a closed base seal, to form a watertight seal, ensuring an IP68-rated watertight seal.
Easy and Reliable Installation
Captive nuts make for easy assembly and also allow reliable repeat installations. Each unit is supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.
Split Bungs
The split-seal option makes installation even easier, as it does not require connectors up to Ø40mm (1.57"). to be removed during installation.
Key Features
- IP68 waterproof rated
- Made from premium marine-grade UV-stable materials
- Includes 316 stainless steel fixings and a waterproof 3M gasket
- Captive nuts ensure an easy and reliable repeat installation
- No messy sealant on bungs
- Split bungs for ease of installation
- Install connectors up to Ø40mm (1.57") in diameter
- Fully customizable with self-drill bung options
| TECHNICAL SPECIFICATIONS | |
| Material | High Impact Plastic |
| Height | 21.7mm (0.85") |
| Colour | Grey / Black |
| Diameter of Cable Seal | 69mm (2.72") |
| Diameter of Cable | 12 - 15mm (0.4 - 0.59") |
| Bungs | 1 x 12mm (0.46") / 1 x Self drill |
5 customers are viewing this product
Details
Our largest IP68 vertical entry cable seal accommodates sizes from 12-15mm (0.47"-0.59") and connectors up to Ø40mm (1.57"). The aesthetically pleasing dome-shaped profile provides a stronger, impact-resistant design, while captive nuts in the base make assembly easy.
Multi-Functional Dome Shape
The aesthetic dome-shaped profile provides a stronger, impact-resistant, and additional water shield.
Watertight Installation
The tapered bung is supplied with a closed base seal, to form a watertight seal, ensuring an IP68-rated watertight seal.
Easy and Reliable Installation
Captive nuts make for easy assembly and also allow reliable repeat installations. Each unit is supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.
Split Bungs
The split-seal option makes installation even easier, as it does not require connectors up to Ø40mm (1.57"). to be removed during installation.
Key Features
- IP68 waterproof rated
- Made from premium marine-grade UV-stable materials
- Includes 316 stainless steel fixings and a waterproof 3M gasket
- Captive nuts ensure an easy and reliable repeat installation
- No messy sealant on bungs
- Split bungs for ease of installation
- Install connectors up to Ø40mm (1.57") in diameter
- Fully customizable with self-drill bung options
| TECHNICAL SPECIFICATIONS | |
| Material | High Impact Plastic |
| Height | 21.7mm (0.85") |
| Colour | Grey / Black |
| Diameter of Cable Seal | 69mm (2.72") |
| Diameter of Cable | 12 - 15mm (0.4 - 0.59") |
| Bungs | 1 x 12mm (0.46") / 1 x Self drill |
