RF-Design

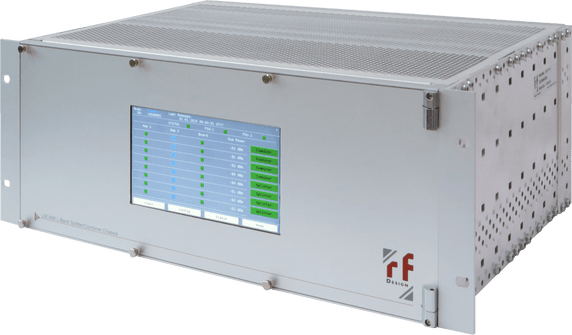

RF-Design LSC Series Modular 8-way L-Band Splitter/Combiner System with 1:1 Amplifier
Condition:
New
Availability:
YES
Weight:
15.00 KGS
Width:
48.26
(cm)
Height:
17.80
(cm)
Depth:
50.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
The LSC series represents a high quality modular L-Band splitter/combiner system suited for versatile RF distribution applications where accurate RF power, high stability and availability is necessary. The system combines the LSC102 (dual splitter/combiner chassis) and the LSC408 (octal splitter/combiner chassis) together with the corresponding 1:8 splitter module (LSM2150-8) and the 8:1 combiner (LCM2150-8) module, each coming with built in 1:1 redundant adjustable amplifier.
The LSC102 chassis has 2 slots for population of max. two 8-way L-Band splitter and/or combiner modules while the LSC408 has 8 slots for insertion of max. eight 8-way splitter/combiner modules.
The LSC series with its flexibility, beneficial features and outstanding RF performance certainly is a perfect fit for any RF distribution infrastructure and perfectly suited for applications in Satellite Earth-Stations, Teleports as well as Broadcast infrastructures.
Features & Benefits
-
19″ chassis with 2 or 8 splitter/combiner slots
-
Supports mixed population
-
Integrated cascading ports
-
Monitoring ports 0dB
-
Hot-swappable splitters/combiners
-
1:1 redundant amplifiers
-
Variable gain control
-
RF power monitoring
-
Threshold monitoring/alarming
-
Local and remote configuration
-
Permanent status monitoring
-
1:1 redundant dual power supply
5 customers are viewing this product
Details
The LSC series represents a high quality modular L-Band splitter/combiner system suited for versatile RF distribution applications where accurate RF power, high stability and availability is necessary. The system combines the LSC102 (dual splitter/combiner chassis) and the LSC408 (octal splitter/combiner chassis) together with the corresponding 1:8 splitter module (LSM2150-8) and the 8:1 combiner (LCM2150-8) module, each coming with built in 1:1 redundant adjustable amplifier.
The LSC102 chassis has 2 slots for population of max. two 8-way L-Band splitter and/or combiner modules while the LSC408 has 8 slots for insertion of max. eight 8-way splitter/combiner modules.
The LSC series with its flexibility, beneficial features and outstanding RF performance certainly is a perfect fit for any RF distribution infrastructure and perfectly suited for applications in Satellite Earth-Stations, Teleports as well as Broadcast infrastructures.
Features & Benefits
-
19″ chassis with 2 or 8 splitter/combiner slots
-
Supports mixed population
-
Integrated cascading ports
-
Monitoring ports 0dB
-
Hot-swappable splitters/combiners
-
1:1 redundant amplifiers
-
Variable gain control
-
RF power monitoring
-
Threshold monitoring/alarming
-
Local and remote configuration
-
Permanent status monitoring
-
1:1 redundant dual power supply
