RF-Design

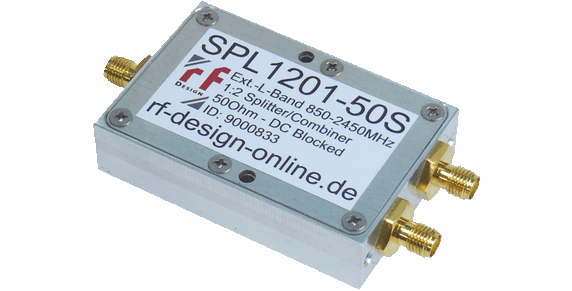

RF-Design SPL Series Extended L-Band 2-way passive Splitter/Combiner
Condition:
New
Availability:
YES
Weight:
2.00 KGS
Width:
48.26
(cm)
Height:
4.40
(cm)
Depth:
30.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
The 2-way Splitter/Combiner SPL1201 from our SPL Series is a high quality passive L-Band Splitter/Combiner module housed into a robust and compact aluminium enclosure. It can be used for standalone operation but also can be integrated into a corresponding 19″ rack mount panel for installation into a 19″ cabinet. It operates at the extended L-Band frequency-range (850 – 2450MHz) ready for KA-Band and HTS applications and is available with 50Ohm SMA(f)/BNC(f) or 75Ohm F(f)/BNC(f) connectors. This passive Splitter/Combiner features high quality, excellent RF performance and is perfectly suited for Satellite-, Broadcast and Broadband RF distribution infrastructures such as for Teleports, Earth-Stations or Cable/IPTV headend operations.
Features & Benefits
-
Compact and robust aluminium enclosure
-
Extended L-Band (850 – 2450MHz) ready for KA-Band & HTS applications
-
High quality 2-way passive Splitter/Combiner
-
Available with 50Ohm SMA/BNC or 75Ohm F/BNC connectors
-
Professional & high quality PCB design
-
Excellent RF performance, quality and reliability
-
Standard variants with 10 MHz-block & DC-block (all ports)
-
10 MHz-pass & DC-pass (all ports) *upon request
-
Standalone or for 19″ rack mount installation
-
1RU/19″ rack mount panel available
5 customers are viewing this product
Details
The 2-way Splitter/Combiner SPL1201 from our SPL Series is a high quality passive L-Band Splitter/Combiner module housed into a robust and compact aluminium enclosure. It can be used for standalone operation but also can be integrated into a corresponding 19″ rack mount panel for installation into a 19″ cabinet. It operates at the extended L-Band frequency-range (850 – 2450MHz) ready for KA-Band and HTS applications and is available with 50Ohm SMA(f)/BNC(f) or 75Ohm F(f)/BNC(f) connectors. This passive Splitter/Combiner features high quality, excellent RF performance and is perfectly suited for Satellite-, Broadcast and Broadband RF distribution infrastructures such as for Teleports, Earth-Stations or Cable/IPTV headend operations.
Features & Benefits
-
Compact and robust aluminium enclosure
-
Extended L-Band (850 – 2450MHz) ready for KA-Band & HTS applications
-
High quality 2-way passive Splitter/Combiner
-
Available with 50Ohm SMA/BNC or 75Ohm F/BNC connectors
-
Professional & high quality PCB design
-
Excellent RF performance, quality and reliability
-
Standard variants with 10 MHz-block & DC-block (all ports)
-
10 MHz-pass & DC-pass (all ports) *upon request
-
Standalone or for 19″ rack mount installation
-
1RU/19″ rack mount panel available
