RF-Design
RF-Design EcoLine FiberLink S and C Band
Product Code:
9001365
Condition:
New
Weight:
4.00 KGS
Width:
48.30
(cm)
Height:
44.50
(cm)
Depth:
26.00
(cm)
Data Sheet:
https://rf-design-online.de/wp-content/uploads/2025/09/RF-Design_Datasheet_Ecoline_FiberLink_10GHz_V1-0rm.pdf
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394

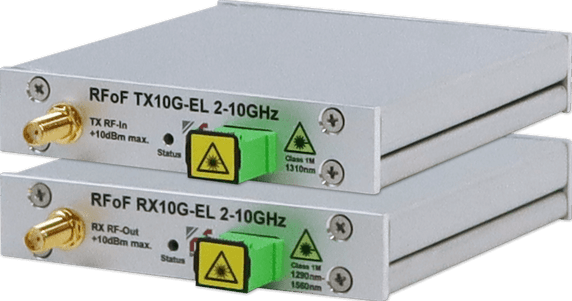

TThe EcoLine TX/RX10G-EL and Modules represent a cost-
effective RF over Fiber solution designed in a compact form allowing a handheld operation as well as population in a 1RU/19”
chassis in a locally managed Environment. EcoLine TX/RX10G-EL modules allow a conventional
unidirectional links for S and C Band application.
Features and Benefits:
- Space saving handheld box with an external PSU
- Could be in EcoLine V8 Chassis populated
- 1310nm Wavelength as unidirectional variant
- Unity Gain
- 2GHz – 10GHz
| ORDER INFORMATION | ||||
| Type | Type-No.: | Short Description | Optical I/O Connector | Frequency Range |

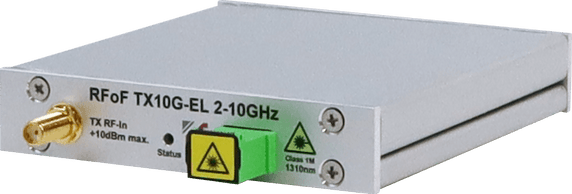

| TX10G-EL | 9001365 | 2 -10GHz Optical Transmitter Module 1310nm, SMA(f), SC/APC |
SC/APC | 850 – 2450MHz |

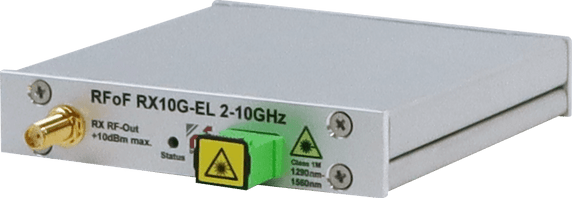

| RX10G-EL | 9001366 | 2 - 10GHz Optical Receiver Module 1290-1560nm, 50Ohm SMA(f), SC/APC |
SC/APC | 850 – 2450MHz |
| EcoLine V8 Chassis | 9001358 | Eight Slot Chassis for EcoLine Modules, Red. PSU | ||
5 customers are viewing this product
Details
TThe EcoLine TX/RX10G-EL and Modules represent a cost-
effective RF over Fiber solution designed in a compact form allowing a handheld operation as well as population in a 1RU/19”
chassis in a locally managed Environment. EcoLine TX/RX10G-EL modules allow a conventional
unidirectional links for S and C Band application.
Features and Benefits:
- Space saving handheld box with an external PSU
- Could be in EcoLine V8 Chassis populated
- 1310nm Wavelength as unidirectional variant
- Unity Gain
- 2GHz – 10GHz
| ORDER INFORMATION | ||||
| Type | Type-No.: | Short Description | Optical I/O Connector | Frequency Range |
| TX10G-EL | 9001365 | 2 -10GHz Optical Transmitter Module 1310nm, SMA(f), SC/APC |
SC/APC | 850 – 2450MHz |
| RX10G-EL | 9001366 | 2 - 10GHz Optical Receiver Module 1290-1560nm, 50Ohm SMA(f), SC/APC |
SC/APC | 850 – 2450MHz |
| EcoLine V8 Chassis | 9001358 | Eight Slot Chassis for EcoLine Modules, Red. PSU | ||
