RF-Design
RF-Design QLink Modular Quad RF-over-Fiber System
Product Code:
QLink
Condition:
New
Availability:
YES
Weight:
10.00 KGS
Width:
48.26
(cm)
Height:
4.40
(cm)
Depth:
26.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
The QLink is a modular, compact and field expandable Quad RF-over-Fiber system, supporting extended L-Band 850-2450MHz and 10MHz. The outdoor enclosure and the 1RU/19” rack mount chassis (indoor) can each be populated with max. 4 optical TX and/or RX modules, also supporting mixed TX/RX population.
Its flexibility, high quality and reliability along with lots of beneficial features and functionalities make it a perfect fit for RF-o-Fiber optical transmission at TVRO or uplink and downlink operations in Teleports, Satellite Earth Stations, VSAT hubs/terminals as well as at Broadcast- and Broadband operations.
Features & Benefits
- 850 – 2450MHz (extended L-Band) & 10MHz

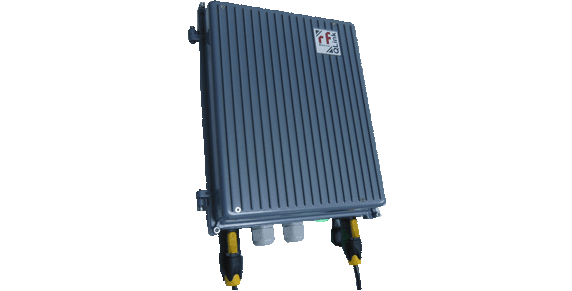

- Robust & weatherproof outdoor enclosure

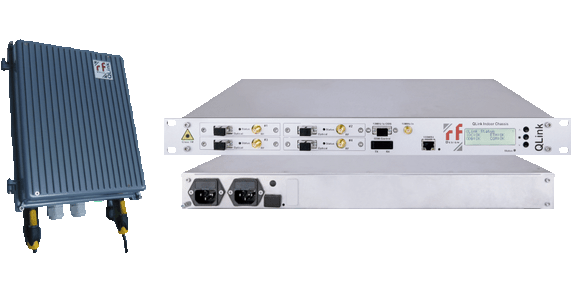

- 1RU/19″ rack mount indoor chassis
- Each with capacity for max. 4 TX/RX modules
- Supports mixed TX/RX configuration
- Modular & field expandable
- Variable gain control
- RF power monitoring
- Switchable LNB-supply
- 10MHz external reference
- Remote configuration
- Status LED´s
- 1:1 redundant dual power supply
5 customers are viewing this product
Details
The QLink is a modular, compact and field expandable Quad RF-over-Fiber system, supporting extended L-Band 850-2450MHz and 10MHz. The outdoor enclosure and the 1RU/19” rack mount chassis (indoor) can each be populated with max. 4 optical TX and/or RX modules, also supporting mixed TX/RX population.
Its flexibility, high quality and reliability along with lots of beneficial features and functionalities make it a perfect fit for RF-o-Fiber optical transmission at TVRO or uplink and downlink operations in Teleports, Satellite Earth Stations, VSAT hubs/terminals as well as at Broadcast- and Broadband operations.
Features & Benefits
- 850 – 2450MHz (extended L-Band) & 10MHz
- Robust & weatherproof outdoor enclosure
- 1RU/19″ rack mount indoor chassis
- Each with capacity for max. 4 TX/RX modules
- Supports mixed TX/RX configuration
- Modular & field expandable
- Variable gain control
- RF power monitoring
- Switchable LNB-supply
- 10MHz external reference
- Remote configuration
- Status LED´s
- 1:1 redundant dual power supply
Download
| Download Name | |
| RF-Design QLink Data Sheet | |
