RF-Design

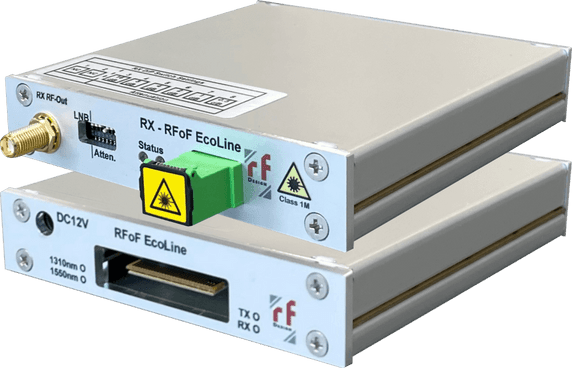

RF-Design EcoLine FiberLink Modules Extended L-Band and Broadband
Product Code:
90013XX
Condition:
New
Weight:
4.00 KGS
Width:
48.30
(cm)
Height:
44.50
(cm)
Depth:
26.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The Ecoline TX/RX2450EL and EcoLine TRX2450EL / TRX3000EL Modules represent a cost effective RF over Fiber solution designed in a compact form allowing a handheld operation as well as population in a 1RU/19” chassis in a locally managed Environment. Ecoline TX/RX2450EL modules allow a conventional unidirectional links, while EcoLine TRX2450EL / TRX3000EL Modules allow a bidirectional link within one module by utilizing different Wavelengths.
Features & Benefits:
|
ORDER INFORMATION |
||||
|
Type |
Type-No.: |
Short Description |
Optical I/O Connector |
Frequency Range |
|
TX2450EL-1310 |
9001357 |
Ext.-L-Band Optical Transmitter Module TX 1310nm, 50Ohm SMA(f) |
SC/APC |
850 – 2450MHz |
|
TX2450EL-1310-75F |
9001500 |
Ext.-L-Band Optical Transmitter Module TX 1310nm, 75Ohm F(f) |
SC/APC |
850 – 2450MHz |
|
RX2450EL |
9000917 |
Ext.-L-Band Fiber Link Receiver Module 1310-1560nm, 50Ohm SMA(f) |
SC/APC |
850 – 2450MHz |
|
RX2450EL-75F |
9001501 |
Ext.-L-Band Fiber Link Receiver Module 1310-1560nm, 75Ohm F(f) |
SC/APC |
850 – 2450MHz |
|
TRX2450EL-1310 |
9001361 |
Ext.-L-Band Optical Transceiver Module TX 1310nm, RX 1290-1560nm, 2 x 50Ohm SMA(f) |
SC/APC |
850 – 2450MHz |
|
TRX2450EL-1550 |
9001362 |
Ext.-L-Band Optical Transceiver Module TX 1550nm, RX 1290-1560nm, 2 x 50Ohm SMA(f) |
SC/APC |
850 – 2450MHz |
|

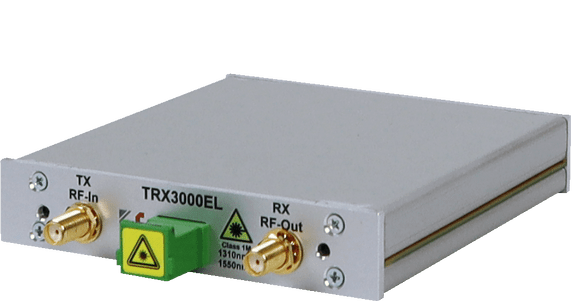

TRX3000EL-1310 |
9001363 |
3GHz Optical Transceiver Module TX 1310nm, RX 1290-1560nm, 2 x 50Ohm SMA(f) |
SC/APC |
50 – 3000MHz |
|
TRX3000EL-1550 |
9001364 |
3GHz Optical Transceiver Module TX 1550nm, RX 1290-1560nm, 2 x 50Ohm SMA(f) |
SC/APC |
50 – 3000MHz |
|
EcoLine V8 Chassis |
9001358 |
Eight Slot Chassis for EcoLine Modules, Red. PSU |
|
|
