RF-Design

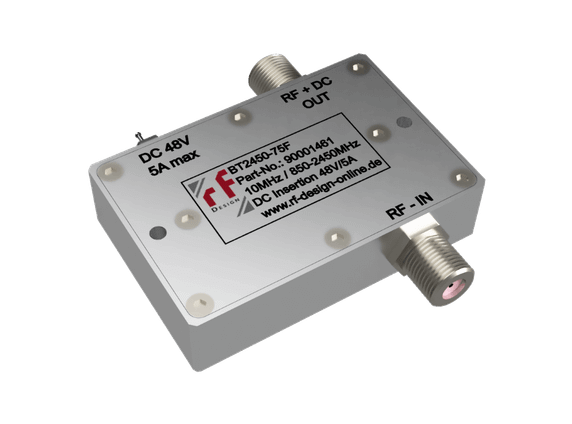

RF-Design BT2450 VSAT DC-Power Block/Inserter
Product Code:
BT2450
Condition:
New
Weight:
0.15 KGS
Width:
4.00
(cm)
Height:
1.50
(cm)
Depth:
8.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
Bias-T 10MHz and 850 - 2450MHz Pass, Insertion Loss 1,5dB max., 75Ohm F(f) -F(f), DC Block/Inserter 48V, 5A max. DC Insertion via external Port (Feed Through).
- Low Loss max 1,0dB @ 2,45GHz
- 50V / 5A max
- 50Ohm and 75Ohm Type available
| TECHNICAL SPECIFICATIONS | |
| Insertion Loss | 10MHz and 850 - 2450MHz Pass, < 1dB |
| DC Insertion, Max Voltage and Max. Current | 48V max. / 5A max. |
| Input and Output Impedance | 50 or 75Ohm |
| Return Loss | 14dB min. |
| Connectors | SMA(f) 50Ohm, N(f) 50Ohm, F(f) 75Ohm, See ordering table below |
| Dimensions/ Weight | 40 x 80 x 15mm / 150g |
| RoHS/WEEE | YES |
5 customers are viewing this product
Details
Bias-T 10MHz and 850 - 2450MHz Pass, Insertion Loss 1,5dB max., 75Ohm F(f) -F(f), DC Block/Inserter 48V, 5A max. DC Insertion via external Port (Feed Through).
- Low Loss max 1,0dB @ 2,45GHz
- 50V / 5A max
- 50Ohm and 75Ohm Type available
| TECHNICAL SPECIFICATIONS | |
| Insertion Loss | 10MHz and 850 - 2450MHz Pass, < 1dB |
| DC Insertion, Max Voltage and Max. Current | 48V max. / 5A max. |
| Input and Output Impedance | 50 or 75Ohm |
| Return Loss | 14dB min. |
| Connectors | SMA(f) 50Ohm, N(f) 50Ohm, F(f) 75Ohm, See ordering table below |
| Dimensions/ Weight | 40 x 80 x 15mm / 150g |
| RoHS/WEEE | YES |
