Radeus Labs

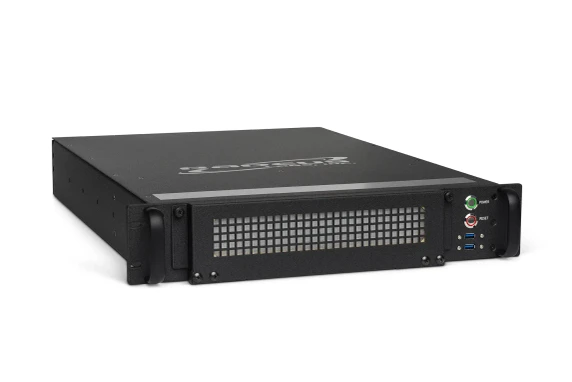

Radeus Labs RLRM2U24-HYPERV-01 Hypervisor
Product Code:
RLRM2U24-HYPERV-01
Condition:
New
Weight:
16.00 KGS
Width:
48.26
(cm)
Height:
8.89
(cm)
Depth:
60.96
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
Ruggedized 2U Rackmount Server (Hypervisor) Unit
- Virtual Machine that use vGPU (Can use VMware Horizon and ESXi when paired, but not alone)
- Hypervisor solution / Virtual Machine with vGPU using VMware Horizon and ESXi , carries the license for other Hypervisors associated with it.
- Hypervisor solution – Hardware Only, No software
| Key Features |
| Qty 2: Intel Xeon Scalable Processors |
| Embedded options available |
| Up to 348GB RAM (DDR4-2933 ECC) |
| Support for Intel DC Persistent Memory |
| Qty 8: Hot-swappable 2.5in SAS/SATA Bays |
| Qty 2: Front Panel USB 3.0 Ports |
| Recessed (hidden) Front USB port for host OS |
| Integrated Filter Bezel with custom 2 stage filter |
| 1600W Redundant Power Supply |
| 2U Rugged Rack Mount Chassis |
| Nvidia Quadro RTX 8000 GPU or Equivalent |
| Blu Ray Internal Slim SATA burner |
| 8-Channel 12GBs SAS/SATA RAID card |
| Dual 10Gb Copper NIC |
| Dual 10Gb Fiber NIC (SFP+ ports) |
| Environmental Testing |
| Supports MIL-STD-810G environments |
| Highway Truck Transport |
| Air Transport |
| Operating Temperature 5°C to +50°C |
| Storage Temperature -40°C to +70°C |
| Operating Systems Options |
| VMware ESXi |
| Specifications |
| Case Dimensions: |
| Height: 2U custom per EIA/ECA-310 |
| Depth: 24” |
| 0.25” Thick Front Panel: 19.0” ISO Rack |
| Case Material: 0.08” Aluminum |
| Front Finish: Wrinkle Black Powder Coat Text: White |
| Chemical Treatment: MIL-DLT-5541 Class 3 |
| Active air-cooling package |
| Other Features |
| Vandal-Resistant, Momentary, Illuminated Power (Green), Reset (Red) Switches |
| Front panel accessible drive bays (Qty 8) with removable media for rapid downgrade procedure execution |
| Recess mount USB (behind panel) for Hypervisor OS |
| Integrated Environmental 2 stage Filter Bezel (with optional locks) |
| Optional extra USB card and ports in rear |
| Accessories |
| 20” Solid Bearing Sliding Rack Rails |
| 10’ Power Cords (Qty. 2) |
| Optional Accessories |
| Environmental Filter |
| Hard Drive and Sled Kit |
| Power Supply Module |
