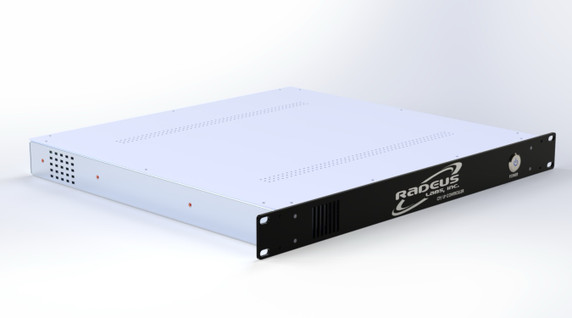

Radeus Labs RL250 CP/LP 1RU Rack-Mount Polarization Controller
Product Code:
RL250
Condition:
New
Weight:
4.00 KGS
Width:
41.00
(cm)
Height:
4.45
(cm)
Depth:
42.50
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The Radeus Labs RL250 is a 1RU rack-mount polarization controller that independently drives two polarization switch motors, selecting circular polarization (CP) or linear polarization (LP) on each feed when commanded. The RL250 connects to the indoor unit (IDU) over TCP/IP Ethernet, executes polarization change commands, and reports the current polarization selection status of each switch back to the IDU.
Key Features
- Independent CP/LP selection for two polarization switch motors (POL 1 and POL 2).
- Positive polarization position feedback via switch indicator contacts, reported to the IDU.
- Compatible with standard and latching (Circuit #2) polarization switch motor circuits.
- IEC 320-C14 inlet with internal 24 VDC supply and forced-air cooling.
| Specifications | |
| POLARIZATION CONTROL | |
| Channels | 2 independent (POL 1, POL 2), CP/LP selection per channel. |
| Motor drive output | 250VAC/30VDC; 4A peak. |
| Position indication | Two indicator inputs per channel (LP / CP), +24 V sense loop. |
| Switch compatibility | Standard polarization switch circuit and latching |
| MONITOR & CONTROL | |
| Remote M&C | Entirely through the ACU. |
| ELECTRICAL | |
| AC input | 80–260 VAC, 50/60 Hz, IEC power entry module. |
| Internal supply | 24 VDC, 90 W; regulated +24 / +12 / +5 VDC rails. |
| Auxiliary output | 24 VDC; 3A power output (rear-panel terminal block). |
| PROTECTION | |
| Over Voltage/ Temperature | Shut down voltage, re-power on to recover. |
| Overload | Hiccup mode; recovers automatically after fault condition is removed. |
| Fuse | F2.5AL250P. |
| MECHANICAL | |
| Form factor | 1RU rack mount. |
| Dimensions | 16.13″ W × 16.75″ D × 1.75″ H (410 × 425 × 44.5 mm). |
| Finish | Black matte powder-coated chassis. |
| Cooling | Forced air (internal fan). |
| REAR PANEL | |
| Ethernet | 2× RJ45 (M&C). |
| Motor connections | POL 1 / POL 2 motor: 3-position terminal block each (LP / COM / CP). |
| Indicator connections | POL 1 / POL 2 indicators: 4-position terminal blocks (IND / +24 V per position). |
| Power | IEC 320-C14 Inlet, +24 VDC auxiliary output, chassis ground stud. |
| ENVIRONMENTAL | |
| Operating temperature | -10ºC ~ 55ºC (14ºF ~ 131ºF). |
| Storage temperature | -40ºC ~ 70ºC |
| Humidity | 40% ~ 80%. |
