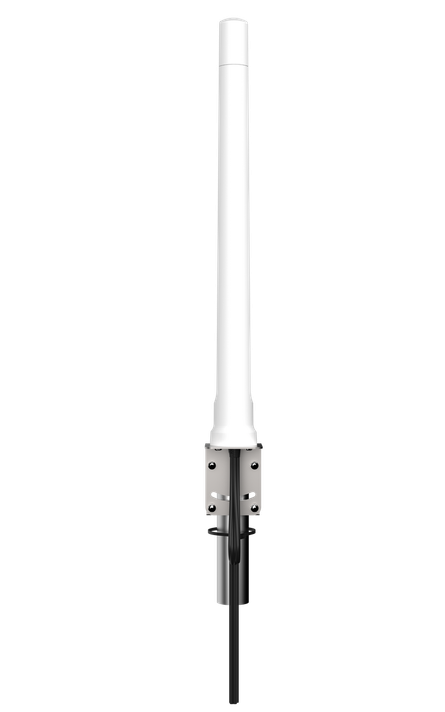

Poynting OMNI-294 X-Polarised, Omni-Directional, 4x4 MIMO Antenna, Dual-Band Wi-Fi

The OMNI-294 is a high-performance, cross-polarized, dual-band Wi-Fi omni-directional antenna designed for fixed wireless access (FWA) deployments. This versatile antenna operates across the 2.4 GHz and 4.9 to 7.2 GHz frequency bands, making it compatible with both legacy Wi-Fi technologies and the latest advancements, including Wi-Fi 7.

In addition to its Wi-Fi capabilities, the OMNI-294 also supports the 3.3 to 4.2 GHz band, which is utilized for Citizens Broadband Radio Service (CBRS) in 5G applications. The antenna provides a peak gain of 7.5 dBi in this band, making it an excellent choice for enhancing 5G connectivity.

Engineered to deliver robust Wi-Fi coverage, the OMNI-294 supports 4x4 MIMO technology, facilitated by vertically separated radiating elements. This configuration ensures true omni-directional coverage, enhancing connectivity and reliability in FWA applications.

To optimize 4x4 MIMO performance, the antenna features cross-polarized elements, with high-gain vertical antennas offering a peak gain of 8 dBi and low-gain horizontally polarized antennas providing a peak gain of 6 dBi. This combination enhances overall performance, making the OMNI-294 an ideal solution for a wide range of Wi-Fi and 5G access points.

Features

• Dual-band Wi-Fi antenna for 2.4 GHz & 4.9 to 7.2 GHz
• CBRS band support from 3.3 to 4.2 GHz
• 4x4 MIMO capability for improved performance
• Cross-polarised antennas (vertical & horizontal)
• High gain performance across multiple frequency bands
• Robust and weather-resistant enclosure with an IP 65 rating
