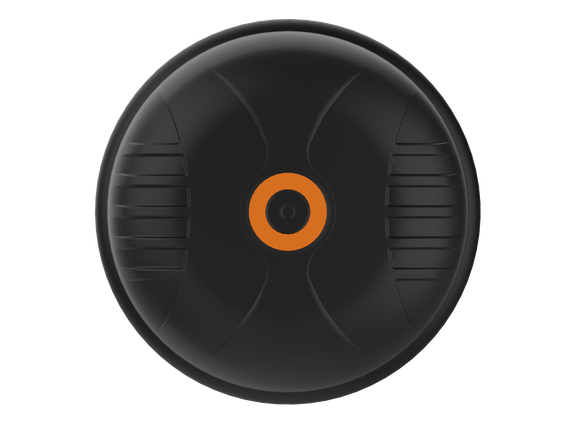

Poynting MIMO-4-4 V2 4-in-1 Transportation & Automotive Antenna 617 - 6000 MHz; 4x4 LTE/5G (MIMO), 6dBi

The MIMO-4-4 is a 4-in-1 high-performance, multi-frequency antenna featuring four cellular antennas within a single housing.

The four cellular MIMO antennas provide wideband coverage from 617 MHz to 6000 MHz, supporting contemporary LTE/4G and 5G bands for future-proof deployment. This ultra-wideband capability enables operation across multiple operators and technologies, with readiness for future cellular systems up to 6 GHz for 5G applications. It also supports Wi-Fi applications covering 2.4 to 2.5 GHz and 5 to 6 GHz bands.

The MIMO-4-4 is engineered to exceed the performance of many competing solutions through careful RF design. The radiation patterns of all elements provide a balanced combination of omnidirectionality, pattern diversity, and effective radiation at the desired elevation angles. This makes it particularly suitable for transportation and marine environments, where these characteristics are essential.

Primary applications include commercial and industrial vehicles, marine systems, M2M deployments, and IoT solutions using a wide range of radio technologies, while maintaining future-ready performance across a broad frequency spectrum.

Features

• Ultra-wideband operation from 617 to 6000 MHz for cellular
• Features 4 x Cellular antennas
• Ultra-rugged mechanical design to allow for an IP 69K rating
• Ground plane independent; antenna design with internal grounding
• Multiple mounting options available for ease of installation
