Poynting

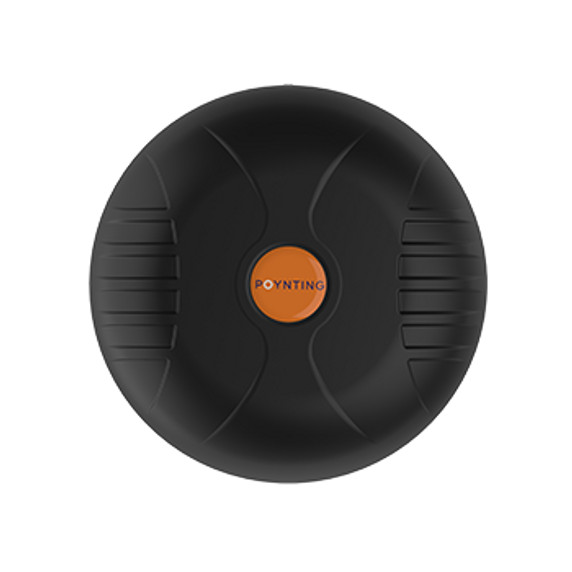

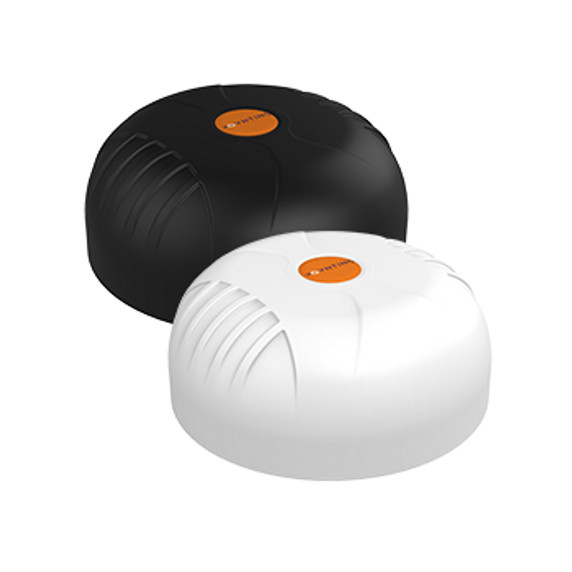

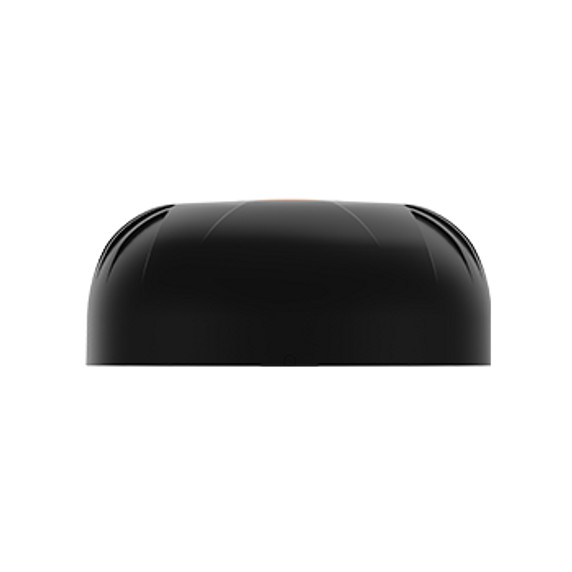

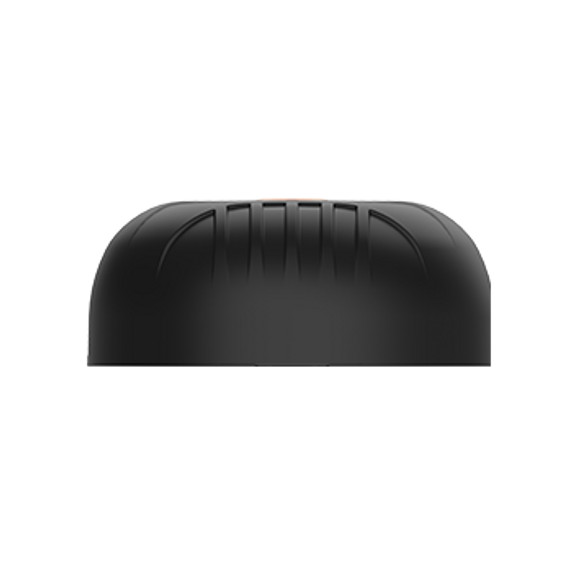

Poynting MIMO-4-15, 5-in-1 Transportation & Automotive Antenna

(No reviews yet) Write a Review
Condition:
New
Availability:
YES
Weight:
3.00 KGS
Width:
23.00 (cm)
Height:
15.00 (cm)
Depth:
22.00 (cm)
  • Poynting MIMO-4-15, 5-in-1 Transportation & Automotive Antenna
  • Poynting MIMO-4-15, 5-in-1 Transportation & Automotive Antenna
  • Poynting MIMO-4-15, 5-in-1 Transportation & Automotive Antenna
  • Poynting MIMO-4-15, 5-in-1 Transportation & Automotive Antenna
  • Poynting MIMO-4-15, 5-in-1 Transportation & Automotive Antenna
  • Poynting MIMO-4-15, 5-in-1 Transportation & Automotive Antenna
  • Poynting MIMO-4-15, 5-in-1 Transportation & Automotive Antenna
  • Poynting MIMO-4-15, 5-in-1 Transportation & Automotive Antenna
$205.00

Description

5-in-1 Transportation & Automotive Antenna
617 - 7200 MHz; 2x2 LTE/5G (MIMO), 6dBi; 2x2 Wi-Fi (MIMO), 6.5dBi; GPS/GLONASS, 21dBi
  • 5-in-1 High performance multi frequency automotive antenna
  • Ultra-wideband coverage from 617 to 6000 MHz for cellular
  • 2x2 MIMO LTE/5G, 2x2 MIMO Wi-Fi & GPS/GLONASS
  • Robust and weather resistant antenna with an IP69K rating
  • Ideal for transportation and marine implementation
  • Multi mounting options for ease of installation
Product Overview

The MIMO-4-15 is a 5-in-1 high performance, multi frequency antenna within a single housing. The antenna provides two cellular, two Wi-Fi and a GPS/GLONASS antenna. The two cellular MIMO antennas offer wideband coverage from 617 to 6000 MHz, covering contemporary LTE/4G and 5G bands for future proof implementation. The ultra-wideband performance of the cellular antennas allows it to be used across different operators and technologies and is ready for future cellular technologies up to 6 GHz for 5G applications, as well as Wi-Fi applications from 5 to 6 GHz.
The antenna also provides two dual-band Wi-Fi antennas, providing concurrent 2.4 GHz and 5 to 7.2 GHz on each antenna for 2×2 MIMO capability. The MIMO-4-15 exceeds the performance of most competitors due to the attention to the design of this high-performance antenna. The radiation patterns of all radiating elements, provide an excellent balance between omni-directionality, pattern diversity and good radiation abilities at the desired elevation. This is an important criterion for the transportation and marine market, which the antenna was specifically designed for. Main applications are for commercial/industrial vehicles, marine, M2M and other IoT systems using a wide range of radio technologies, while remaining futureproof over the wide frequency band.

SKU A-MIMO-0004-V1-15-B A-MIMO-0004-V1-15-W
COAX Cable Type RTK-031 RTK-031
COAX Cable Length 2m 2m
Color Black White

Frequency Bands

The MIMO-4-15 is an omni-directional antenna that works from 617 960 MHz | 1427 1517 MHz | 1710 2700 MHz | 3400 4200 MHz | 5000 6000 MHz | and the following Wi-Fi frequency bands | 2400 2500 MHz | and | 5000 7200 MHz |

View AllClose

Additional Information

orbital_datasheet_1:
https://7645d645-efa2-486e-a916-cc3dc276ec52.usrfiles.com/ugd/7645d6_5440f0072389435aa9f97475728a71d1.pdf?MIMO-4-15 Data Sheet
orbital_datasheet_2:
https://7645d645-efa2-486e-a916-cc3dc276ec52.usrfiles.com/ugd/7645d6_3f9780f6411b4d88827b57b757c361fd.pdf?MIMO-4-15 User Guide
