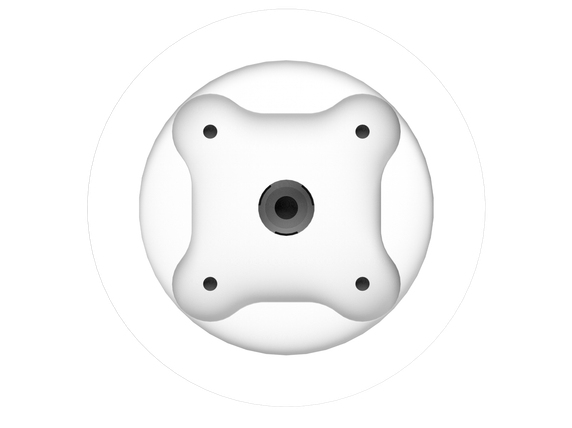

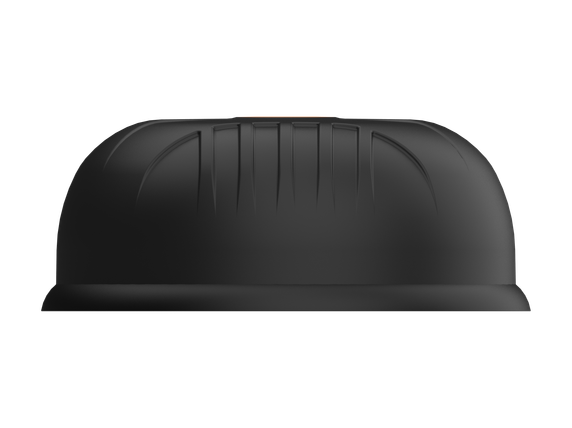

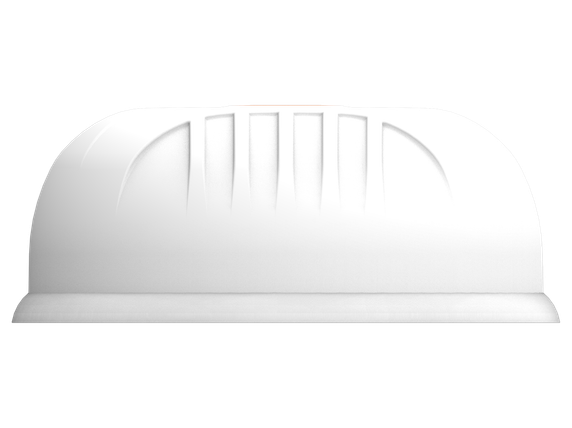

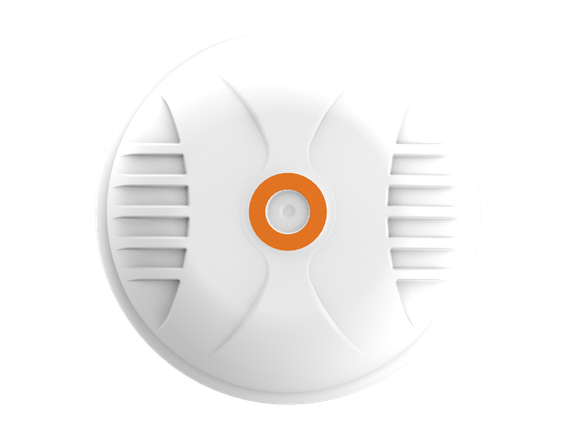

Poynting MIMO-4-17 V2 7-in-1 Transportation & Automotive Antenna 617 - 7200 MHz; 4x4 LTE/5G

The MIMO-4-17 is a 7-in-1 high-performance, multi-frequency antenna housed within a single enclosure. It integrates four cellular antennas, two Wi-Fi antennas, and one GNSS antenna.

The four cellular MIMO antennas provide wideband coverage from 617 MHz to 6000 MHz, supporting contemporary LTE/4G and 5G bands for future-proof deployment. This ultra-wideband capability allows operation across multiple operators and technologies, with readiness for future cellular systems up to 6 GHz for 5G applications.

The antenna also includes two dual-band Wi-Fi antennas, each supporting concurrent 2.4 GHz and 5 to 7.2 GHz operation, enabling 2×2 MIMO Wi-Fi capability.

The GNSS antenna provides positioning support for navigation and timing applications.

The MIMO-4-17 is engineered for high performance, with radiation patterns across all elements designed to achieve a strong balance of omnidirectionality, pattern diversity, and effective elevation coverage. This is particularly important for transportation and marine environments, where reliable multi-radio performance is essential.

Primary applications include commercial and industrial vehicles, marine systems, M2M deployments, and IoT solutions using a wide range of radio technologies, while maintaining future-ready performance across a broad frequency spectrum.

Features

• Ultra-wideband operation from 617 to 6000 MHz for cellular
• Future-Proof Wi-Fi Support: 5.0–7.2 GHz (incl. Wi-Fi 6E/7)
• Features 4 x Cellular, 2 x Wi-Fi and 1 x GNSS antenna
• Ultra-rugged mechanical design to allow for IP 69K rating
• Ground plane independent; antenna design with internal ground
• Multiple mounting options available for ease of installation
