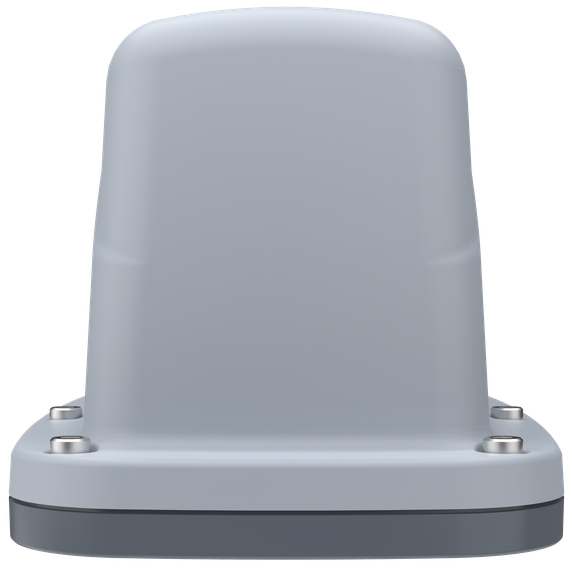

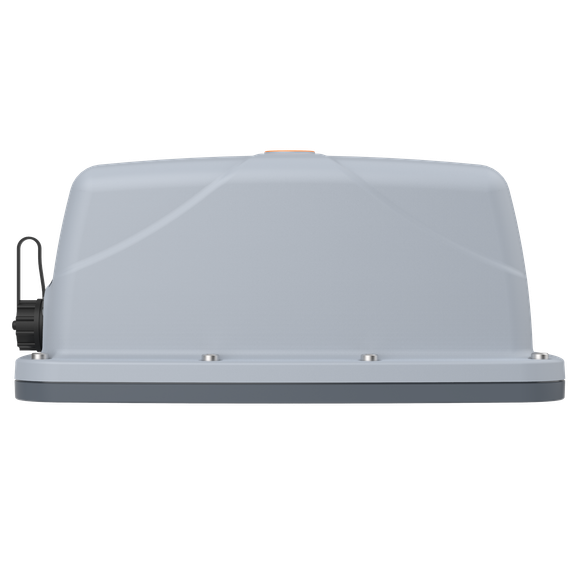

Poynting EPNT-7 High-Performance 4x4 MIMO Wi-Fi Antenna Enclosure for Rugged Applications
Product Code:
A-EPNT-0007-V1
Condition:
New
Weight:
2.55 KGS
Width:
13.40
(cm)
Height:
11.47
(cm)
Depth:
27.50
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The EPNT-7, developed by Poynting Antennas, is a robust 4x4 MIMO dual-band Wi-Fi antenna enclosure designed to enhance wireless performance in demanding environments. It features four dual-band antennas covering the 2.4 GHz and 5–6 GHz bands, delivering up to 3.5 dBi gain on 2.4 GHz and up to 7.5 dBi gain on 5 to 6 GHz with excellent omni-directional pattern control.
The enclosure is purpose-built to integrate compact router modules such as the Rajant Cardinal, transforming it into a mobile Wi-Fi CPE ideal for high noise, high-vibration applications such as mining, agriculture, and logistics. The EPNT-7 can accommodate routers up to the size of 108 x 73.5 x 20 mm³. The powder-coated cast aluminium base effectively dissipates heat, while strain reliefs protect cables against mechanical stress and vibration. Additional features include a transparent LED status window for easy monitoring of your router and a rugged IP69K/IK08-rated housing for durability in harsh conditions.
Features
- 4x4 MIMO dual-band antennas for reliable, high-performance Wi-Fi across 2.4 and 5 to 6 GHz bands
- Integrated housing for compact router modules, enabling a compact, mobile CPE solution.
- Rugged design with powder-coated cast aluminium base, IP69/IK08 ratings, and vibration-resistant cable reliefs.
- LED status window for quick and easy router diagnostics
- Mounting options include surface, magnetic and pole mount
| Antenna Derivatives | ||
| Product Order Code (SKU) | A-EPNT-0007-V1-01 | A-EPNT-0007-V1-02 |
| Wi-Fi Ports | 4 | 4 |
| GPS Port | N/A | 1 |
| Connector Type | Internal: Wi-Fi: SMA (M)External: RJ-45 Passthrough Gland | Internal: Wi-Fi: SMA (M)GPS: USBExternal: RJ-45 Passthrough Gland |
| SISO / MIMO | 4x4 MIMO | 4x4 MIMO |
| Frequency Bands | 2400 – 2500 MHz5000 – 6000 MHz | 2400 – 2500 MHz5000 – 6000 MHz |
| Polarisation | Cross Polarized(Linear Vertical & Horizontal) | Cross Polarized(Linear Vertical & Horizontal) |
| Peak Gain | 7.5 dBi | 7.5 dBi |
| Coax Cable Type | Internal: RTK-031 | Internal: RTK-031 |
| Coax Cable Length | 0.22m | 0.22m |
| Weight | 0.50 Kg | 0.55 Kg |
| Packaged Weight | 2.50 Kg | 2.55 Kg |
| EAN | 6.00971E+12 | 6.00971E+12 |
5 customers are viewing this product
Details
The EPNT-7, developed by Poynting Antennas, is a robust 4x4 MIMO dual-band Wi-Fi antenna enclosure designed to enhance wireless performance in demanding environments. It features four dual-band antennas covering the 2.4 GHz and 5–6 GHz bands, delivering up to 3.5 dBi gain on 2.4 GHz and up to 7.5 dBi gain on 5 to 6 GHz with excellent omni-directional pattern control.
The enclosure is purpose-built to integrate compact router modules such as the Rajant Cardinal, transforming it into a mobile Wi-Fi CPE ideal for high noise, high-vibration applications such as mining, agriculture, and logistics. The EPNT-7 can accommodate routers up to the size of 108 x 73.5 x 20 mm³. The powder-coated cast aluminium base effectively dissipates heat, while strain reliefs protect cables against mechanical stress and vibration. Additional features include a transparent LED status window for easy monitoring of your router and a rugged IP69K/IK08-rated housing for durability in harsh conditions.
Features
- 4x4 MIMO dual-band antennas for reliable, high-performance Wi-Fi across 2.4 and 5 to 6 GHz bands
- Integrated housing for compact router modules, enabling a compact, mobile CPE solution.
- Rugged design with powder-coated cast aluminium base, IP69/IK08 ratings, and vibration-resistant cable reliefs.
- LED status window for quick and easy router diagnostics
- Mounting options include surface, magnetic and pole mount
| Antenna Derivatives | ||
| Product Order Code (SKU) | A-EPNT-0007-V1-01 | A-EPNT-0007-V1-02 |
| Wi-Fi Ports | 4 | 4 |
| GPS Port | N/A | 1 |
| Connector Type | Internal: Wi-Fi: SMA (M)External: RJ-45 Passthrough Gland | Internal: Wi-Fi: SMA (M)GPS: USBExternal: RJ-45 Passthrough Gland |
| SISO / MIMO | 4x4 MIMO | 4x4 MIMO |
| Frequency Bands | 2400 – 2500 MHz5000 – 6000 MHz | 2400 – 2500 MHz5000 – 6000 MHz |
| Polarisation | Cross Polarized(Linear Vertical & Horizontal) | Cross Polarized(Linear Vertical & Horizontal) |
| Peak Gain | 7.5 dBi | 7.5 dBi |
| Coax Cable Type | Internal: RTK-031 | Internal: RTK-031 |
| Coax Cable Length | 0.22m | 0.22m |
| Weight | 0.50 Kg | 0.55 Kg |
| Packaged Weight | 2.50 Kg | 2.55 Kg |
| EAN | 6.00971E+12 | 6.00971E+12 |
Download
| Download Name | |
| Poynting EPNT-7 Datasheet | |
| Poynting EPNT-7 User Guide | |
