Norsat International Inc.

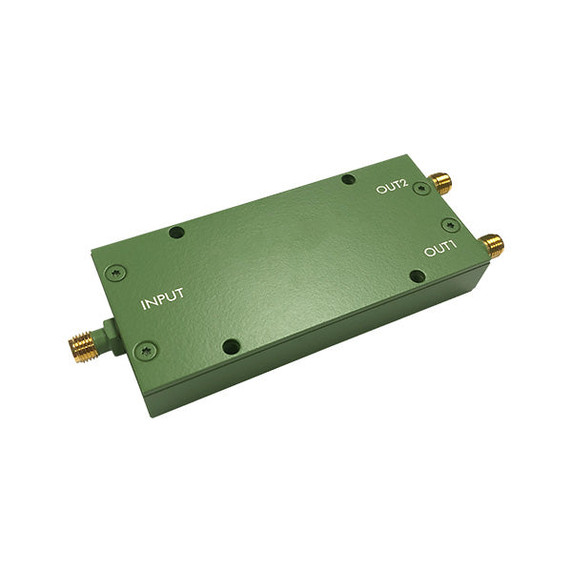

Norsat PD2EFS RF Power Divider

Name: Norsat PD2EFS RF Power Divider
Brand: Norsat International Inc.
SKU: PD2EFS
Price: 1500 USD
Availability: InStock

No reviews yet

Product Code: PD2EFS

Condition: New

Availability: 10 - 12 Weeks

Weight: 0.00 KGS

Width: 2.64 (cm)

Height: 0.63 (cm)

Depth: 4.55 (cm)

$1,500.00

KEY SPECIFICATIONS
Bandwith	24.5 GHz
Frequency	2 - 26.5 GHz
Noise Figure	N/A
RF SPECIFICATIONS
Gain	N/A
Gain Ripple	N/A
Input VSWR	1.6:1 max.
Insertion Loss	1.2 dB max.
Isolation	16 dB min (2000-8000MHz) 14 dB min (8000-18000MHz) 14dB min (18000-26500Mhz )
Ripple	N/A
ELECTRICAL SPECIFICATIONS
Amplitude Balance	0.20 dB max (2000-8000Mhz) , .30 dB max (8000-18000MHz) , .45 dB max (18000-26500MHz)
Coupling	3 dB nom.
Impedance	50 ohms
Power Handling Avg	10 W max.
INTERFACE SPECIFICATIONS
Connectors Type	SMA-F
ENVIRONMENTAL SPECIFICATIONS
Indoor Status	Yes
PHYSICAL SPECIFICATIONS
Product Height	6.3 mm
Product Length	45.5 mm
Product Width	26.4 mm
ADDITIONAL INFORMATION
ECCN Number	EAR99
Harmonized System Code	8548000000
Unit Packaging Weight	47.6 g
