Norsat International Inc.

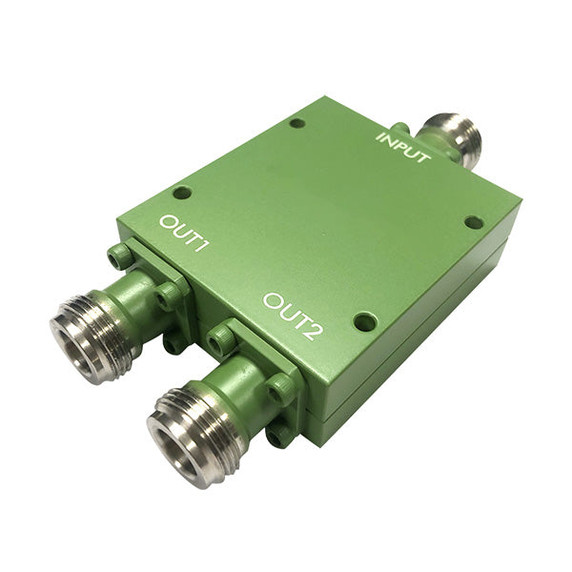

Norsat PD2CAN RF Power Divider

Name: Norsat PD2CAN RF Power Divider
Brand: Norsat International Inc.
SKU: PD2CAN
Price: 560 USD
Availability: InStock

No reviews yet

Product Code: PD2CAN

Condition: New

Availability: 10 - 12 Weeks

Weight: 0.00 KGS

Width: 6.25 (cm)

Height: 1.91 (cm)

Depth: 8.26 (cm)

$560.00

KEY SPECIFICATIONS
Bandwith	5.5 GHz
Frequency	0.5 - 6 GHz
Noise Figure	N/A
RF SPECIFICATIONS
Gain	N/A
Gain Ripple	N/A
Input VSWR	1.67:1 max.
Insertion Loss	1.3 dB max.
Isolation	15 dB min (500-600MHz) 17dB min (600-6000MHz)
Ripple	N/A
ELECTRICAL SPECIFICATIONS
Amplitude Balance	0.5 dB max
Coupling	3 dB nom.
Impedance	50 ohms
Power Handling Avg	30 W max.
INTERFACE SPECIFICATIONS
Connectors Type	N-F
ENVIRONMENTAL SPECIFICATIONS
Indoor Status	Yes
PHYSICAL SPECIFICATIONS
Product Height	19.1 mm
Product Length	82.6 mm
Product Width	62.5 mm
ADDITIONAL INFORMATION
ECCN Number	EAR99
Harmonized System Code	8548000000
Unit Packaging Weight	284g
