Norsat International Inc.

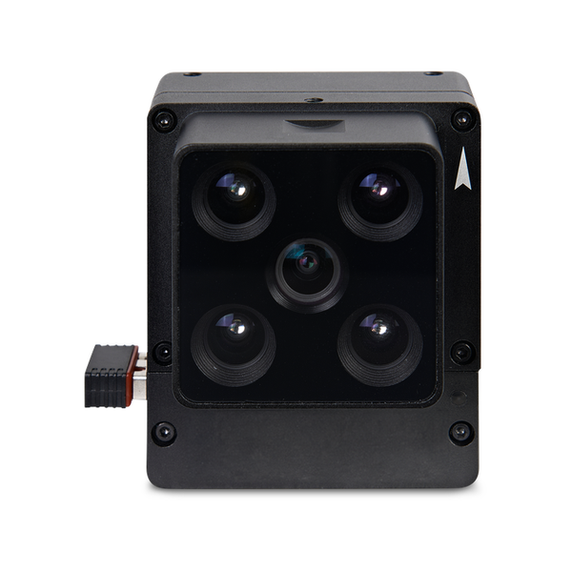

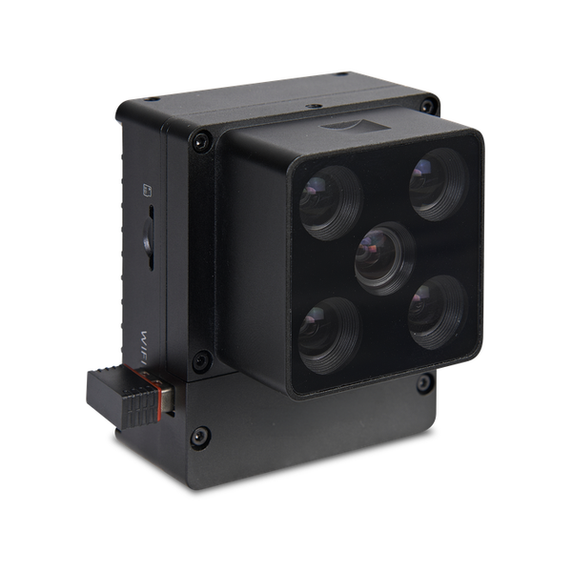

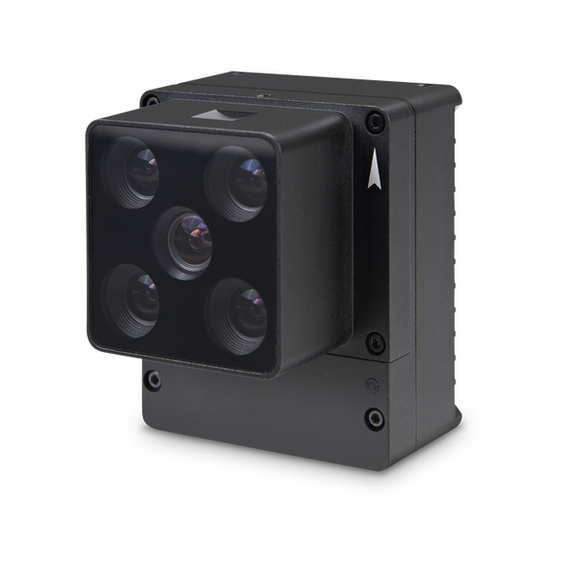

Norsat MC4 4-Band Multispectral Camera
Product Code:
MC4
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.17 KGS
Width:
5.50
(cm)
Height:
5.00
(cm)
Depth:
6.50
(cm)
$28,000.00
| KEY SPECIFICATIONS | |
| Band Configuration | 4 MS + 1 RGB |
| Multispectral Camera Bit Depth | 12 bit |
| Multispectral Camera Effective Pixel | 1.3 Mpx |
| Multispectral Camera FOV Horizontal | 36.76 deg |
| Multispectral Camera FOV Vertical | 31.33 deg |
| Multispectral Camera GSD | 6.23 cm @ h120m |
| Multispectral Camera Image Format | 16bit TIFF & 8bit reflectance JPEG |
| Multispectral Camera Image Size Coverage | 80 m x 67 m @ h120m |
| Multispectral Camera Scanning Mode | Global shutter |
| Multispectral Camera Sensor Size | 1/4" |
| Photo Frequency | 1 Hz |
| RGB Camera Bit Depth | 8 bit |
| RGB Camera Effective Pixel | 8.0 Mpx |
| RGB Camera FOV Horizontal | 37.57 deg |
| RGB Camera FOV Vertical | 28.66 deg |
| RGB Camera GSD | 2.49 cm @ h120m |
| RGB Camera Image Format | 8bit JPEG |
| RGB Camera Image Size Coverage | 82 m x 61 m @ h120m |
| RGB Camera Scanning Mode | Rolling shutter |
| RGB Camera Sensor Size | 1/4" |
| Spectral Band | 555nm@27nm, 660nm@22nm, 720nm@10nm, 840nm@30nm, RGB |
| Trigger Mode | External, Timed, Overlap rate trigger |
| ELECTRICAL SPECIFICATIONS | |
| Operating Voltage | 9-26 VDC (typical 12 VDC) |
| Power Consumption | 6W |
| INTERFACE SPECIFICATIONS | |
| Control Method | WIFI (WEB interface) / Ethernet / UART |
| Storage Medium | Maximum 128 GB, UHS-I Speed Class 3 (U3) micro SD card |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -10 to +50 deg C |
| Operating Wind Speed | >= 1 m/s |
| Temperature Storage | -30 to +70 deg C |
| PHYSICAL SPECIFICATIONS | |
| Installation Interface | 7 x M3 |
| Product Height | 50 mm |
| Product Length | 65 mm |
| Product Weight | 0.170 kg |
| Product Width | 55 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.078 kg |
| Aluminium COO | China |
| Aluminium Total Value | 0.20 |
| Country Of Origin | China |
| ECCN Number | N/A - No US Content |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8525892110 |
| Warranty | 1year |
