Nextivity

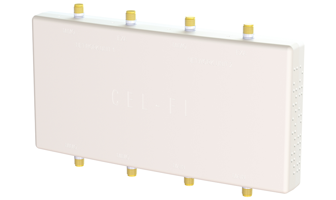

Nextivity Q34-SCI CEL-FI QUATRA Small Cell Interface
Product Code:
Q34-SCI
Condition:
New
Weight:
0.20 KGS
Width:
17.50
(cm)
Height:
8.50
(cm)
Depth:
2.50
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
A Small Cell Interface (SCIF) may be used as the donor source for the CEL-FI QUATRA. The SCIF simplifies RF connections between a small cell and Network Units. It includes a main unit and all cables for a single NU.
- Simplifies connections to a small cell
- Provides proper signal attenuation and isolation
- Required for small cell Installation
- Designed for QUATRA 1000 small cell installation
| Technical Specifications | |
| ITEM | Specification |
| Model | Q34-SCI |
| Max Input power | 30 dBm (1 watt) all ports |
| Frequency | 699 – 2690 MHz all ports |
| Impedance | 50 ohm |
| Connectors | SMA Female |
| Operating temperature | 0° to 40°C |
| Storage temperature | -25° to 60°C |
| Relative humidity | 0% to 95%, noncondensing |
| Ingress Rating | IP20 (Indoor use only) |
| Dimensions | 175mm (W) x 85mm (H) x 25mm (D) |
| Weight | 196 gm |
5 customers are viewing this product
Details
A Small Cell Interface (SCIF) may be used as the donor source for the CEL-FI QUATRA. The SCIF simplifies RF connections between a small cell and Network Units. It includes a main unit and all cables for a single NU.
- Simplifies connections to a small cell
- Provides proper signal attenuation and isolation
- Required for small cell Installation
- Designed for QUATRA 1000 small cell installation
| Technical Specifications | |
| ITEM | Specification |
| Model | Q34-SCI |
| Max Input power | 30 dBm (1 watt) all ports |
| Frequency | 699 – 2690 MHz all ports |
| Impedance | 50 ohm |
| Connectors | SMA Female |
| Operating temperature | 0° to 40°C |
| Storage temperature | -25° to 60°C |
| Relative humidity | 0% to 95%, noncondensing |
| Ingress Rating | IP20 (Indoor use only) |
| Dimensions | 175mm (W) x 85mm (H) x 25mm (D) |
| Weight | 196 gm |
