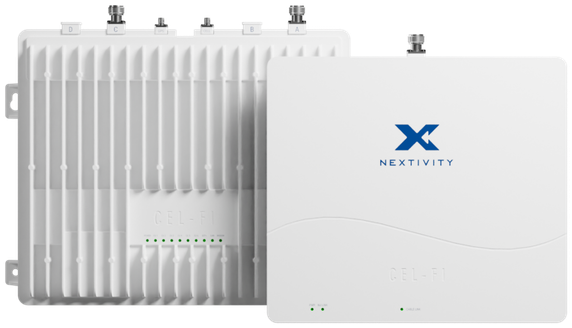

Nextivity CEL-FI QUATRA EVO FN
Product Code:
I42-36CNU | I41-WXCU
Condition:
New
Weight:
12.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
Solving FirstNet cellular coverage challenges for enterprise environments, CEL-FI QUATRA EVO FN is an intelligent active DAS that offers uniform, high-quality FirstNet cellular coverage throughout any building. As an all-digital solution, QUATRA EVO FN utilizes category cabling for RF and Power-over-Ethernet architecture to deliver industry-leading signal gain and scalability. In addition to unmatched performance, this cost-effective, carrier-grade system offers fiber expansion capabilities to scale up your coverage area and can be installed within days. QUATRA EVO FN is also carrier approved and unconditionally network safe.
Features and benefits include:
- Scalable all-digital intelligent active DAS for enterprise environments
- Flexible to configure for AT&T and FirstNet coverage applications
- In-Building cellular coverage solution for 4G and 5G with industry-leading signal gain up to 100 dB
- Carrier approved and unconditionally network safe
- Lossless RF signal and Power-over-Ethernet (PoE) distribution with easy-to-install category cable architecture
- Site installation flexibility with operator-specific donor antenna or small cell signal source
- Remotely monitor and configure with Nextivity WAVE Portal cloud management
| BANDS | |||||
| Bands | Network | Unit Port Downlink (MHz) | Uplink (MHz) | Technology/Bandwidth | Uplink Power (dBm) |
| 2 | A & C | 1930-1990 | 1850-1910 | 5G/4G/20 MHz | 22 |
| 4 | A & C | 2110-2155 | 1710-1755 | 5G/4G/20 MHz | 22 |
| 5 | A Only | 869-894 | 824-849 | 5G/4G/20 MHz | 20 |
| 12 | A Only | 729-746 | 699-716 | 5G/4G/10 MHz | 20 |
| 14 | C Only | 758-768 | 788-798 | 5G/4G/10 MHz | 20 |
| 25 | A & C | 1930-1995 | 1850-1915 | 5G/4G/20 MHz | 22 |
| 30 | A Only | 2350-2360 | 2305-2315 | 5G/4G/10 MHz | 19 |
| Specifications | |
| Frequency Bands | 2/4/5/12/14/25/30 |
| Relay Channel Bandwidths (MHz) | 5/10/15/20 |
| Antenna Technology | SISO |
| Network Protocols | LTE/DSS/NR |
| Network Selection | Automatically best available (WAVE Portal or WAVE Field Tool for manual setting) |
| Duplex Modes | FDD |
| # of Relay Bands | 4 max. |

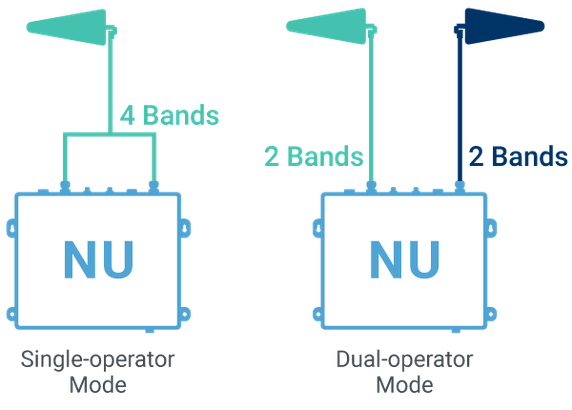

| Independent Operators Supported | 2 max. (AT&T and FirstNet) |
| Relay Bandwidth per NU Donor Port A or C | 20 + 20 MHz max. |
| CU DL Power (All Bands) | 16 dBm max. |
| System Gain | 100 dB max. |
| Enterprise-Grade Echo Cancellation | 30 dB min. |
| Noise Figure (All Bands) | 7 dB max. at ambient (8 dB max. for Band 14 only) |
| Return Loss | -8 dB max. |
| UL Transmit EVM | 8.5 %, 16-QAM with full RB allocation |
| DL Transmit EVM | 8.5%, E-TM3.1 |
| DL Input Level | -100 to -40 dBm |
| RF Interface Impedance (All Ports) | 50 Ω |
| NU to CU Cable | 2x Category Cables ANSI/TIA/EIA 568-B Compliant |
| NU to CU Cable Distance | 328 ft (100 m) (656 ft (200 m) with CEL-FI QUATRA Range Extender) max. |
| Product Settings & SW Updates | WAVE Portal for remote access / WAVE Field Tool with USB connection |
| Network Unit Interface | |
| Donor Port RF Connectors | 2x N-type (f) (A|- |
| Power Port | IEC C14 |
| Power Control | ON/OFF Switch |
| Cellular Modem Antenna Connector | 1x SMA (f) |
| Cellular Modem GPS Antenna Port | 1x SMA (f) |
| Cellular Modem SIM | Nano SIM (Included with 1-year free service) |
| Status LED (Power/LAN/Modem) | Bi-Color Green/Red |
| Status LED (6x CU Link/SFP+) | Green |
| CU Interface | 2x RJ45 per CU |
| # of CU max. per NU | 6 |
| NU-Hub Expansion | SFP+ |
| # of CU max per CEL-FI QUATRA EVO Fiber Hub (Q40-Z1FNU) | 6 |
| Monitoring & Management | LAN RJ45 |
| WAVE Field Tool | USB 2.0 Micro-B |
| Coverage Unit Interface | |
| Server Antenna RF Connector | N-type (f) |
| NU Connectivity | 2x RJ45 |
| Status LED (Power) | Bi-Color Green/Red |
| Status LED(NU Link/Cable Link) | Green |
| WAVE Field Tool | USB 2.0 Micro-B |
| Compliance | |
| FCC | Part 15 |
| Part 90 | |
| UL | Yes |
| ISED | Yes |
| Power | |
| Input Voltage | 100-240 V |
| Input Current | 3.5 A |
| Power Consumption | 321.3 W max. |
| Power Cable | Type B (US) to IEC C13 |
| Power Supply Cable | 18 AWG |
| Power Supply Cable Length | 6 ft (1.8m) |
| Coverage Unit Power | PoE+ per IEEE 802.3at |
| Environmental | |
| Operating Temperature | 32 to 104°F (0 to 40 °C) |
| Storage Temperature | -31 to 158°F (-35 to 70 °C) |
| Heat Dissipation | Passive Convection |
| Surface Temperature | 111°F (44°C) max. at ambient |
| Non-condensing Humidity | 0 to 95% |
| Ingress Protection Rating | IPX0 |
