Nextivity J11-900-100 COMPASS XR Scanning Receiver
Product Code:
J11-900-100
Condition:
New
Weight:
0.73 KGS
Width:
41.91
(cm)
Height:
18.54
(cm)
Depth:
32.77
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The COMPASS XR scanning receiver is the complete solution to enable integrators to install and optimize CEL-FI cellular coverage systems and SHIELD emergency responder communication enhancement systems (ERCES). A convenient tool in a lightweight and portable case, COMPASS XR is used globally to deploy and verify multiple technologies, including 5G New Radio networks in sub-6 GHz spectrum, LTE, CBRS, and LMR public safety coverage.
Features and benefits include:

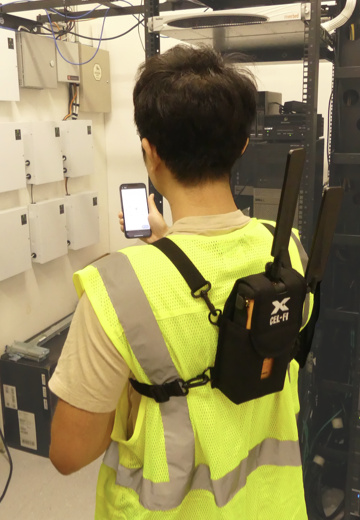

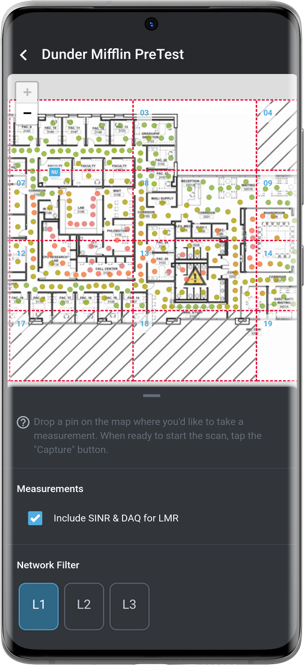

- Easily perform grid tests and site surveys with portable, handheld RF scanner
- Ideal for deployment of CEL-FI QUATRA Active DAS Hybrid systems and SHIELD ERCES
- Single tool for a wide variety of networks with deep 5G-NR/4G-LTE/CBRS/FirstNet/LMR service scanner
- Supports operator service bands worldwide with ultra-wide frequency range of 617-5000 MHz
- Comes with all necessary accessories, including carrying case, hard storage case, antennas, and RF adapters
- Protected from drop, scrapes, and tumbles with rugged rubberized exoskeleton that provides a comfortable grip

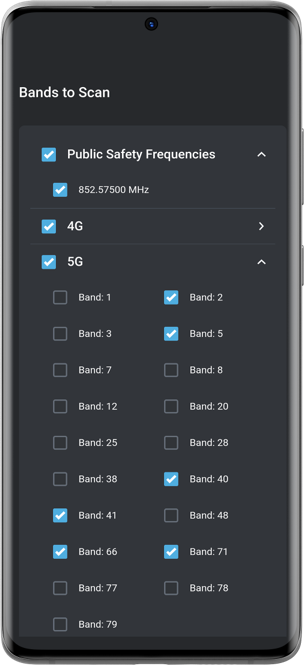

- Works with CEL-FI WAVE PRO app (iOS & Android) for all operations, including Full Signal Report export (.CSV) and more
| SPECIFICATIONS | |
| Hardware | |
| Hardware Processor | Single Board Linux Computer |
| Battery | Two rechargeable 3500 mAh, 3.7V protected 18650 cells (Included) |
| Charger | Included, with plug adapter types A, C, G, & I |
| Accuracy | +/- 2 dB |
| Operating Temperature Range | -20 to 60 °C |
| Charging Temperature Range | 0 to 45 °C |
| Weight (with Batteries) | 1.61 lb (730 g) |
| Size (with Exoskeleton) | 4.7 in (119.1 mm) W x 1.6 in (41.3 mm) D x 8 in (204.2 mm) H |
| Shipping Dimensions (W x D x H) | 16.5 in (419.1 mm) x 12.9 in (327.66 mm) x 7.3 in (185.42 mm) |
| Interface | |
| Interface Charging | USB-C |
| Antenna Ports | SMA Male (Three: Main, MIMO, LMR) |
| Power Button | LED Illuminated Button |
| LED Indicators | Three: Power, Status, and Charging |
| Bluetooth (LE Ver 4.2) | Frequency: 2402 – 2480 MHz. Power: 0 dBm. Connects to CEL-FI WAVE PRO App for UI |
| Wi-Fi Access Point | Software upgradeable; enabled only when a Software Upgrade is in progress, while charging. |
| Band Support | |
| Band Support | 5G-NR SA & NSA* n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48/n66/n71/n77/n78/n79 |
| LTE FDD | B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 |
| LTE TDD | B34/B38/B39/B40/B41/B42/B43/B48 |
| LMR | 758–775 / 851–861 MHz |
| *5G NSA (Non-StandAlone) scans are best-effort and may not contain all relevant measurements. 5G NSA support is carrier-dependent, generally based on SSB and the availability and content of SIB1 data within the 5G band. | |
| Calibration | |
| Calibration Certificate (LMR 700/800, U.S. only) | |
| Certifications | |
| FCC, ISED, CE | |
| In The Box | |
| RF Cable | SMA Female to N-type Male (2 meter length) |
| RF Adaptors | N-type Female to N-type Female |
| RF Adaptors | N-type Female to QMA Female |
| RF Adaptors | N-type Female to 4.3-10 Female |
| Antennas | Three (3) 5GNR/UHF 410–5925MHz (Replacement model: Nextivity A21-ML3-600) |
| Battery Charger | 5V, 3.2A USB-C charger with 1-m cable and global plug adapters |
| Included Accessories | |
| The COMPASS XR comes in a complete kit containing the accessories needed to connect the device to CEL-FI or SHIELD equipment, from industrial boosters to antennas. The kit also includes these two cases: | |

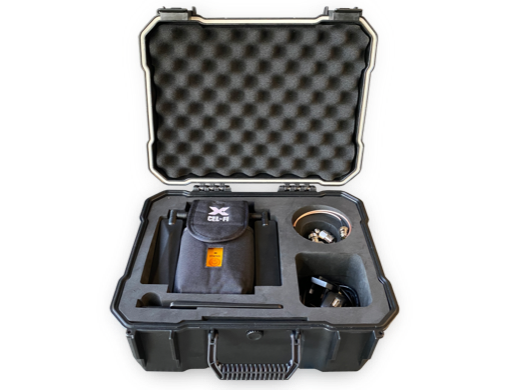

| Carrying Case • Designed for extended use in a variety of carry configurations • One-shoulder sling or two-shoulder backpack, straps included • Integrated belt clip • Internal pouch for spare antennas |
Hard Case • Rugged IP67-rated carry-on-sized transportation case • Die-cut foam secures all included equipment • Store COMPASS XR in its Carrying Case or separately • Extra space for additional cables and connectors |
5 customers are viewing this product
Details
The COMPASS XR scanning receiver is the complete solution to enable integrators to install and optimize CEL-FI cellular coverage systems and SHIELD emergency responder communication enhancement systems (ERCES). A convenient tool in a lightweight and portable case, COMPASS XR is used globally to deploy and verify multiple technologies, including 5G New Radio networks in sub-6 GHz spectrum, LTE, CBRS, and LMR public safety coverage.
Features and benefits include:
- Easily perform grid tests and site surveys with portable, handheld RF scanner
- Ideal for deployment of CEL-FI QUATRA Active DAS Hybrid systems and SHIELD ERCES
- Single tool for a wide variety of networks with deep 5G-NR/4G-LTE/CBRS/FirstNet/LMR service scanner
- Supports operator service bands worldwide with ultra-wide frequency range of 617-5000 MHz
- Comes with all necessary accessories, including carrying case, hard storage case, antennas, and RF adapters
- Protected from drop, scrapes, and tumbles with rugged rubberized exoskeleton that provides a comfortable grip
- Works with CEL-FI WAVE PRO app (iOS & Android) for all operations, including Full Signal Report export (.CSV) and more
| SPECIFICATIONS | |
| Hardware | |
| Hardware Processor | Single Board Linux Computer |
| Battery | Two rechargeable 3500 mAh, 3.7V protected 18650 cells (Included) |
| Charger | Included, with plug adapter types A, C, G, & I |
| Accuracy | +/- 2 dB |
| Operating Temperature Range | -20 to 60 °C |
| Charging Temperature Range | 0 to 45 °C |
| Weight (with Batteries) | 1.61 lb (730 g) |
| Size (with Exoskeleton) | 4.7 in (119.1 mm) W x 1.6 in (41.3 mm) D x 8 in (204.2 mm) H |
| Shipping Dimensions (W x D x H) | 16.5 in (419.1 mm) x 12.9 in (327.66 mm) x 7.3 in (185.42 mm) |
| Interface | |
| Interface Charging | USB-C |
| Antenna Ports | SMA Male (Three: Main, MIMO, LMR) |
| Power Button | LED Illuminated Button |
| LED Indicators | Three: Power, Status, and Charging |
| Bluetooth (LE Ver 4.2) | Frequency: 2402 – 2480 MHz. Power: 0 dBm. Connects to CEL-FI WAVE PRO App for UI |
| Wi-Fi Access Point | Software upgradeable; enabled only when a Software Upgrade is in progress, while charging. |
| Band Support | |
| Band Support | 5G-NR SA & NSA* n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48/n66/n71/n77/n78/n79 |
| LTE FDD | B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 |
| LTE TDD | B34/B38/B39/B40/B41/B42/B43/B48 |
| LMR | 758–775 / 851–861 MHz |
| *5G NSA (Non-StandAlone) scans are best-effort and may not contain all relevant measurements. 5G NSA support is carrier-dependent, generally based on SSB and the availability and content of SIB1 data within the 5G band. | |
| Calibration | |
| Calibration Certificate (LMR 700/800, U.S. only) | |
| Certifications | |
| FCC, ISED, CE | |
| In The Box | |
| RF Cable | SMA Female to N-type Male (2 meter length) |
| RF Adaptors | N-type Female to N-type Female |
| RF Adaptors | N-type Female to QMA Female |
| RF Adaptors | N-type Female to 4.3-10 Female |
| Antennas | Three (3) 5GNR/UHF 410–5925MHz (Replacement model: Nextivity A21-ML3-600) |
| Battery Charger | 5V, 3.2A USB-C charger with 1-m cable and global plug adapters |
| Included Accessories | |
| The COMPASS XR comes in a complete kit containing the accessories needed to connect the device to CEL-FI or SHIELD equipment, from industrial boosters to antennas. The kit also includes these two cases: | |
| Carrying Case • Designed for extended use in a variety of carry configurations • One-shoulder sling or two-shoulder backpack, straps included • Integrated belt clip • Internal pouch for spare antennas |
Hard Case • Rugged IP67-rated carry-on-sized transportation case • Die-cut foam secures all included equipment • Store COMPASS XR in its Carrying Case or separately • Extra space for additional cables and connectors |
Download
| Download Name | |
| Nextivity COMPASS XR Scanning Receiver Datasheet | |
