Nextivity
Nextivity G43-CBBE CEL-FI GO G43 FN
Product Code:
G43-CBBE
Condition:
New
Weight:
7.00 KGS
Width:
44.10
(cm)
Height:
9.70
(cm)
Depth:
31.20
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394

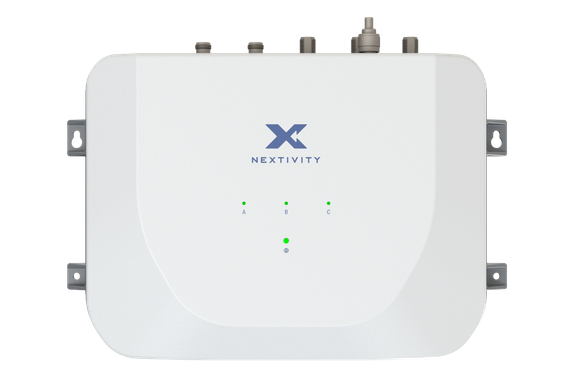

CEL-FI GO G43 FN
Multi-Operator Cellular and FirstNet Coverage Solution
Region: Only United States
The CEL-FI GO G43 FN is a cellular and FirstNet coverage solution designed for small stores, restaurants, and branch offices. The system boosts signals for all major carriers, including FirstNet Ban 14. With the latest Nextivity proprietary IntelliBoost chip, it enhances in-building cellular coverage for customers, employees, and systems, while ensuring emergency personnel on FirstNet Band 14 remain connected. Its advanced signal boosting capabilities outperform traditional wideband repeaters, delivering superior performance for multiple mobile network operators. GO G43 FN can be monitored and managed remotely via the WAVE Portal.
| BANDS | |||
| Frequency Bands | Downlink (MHz) | Uplink (MHz) | Max. Relay BW (MHz) |
| 2 | 1930-1990 | 1850-1910 | 20 |
| 4 | 2110-2155 | 1710-1755 | 20 |
| 5 | 869-894 | 824-849 | 15 |
| 12 | 729-746 | 699-716 | 10 |
| 13 | 746-756 | 777-787 | 10 |
| 14 | 758-768 | 788-798 | 10 |
| 25 | 1930-1995 | 1850-1915 | 20 |
| Specifications | |
| Frequency Bands | 2/4/5/12/13/14/25 |
| Relay Channel Bandwidths (MHz) | 5/10/15/20 |
| Networks | 4G/5G |
| Network Protocols | LTE/DSS/NR |
| Antenna Technology | SISO |
| Network Selection | Automatically best available (WAVE Portal for manual setting) |
| Duplex Modes | FDD |
| # of Relay Bands (max.) | 6 |
| Relay Bandwidth per Donor Port (MHz max.) | 20 + 20 |
| Output Downlink Power (All Bands) (dBm max. per band per port) | 17 |
| Output Downlink Power (All Bands) (dBm max. per channel per port) | 12 |
| Output Uplink Power (Bands 2/4/25) (dBm max.) | 22 |
| Output Uplink Power (Bands 5/12/13/14) (dBm max.) | 20 |
| System Gain (dBm max.) | 100 |
| Enterprise-Grade Echo Cancellation (dB min.) | 30 |
| Return Loss (dB typ.) | -8 |
| Impedance (Ω nom.) | 50 |
| Interface | |
| Donor RF Connector | 3x N-type (f) |
| Server RF Connector | 3x N-type (f) (2x N-type (f) terminated) |
| DC Input Power | DIN, 4 Pin |
| Power & System Status | 3x Bi-color LED (Green/Red) |
| LAN Status | 1x LED (Green) |
| Factory Debug only | 3x USB 2.0 Micro-B |
| System Management & SW Updates | RJ45 for WAVE Portal for Desktop |
| Compliance | |
| 3GPP | TS 25.143 Rel 13 |
| TS 36.143 Rel 13 | |
| FCC | Compliant |
| Part 15, Part 20, Part 22, Part 24, Part 27, Part 90 | |
| RoHS3 | EN 63000: 2018 |
| UL | Yes |
| ISED | Yes |
| Power Supply | |
| Power Consumption (W max.) | 102 |
| Input Voltage (VDC) | 11.4 to 12.6 |
| Input Current (A max.) | 8.5 |
| Power Supply Plug | Type A (US) |
| Power Supply AC Cable | 18 AWG |
| Power Supply Cable Length (ft (m)) | 6 (1.85) |
| Power Supply DC Cable | 16 AWG |
| Power Supply DC Cable Length (ft (m)) | 3.3 (1) |
| Environmental | |
| Operating Temperature (°F (°C)) | 32 to 104 (0 to 40) |
| Storage Temperature (°F (°C)) | -31 to 158 (-35 to 70) |
| Heat Dissipation | Passive Convection |
| Surface Temperature (°F (°C) max. at ambient) | 111.2 (44) |
| Non-condensing Humidity (%) | 0 to 95 |
| Ingress Protection Rating | IPX0 |
| Mechanical | |
| Main Unit Dimensions (in (mm)) | 17.4 x 12.3 x 3.8 (441 x 312 x 97) |
| Main Unit Weight (lbs (kg)) | 15.4 (7.0) |
5 customers are viewing this product
Details
CEL-FI GO G43 FN
Multi-Operator Cellular and FirstNet Coverage Solution
Region: Only United States
The CEL-FI GO G43 FN is a cellular and FirstNet coverage solution designed for small stores, restaurants, and branch offices. The system boosts signals for all major carriers, including FirstNet Ban 14. With the latest Nextivity proprietary IntelliBoost chip, it enhances in-building cellular coverage for customers, employees, and systems, while ensuring emergency personnel on FirstNet Band 14 remain connected. Its advanced signal boosting capabilities outperform traditional wideband repeaters, delivering superior performance for multiple mobile network operators. GO G43 FN can be monitored and managed remotely via the WAVE Portal.
| BANDS | |||
| Frequency Bands | Downlink (MHz) | Uplink (MHz) | Max. Relay BW (MHz) |
| 2 | 1930-1990 | 1850-1910 | 20 |
| 4 | 2110-2155 | 1710-1755 | 20 |
| 5 | 869-894 | 824-849 | 15 |
| 12 | 729-746 | 699-716 | 10 |
| 13 | 746-756 | 777-787 | 10 |
| 14 | 758-768 | 788-798 | 10 |
| 25 | 1930-1995 | 1850-1915 | 20 |
| Specifications | |
| Frequency Bands | 2/4/5/12/13/14/25 |
| Relay Channel Bandwidths (MHz) | 5/10/15/20 |
| Networks | 4G/5G |
| Network Protocols | LTE/DSS/NR |
| Antenna Technology | SISO |
| Network Selection | Automatically best available (WAVE Portal for manual setting) |
| Duplex Modes | FDD |
| # of Relay Bands (max.) | 6 |
| Relay Bandwidth per Donor Port (MHz max.) | 20 + 20 |
| Output Downlink Power (All Bands) (dBm max. per band per port) | 17 |
| Output Downlink Power (All Bands) (dBm max. per channel per port) | 12 |
| Output Uplink Power (Bands 2/4/25) (dBm max.) | 22 |
| Output Uplink Power (Bands 5/12/13/14) (dBm max.) | 20 |
| System Gain (dBm max.) | 100 |
| Enterprise-Grade Echo Cancellation (dB min.) | 30 |
| Return Loss (dB typ.) | -8 |
| Impedance (Ω nom.) | 50 |
| Interface | |
| Donor RF Connector | 3x N-type (f) |
| Server RF Connector | 3x N-type (f) (2x N-type (f) terminated) |
| DC Input Power | DIN, 4 Pin |
| Power & System Status | 3x Bi-color LED (Green/Red) |
| LAN Status | 1x LED (Green) |
| Factory Debug only | 3x USB 2.0 Micro-B |
| System Management & SW Updates | RJ45 for WAVE Portal for Desktop |
| Compliance | |
| 3GPP | TS 25.143 Rel 13 |
| TS 36.143 Rel 13 | |
| FCC | Compliant |
| Part 15, Part 20, Part 22, Part 24, Part 27, Part 90 | |
| RoHS3 | EN 63000: 2018 |
| UL | Yes |
| ISED | Yes |
| Power Supply | |
| Power Consumption (W max.) | 102 |
| Input Voltage (VDC) | 11.4 to 12.6 |
| Input Current (A max.) | 8.5 |
| Power Supply Plug | Type A (US) |
| Power Supply AC Cable | 18 AWG |
| Power Supply Cable Length (ft (m)) | 6 (1.85) |
| Power Supply DC Cable | 16 AWG |
| Power Supply DC Cable Length (ft (m)) | 3.3 (1) |
| Environmental | |
| Operating Temperature (°F (°C)) | 32 to 104 (0 to 40) |
| Storage Temperature (°F (°C)) | -31 to 158 (-35 to 70) |
| Heat Dissipation | Passive Convection |
| Surface Temperature (°F (°C) max. at ambient) | 111.2 (44) |
| Non-condensing Humidity (%) | 0 to 95 |
| Ingress Protection Rating | IPX0 |
| Mechanical | |
| Main Unit Dimensions (in (mm)) | 17.4 x 12.3 x 3.8 (441 x 312 x 97) |
| Main Unit Weight (lbs (kg)) | 15.4 (7.0) |
