Nextivity

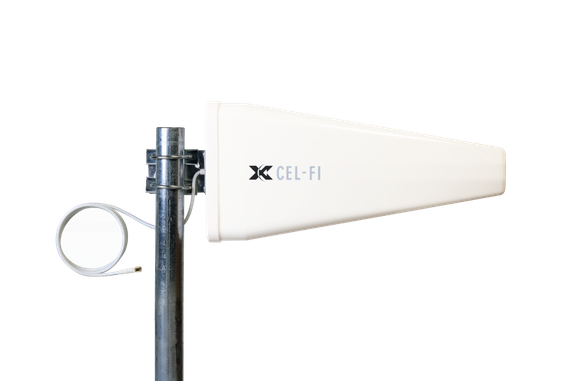

Nextivity CEL-FI Wideband Directional Antenna
Product Code:
A32-V32-200 | A32-V32-201
Condition:
New
Weight:
0.55 KGS
Width:
45.00
(cm)
Height:
6.00
(cm)
Depth:
20.50
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The CEL-FI Wideband Directional Antenna is an outdoor vertically polarized directional antenna; with 10dB gain in the low bands and 11dB gain in the high bands. The weather resistant housing is built with UV stabilized ABS plastic. Optimized for CEL‑FI products, the CEL-FI Wideband Directional Antenna can be used with the CEL-FI WAVE Antenna positioning app. The unit includes standard brackets for mounting, and can also be used with the CEL‑FI Pole Mount. Both models include a 10kohm resistor for use with Nextivity Antenna Monitoring System.
Features and benefits include:
- Boosts Cell Signal by up to 11 dBi
- 700 - 2700 MHz Frequency
- Vertical Polarization
- 10k Resistor Built-in
| Electrical Specifications | ||
| Frequency (MHz) | 698-960 | 1710-2700 |
| Service Bands | 10 dBi | 11 dBi |
| Horizontal Beamwidth (°) | 65° | |
| Vertical Beamwidth (°) | 55° | |
| VSWR | 1.8 | 1.5 |
| Impedance (Ω Nom.) | 50 Ω | |
| Polarization | Vertical | |
| Input Power (W Max.) | 50 | |
| Lighting Protection | DC Ground | |
| Nextivity Donor Antenna | Compatible with 10 kΩ resistor | |
| Mechanical Specifications | ||
| Dimensions (mm) | 450x205x60 mm | |
| Cable | 2m coax (±30mm) | |
| Packaging Size (mm) | 200x170x1g | |
| Sizm Weight (kg) | 550 g (±20g) | |
| Reflector Material | Aluminum | |
| Ramdom material | ABS | |
| Operating Temperature° | -40°C to +65°C | |
5 customers are viewing this product
Details
The CEL-FI Wideband Directional Antenna is an outdoor vertically polarized directional antenna; with 10dB gain in the low bands and 11dB gain in the high bands. The weather resistant housing is built with UV stabilized ABS plastic. Optimized for CEL‑FI products, the CEL-FI Wideband Directional Antenna can be used with the CEL-FI WAVE Antenna positioning app. The unit includes standard brackets for mounting, and can also be used with the CEL‑FI Pole Mount. Both models include a 10kohm resistor for use with Nextivity Antenna Monitoring System.
Features and benefits include:
- Boosts Cell Signal by up to 11 dBi
- 700 - 2700 MHz Frequency
- Vertical Polarization
- 10k Resistor Built-in
| Electrical Specifications | ||
| Frequency (MHz) | 698-960 | 1710-2700 |
| Service Bands | 10 dBi | 11 dBi |
| Horizontal Beamwidth (°) | 65° | |
| Vertical Beamwidth (°) | 55° | |
| VSWR | 1.8 | 1.5 |
| Impedance (Ω Nom.) | 50 Ω | |
| Polarization | Vertical | |
| Input Power (W Max.) | 50 | |
| Lighting Protection | DC Ground | |
| Nextivity Donor Antenna | Compatible with 10 kΩ resistor | |
| Mechanical Specifications | ||
| Dimensions (mm) | 450x205x60 mm | |
| Cable | 2m coax (±30mm) | |
| Packaging Size (mm) | 200x170x1g | |
| Sizm Weight (kg) | 550 g (±20g) | |
| Reflector Material | Aluminum | |
| Ramdom material | ABS | |
| Operating Temperature° | -40°C to +65°C | |
