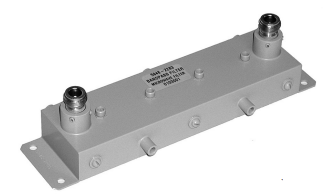

Microwave Filter Company 18260-(CH) Single Channel BAS Bandpass Filter
Product Code:
18260-(CH)
Condition:
New
Weight:
1.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
This single channel bandpass filter is used for Broadcast Auxiliary Services operating in the relocated 2 GHz band.
The 18260-(CH) offers low loss on the desired channel and it’s sharp selectivity not only eliminates potential interference from out-of-band sources such as PCS & WiFi, but also provides superior isolation from virtually all other BAS channels, which is key in any area where other broadcasters operate.
| Product Specifications | |
| Application | Single Channel |
| Insertion Loss | 2 dB Typ 3 dB Max |
| Channel Availability | BAS CHS. 1-7 (2025-2110 MHz) |
| Bandwidth | (Fo) ± 6 MHz Min |
| Impedance | 50 ohms |
| Connectors | N - Female |
| Rejection | 25 dB Typ 20 dB Min ± 12 MHz from Center CH, 45 dB Typ 40 dB Min ± 18 MHz from Center CH. |
5 customers are viewing this product
Details
This single channel bandpass filter is used for Broadcast Auxiliary Services operating in the relocated 2 GHz band.
The 18260-(CH) offers low loss on the desired channel and it’s sharp selectivity not only eliminates potential interference from out-of-band sources such as PCS & WiFi, but also provides superior isolation from virtually all other BAS channels, which is key in any area where other broadcasters operate.
| Product Specifications | |
| Application | Single Channel |
| Insertion Loss | 2 dB Typ 3 dB Max |
| Channel Availability | BAS CHS. 1-7 (2025-2110 MHz) |
| Bandwidth | (Fo) ± 6 MHz Min |
| Impedance | 50 ohms |
| Connectors | N - Female |
| Rejection | 25 dB Typ 20 dB Min ± 12 MHz from Center CH, 45 dB Typ 40 dB Min ± 18 MHz from Center CH. |
