Microwave Filter Company

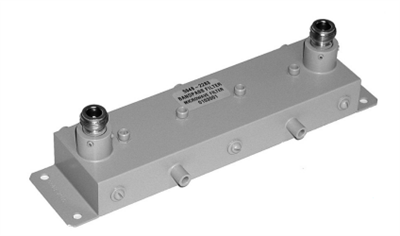

Microwave Filter Company 18245-(CH) Half Channel BAS Bandpass Filter
Product Code:
18245-(CH)
Condition:
New
Weight:
1.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
This bandpass filter is used for half channel applications in the BAS (2 GHz) band.
The 18245-(CH) provides strong isolation from virtually all potential sources of interference - including adjacent BAS channels.
- Ideal for use in “spectrum-crowded” cities/regions
- Available for BAS channels (1-7) - including (+) & (-) offset channels
- Economical - Allows the broadcaster to “split” their BAS channel capability more efficiently
| Product Specifications | |
| Application | Half Channel |
| Insertion Loss | 3 dB Typ |
| Bandwidth | 6 MHz Min |
| Impedance | 50 ohms |
| Connectors | N - Female, SMA Female |
| Passband VSWR (Max) | 1.5:1 |
| Rejection | 30 dB Typ ± 8 MHz from Center Channel, 50 dB Typ ± 12 MHz from Center Channel |
5 customers are viewing this product
Details
This bandpass filter is used for half channel applications in the BAS (2 GHz) band.
The 18245-(CH) provides strong isolation from virtually all potential sources of interference - including adjacent BAS channels.
- Ideal for use in “spectrum-crowded” cities/regions
- Available for BAS channels (1-7) - including (+) & (-) offset channels
- Economical - Allows the broadcaster to “split” their BAS channel capability more efficiently
| Product Specifications | |
| Application | Half Channel |
| Insertion Loss | 3 dB Typ |
| Bandwidth | 6 MHz Min |
| Impedance | 50 ohms |
| Connectors | N - Female, SMA Female |
| Passband VSWR (Max) | 1.5:1 |
| Rejection | 30 dB Typ ± 8 MHz from Center Channel, 50 dB Typ ± 12 MHz from Center Channel |
Download
| Download Name | |
| Microwave Filter Company 18245-(CH) Datasheet | |
