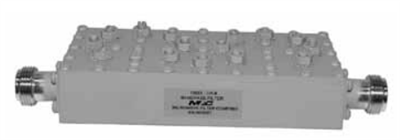

Microwave Filter Company 16693 Single Channel (Ultra-Selective) Bandpass Filter
Product Code:
16693
Condition:
New
Weight:
1.00 KGS
Width:
10.92
(cm)
Height:
2.03
(cm)
Depth:
5.59
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
This bandpass filter utilizes additional poles to isolate the desired channel from co-located, overlapping channels in addition to other transmission sources.
| Product Specifications | |
| Application | Single Channel (Ultra-Selective) Bandpass Filter |
| Channel Option | 1, 3, 6, 9, 11 |
| Bandwidth | 22 MHz |
| Insertion Loss | 3 dB Typ |
| Channel Return Loss (Min) | 15 dB |
| Rejection | ±15 MHz from channel center |
| Impedance | 50 ohms |
| Power Rating | 50 Watts (CW) |
| Connectors | N-Female |
| Operating Temperature Range | -40°C to +85°C |
| Dimensions | 4.3”x2.2”x0.8” |
5 customers are viewing this product
Details
This bandpass filter utilizes additional poles to isolate the desired channel from co-located, overlapping channels in addition to other transmission sources.
| Product Specifications | |
| Application | Single Channel (Ultra-Selective) Bandpass Filter |
| Channel Option | 1, 3, 6, 9, 11 |
| Bandwidth | 22 MHz |
| Insertion Loss | 3 dB Typ |
| Channel Return Loss (Min) | 15 dB |
| Rejection | ±15 MHz from channel center |
| Impedance | 50 ohms |
| Power Rating | 50 Watts (CW) |
| Connectors | N-Female |
| Operating Temperature Range | -40°C to +85°C |
| Dimensions | 4.3”x2.2”x0.8” |
