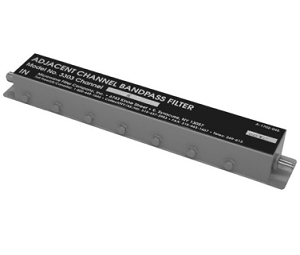

Microwave Filter Company 3303D VHF Channel Bandpass Filters
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
This premium channel filter suppresses virtually all out-of-band interference (including adjacent channels) while maintaining low insertion loss on the desired channel.
| Product Specifications | |
| Application | VHF |
| Available DTV Channels | 2 to 6, 7 to 13 |
| Channel Insertion Loss (Max) | 3.0 dB, 4.5 dB |
| Selectivity (relative to Channel Center) | 40 dB Typ ±5MHz, 35 dB Typ ±5MHz |
| Group Delay | 150 ns Typ |
| Return Loss (Min) | 14 dB |
| Dimensions | 10.25" x 1.50" |
| Connectors | F-Female, N, SMA or BNC-Female |
| Impedance | 75 ohms, 50 ohms |
5 customers are viewing this product
Details
This premium channel filter suppresses virtually all out-of-band interference (including adjacent channels) while maintaining low insertion loss on the desired channel.
| Product Specifications | |
| Application | VHF |
| Available DTV Channels | 2 to 6, 7 to 13 |
| Channel Insertion Loss (Max) | 3.0 dB, 4.5 dB |
| Selectivity (relative to Channel Center) | 40 dB Typ ±5MHz, 35 dB Typ ±5MHz |
| Group Delay | 150 ns Typ |
| Return Loss (Min) | 14 dB |
| Dimensions | 10.25" x 1.50" |
| Connectors | F-Female, N, SMA or BNC-Female |
| Impedance | 75 ohms, 50 ohms |
Download
| Download Name | |
| Microwave Filter Company 3303D Series Datasheet | |
