Microwave Filter Company

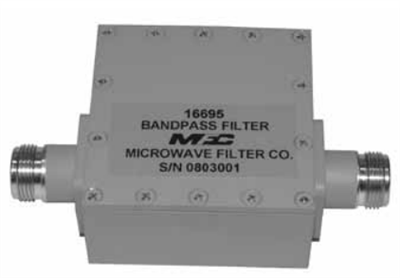

Microwave Filter Company 16695 PPDR (4.9 GHz) Full Band Filter
Product Code:
16695
Condition:
New
Weight:
1.00 KGS
Width:
5.84
(cm)
Height:
2.79
(cm)
Depth:
5.84
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
This filter achieves low loss within the 4.9 GHz band and provides superior isolation from virtually all other transmission sources above and below the band. Ideal for use in PPDR (Public Protection and Disaster Relief) telecom applications such as Homeland Security and other Public Safety Services.
| Product Specifications | |
| Application | Bandpass (4940-4990) MHz |
| Passband | 4940-4990 MHz |
| Passband Loss | 1 dB Max |
| Rejection | 10 dB Min @ 4890 MHz, 10 dB (Min) @ 5040 MHz |
| Power Rating | 50 Watts (CW) |
| Impedance | 50 ohms |
| Connectors | N-Female |
| Dimensions | 2.3” x 2.3” x 1.1” |
5 customers are viewing this product
Details
This filter achieves low loss within the 4.9 GHz band and provides superior isolation from virtually all other transmission sources above and below the band. Ideal for use in PPDR (Public Protection and Disaster Relief) telecom applications such as Homeland Security and other Public Safety Services.
| Product Specifications | |
| Application | Bandpass (4940-4990) MHz |
| Passband | 4940-4990 MHz |
| Passband Loss | 1 dB Max |
| Rejection | 10 dB Min @ 4890 MHz, 10 dB (Min) @ 5040 MHz |
| Power Rating | 50 Watts (CW) |
| Impedance | 50 ohms |
| Connectors | N-Female |
| Dimensions | 2.3” x 2.3” x 1.1” |
