Microwave Filter Company

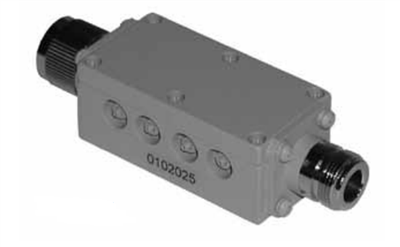

Microwave Filter Company 13944 Full Band (Economical) Bandpass Filter
Product Code:
13944
Condition:
New
Weight:
1.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
This model bandpass filter provides full band isolation from other transmission sources in an economical and compact design.
| Product Specifications | |
| Application | Full Band (Economical) Bandpass |
| Center Frequency (Fo) | 2442 MHz |
| Bandwidth | 100 MHz Min |
| Insertion Loss | 1.5 dB Max |
| Rejection | 40 dB Typ @ 2242 MHz, 40 dB Typ @ 2642 MHz |
| Impedance | 50 ohms |
| Connectors | N (Female and Male) |
| Operating Temperature Range | -30°C to +50°C |
5 customers are viewing this product
Details
This model bandpass filter provides full band isolation from other transmission sources in an economical and compact design.
| Product Specifications | |
| Application | Full Band (Economical) Bandpass |
| Center Frequency (Fo) | 2442 MHz |
| Bandwidth | 100 MHz Min |
| Insertion Loss | 1.5 dB Max |
| Rejection | 40 dB Typ @ 2242 MHz, 40 dB Typ @ 2642 MHz |
| Impedance | 50 ohms |
| Connectors | N (Female and Male) |
| Operating Temperature Range | -30°C to +50°C |
