Microwave Filter Company

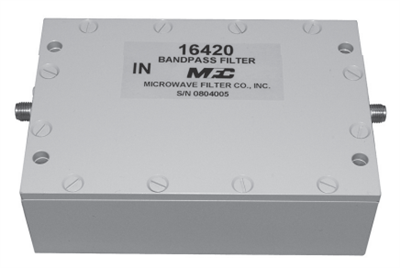

Microwave Filter Company 16420 ISM (2.4 GHz) Full Band Bandpass Filters
Product Code:
16420-X
Condition:
New
Weight:
1.00 KGS
Width:
4.00
(cm)
Height:
2.89
(cm)
Depth:
3.63
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
This filter isolates the full ISM Band by providing deep suppression of other transmission sources (GPS, BAS, BRS, EBS) and it’s extremely low-loss assures smooth operation with minimal signal degradation.
| Product Specifications | |
| Application | Full Band (Ultra-Low Loss) Bandpass |
| Center Frequency (Fo) | 2448 MHz |
| Bandwidth | 100 MHz Min |
| Insertion Loss | 0.5 dB Typ |
| Rejection | 80 dB Min @ 2000 MHz, 60 dB Min @ 2700 MHz |
| Impedance | 50 ohms |
| Power Rating | 50 Watts Max |
| Connectors | SMA Female |
| Operating Temperature Range | -40°C to +85°C |
| Ripple | 0.25 dB Max |
5 customers are viewing this product
Details
This filter isolates the full ISM Band by providing deep suppression of other transmission sources (GPS, BAS, BRS, EBS) and it’s extremely low-loss assures smooth operation with minimal signal degradation.
| Product Specifications | |
| Application | Full Band (Ultra-Low Loss) Bandpass |
| Center Frequency (Fo) | 2448 MHz |
| Bandwidth | 100 MHz Min |
| Insertion Loss | 0.5 dB Typ |
| Rejection | 80 dB Min @ 2000 MHz, 60 dB Min @ 2700 MHz |
| Impedance | 50 ohms |
| Power Rating | 50 Watts Max |
| Connectors | SMA Female |
| Operating Temperature Range | -40°C to +85°C |
| Ripple | 0.25 dB Max |
