Global Foxcom
Inmarsat & GPS Optical Repeater for Hangars
Product Code:
INMRKIT01-H-L125
Manufacturer Part Number (MPN):
INMRKIT01-X
Condition:
New
Weight:
5.00 KGS
$32,104.00

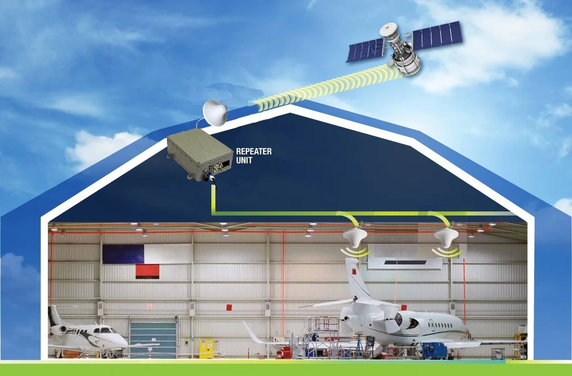

Global Foxcom’s Inmarsat & GNSS Fiber Optic Repeater Solution brings Inmarsat BGAN and GNSS signal coverage from outdoor to indoor environments for aircraft hangars and bunkers. The Inmarsat fiber repeater system includes an IP65-rated Outdoor Unit (ODU), an AC-powered Indoor Unit (IDU), antennas, and cabling.
Features & Benefits
- Extends Inmarsat BGAN satellite terminal coverage into indoor facilities
- Low RF transmission loss
- Helps improve signal quality across indoor testing environments
- Provides lightning protection
- Offers adjustable uplink and downlink gain control
- Available in dual-zone configuration
- Covers GPS L1/L2/L5, GLONASS, BeiDou, and Galileo configurations, depending on kit model
- Easy to install and maintain
- Savings on heating and cooling costs
- Quick return on investment (ROI)
- Standard 5-year warranty
| INMRKIT01-H-L125 | INMRKIT01-H-D-L125 | INMRKIT01-H-D | INMRKIT01-H-L1 | INMRKIT01-H-D-L1 | INMRKIT01-H |
| Hanger optimized Inmarsat/GPSL1,2,5 Optical repeater Kit - contains an IP65 outdoor and indoor rated unit, system is equipped with adjustable Uplink/Downlink Gain control. Both Outdoor and indoor unit are powered by a built in 100-220VAC 50-60Hz AC-DC PS. kit is supplied with the following: 2 high performance Inmarsat RHCP directional antenna, outdoor GPS Active Antenna , GPS passive Indoor Antennas and RF Cables (2 x 5meter for outdoor antenna and 2 x 10 meter for indoor antennas). System supports Inmarsat BGAN services and GPS L1/L2/L5, GLONASS G1/G2/G3, BeiDou B1/B2, Galileo E1/E5a+b. |
Hanger optimized Inmarsat/GPSL1,2,5 Dual Zone Optical repeater Kit - contains an IP65 outdoor/Indoor rated units powered by a built in 100-220VAC 50-60Hz AC-DC PS, units are equipped with adjustable Uplink/Downlink Gain control. kit is supplied with a high performance Inmarsat outdoor RHCP directional antenna, 2 x Inmarsat indoor directional RHCP Antenna, outdoor GPS Active Antenna, 2 x Indoor GPS Antenna and RF Cables (2 x 5 meter outdoor antenna cable, 4 x 20m indoor cable). System supports Inmarsat BGAN services and GPS L1/L2/L5, GLONASS G1/G2/G3, BeiDou B1/B2, Galileo E1/E5a+b. |
Hangar-optimized Inmarsat Dual Zone Optical repeater Kit - contains an IP65 outdoor/Indoor rated units powered by a built in 100-220VAC 50-60Hz AC-DC PS, units are equipped with adjustable Uplink/Downlink Gain control. Kit is supplied with a high performance Inmarsat outdoor RHCP directional antenna, 2 x Inmarsat indoor directional RHCP Antenna and RF Cables (1 x 5 meter outdoor antenna cable, 2 x 20m indoor cable). System supports Inmarsat BGAN services and it requires an additional GPS repeater system. Suitable for customers who already have installed GPS repeater |
Hangar-optimized Inmarsat/GPSL1 Optical repeater Kit - contains an IP65 outdoor and indoor rated unit, system is equipped with adjustable Uplink/Downlink Gain control. Both Outdoor and indoor unit are powered by a built in 100-220VAC 50-60Hz AC-DC PS. kit is supplied with: 2 high performance Inmarsat RHCP directional antenna, outdoor GPS Active Antenna , GPS passive Indoor Antennas and RF Cables (2 x 5meter for outdoor antenna and 2 x 10 meter for indoor antennas). System supports Inmarsat BGAN services and GPS L1, GLONASS G1, Galileo E1. |
Hangar-optimized Inmarsat/GPSL1 Dual Zone Optical repeater Kit - contains an IP65 outdoor/Indoor rated units powered by a built in 100-220VAC 50-60Hz AC-DC PS, units are equipped with adjustable Uplink/Downlink Gain control. Kit is supplied with a high performance Inmarsat outdoor RHCP directional antenna, 2 x Inmarsat indoor directional RHCP Antenna, outdoor Active GNSS Antenna, 2 x Indoor GPS Antenna and RF Cables (2 x 5 meter outdoor antenna cable, 4 x 20m indoor cable). System supports Inmarsat BGAN services and GPS L1, GLONASS G1, BeiDou B1/B2, Galileo E1. |
Inmarsat Optical repeater Kit - contains an IP65 outdoor/Indoor rated units powered by a built in 100-220VAC 50-60Hz AC-DC PS, units are equipped with adjustable Suitable for customers who already have installed GPS repeater |
5 customers are viewing this product
Details
Global Foxcom’s Inmarsat & GNSS Fiber Optic Repeater Solution brings Inmarsat BGAN and GNSS signal coverage from outdoor to indoor environments for aircraft hangars and bunkers. The Inmarsat fiber repeater system includes an IP65-rated Outdoor Unit (ODU), an AC-powered Indoor Unit (IDU), antennas, and cabling.
Features & Benefits
- Extends Inmarsat BGAN satellite terminal coverage into indoor facilities
- Low RF transmission loss
- Helps improve signal quality across indoor testing environments
- Provides lightning protection
- Offers adjustable uplink and downlink gain control
- Available in dual-zone configuration
- Covers GPS L1/L2/L5, GLONASS, BeiDou, and Galileo configurations, depending on kit model
- Easy to install and maintain
- Savings on heating and cooling costs
- Quick return on investment (ROI)
- Standard 5-year warranty
| INMRKIT01-H-L125 | INMRKIT01-H-D-L125 | INMRKIT01-H-D | INMRKIT01-H-L1 | INMRKIT01-H-D-L1 | INMRKIT01-H |
| Hanger optimized Inmarsat/GPSL1,2,5 Optical repeater Kit - contains an IP65 outdoor and indoor rated unit, system is equipped with adjustable Uplink/Downlink Gain control. Both Outdoor and indoor unit are powered by a built in 100-220VAC 50-60Hz AC-DC PS. kit is supplied with the following: 2 high performance Inmarsat RHCP directional antenna, outdoor GPS Active Antenna , GPS passive Indoor Antennas and RF Cables (2 x 5meter for outdoor antenna and 2 x 10 meter for indoor antennas). System supports Inmarsat BGAN services and GPS L1/L2/L5, GLONASS G1/G2/G3, BeiDou B1/B2, Galileo E1/E5a+b. |
Hanger optimized Inmarsat/GPSL1,2,5 Dual Zone Optical repeater Kit - contains an IP65 outdoor/Indoor rated units powered by a built in 100-220VAC 50-60Hz AC-DC PS, units are equipped with adjustable Uplink/Downlink Gain control. kit is supplied with a high performance Inmarsat outdoor RHCP directional antenna, 2 x Inmarsat indoor directional RHCP Antenna, outdoor GPS Active Antenna, 2 x Indoor GPS Antenna and RF Cables (2 x 5 meter outdoor antenna cable, 4 x 20m indoor cable). System supports Inmarsat BGAN services and GPS L1/L2/L5, GLONASS G1/G2/G3, BeiDou B1/B2, Galileo E1/E5a+b. |
Hangar-optimized Inmarsat Dual Zone Optical repeater Kit - contains an IP65 outdoor/Indoor rated units powered by a built in 100-220VAC 50-60Hz AC-DC PS, units are equipped with adjustable Uplink/Downlink Gain control. Kit is supplied with a high performance Inmarsat outdoor RHCP directional antenna, 2 x Inmarsat indoor directional RHCP Antenna and RF Cables (1 x 5 meter outdoor antenna cable, 2 x 20m indoor cable). System supports Inmarsat BGAN services and it requires an additional GPS repeater system. Suitable for customers who already have installed GPS repeater |
Hangar-optimized Inmarsat/GPSL1 Optical repeater Kit - contains an IP65 outdoor and indoor rated unit, system is equipped with adjustable Uplink/Downlink Gain control. Both Outdoor and indoor unit are powered by a built in 100-220VAC 50-60Hz AC-DC PS. kit is supplied with: 2 high performance Inmarsat RHCP directional antenna, outdoor GPS Active Antenna , GPS passive Indoor Antennas and RF Cables (2 x 5meter for outdoor antenna and 2 x 10 meter for indoor antennas). System supports Inmarsat BGAN services and GPS L1, GLONASS G1, Galileo E1. |
Hangar-optimized Inmarsat/GPSL1 Dual Zone Optical repeater Kit - contains an IP65 outdoor/Indoor rated units powered by a built in 100-220VAC 50-60Hz AC-DC PS, units are equipped with adjustable Uplink/Downlink Gain control. Kit is supplied with a high performance Inmarsat outdoor RHCP directional antenna, 2 x Inmarsat indoor directional RHCP Antenna, outdoor Active GNSS Antenna, 2 x Indoor GPS Antenna and RF Cables (2 x 5 meter outdoor antenna cable, 4 x 20m indoor cable). System supports Inmarsat BGAN services and GPS L1, GLONASS G1, BeiDou B1/B2, Galileo E1. |
Inmarsat Optical repeater Kit - contains an IP65 outdoor/Indoor rated units powered by a built in 100-220VAC 50-60Hz AC-DC PS, units are equipped with adjustable Suitable for customers who already have installed GPS repeater |
