Global Foxcom Iridium IRIDKIT01X Coaxial Repeater Kit for Hangars

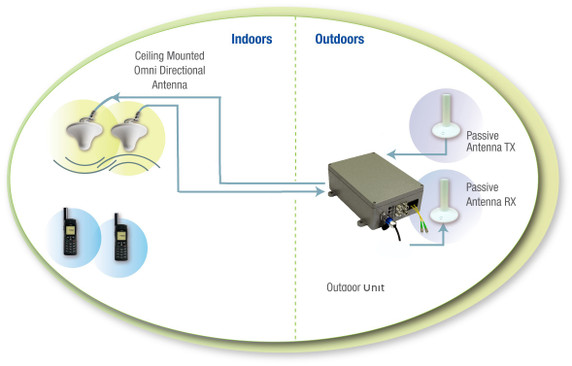

Global Foxcom’s Iridium Coaxial Repeater for Hangars extends Iridium satellite phone coverage from outdoor to indoor aircraft hangar environments. It enables avionics teams to perform testing indoors instead of moving aircraft outside whenever Iridium signal access is required. The ODU is supplied with an IP65 outdoor-rated AC-to-DC power supply.

Features & Benefits

• Operates across the 1616–1626.5 MHz Iridium frequency range
• Supports both uplink and downlink signal paths
• Provides ±10 dB adjustable gain
• Handles RF input signal levels up to -20 dBm
• Maintains noise figure below 5 dB on uplink and downlink paths
• RF input/output VSWR: 1:1.6
• Indoor unit RF connectors: dual SMA female
• Outdoor unit RF connectors: dual N-Type female
• Indoor unit operating temperature: -20°C to +55°C
• Outdoor unit operating temperature: -30°C to +55°C
• Power input: 100–220 VAC, 50–60 Hz
• Internal component output: 24 VDC
• ODU supplied with an IP65 outdoor-rated AC-to-DC power supply
• Easy to install and maintain
• Improve operational readiness
• Standard 5-year warranty
