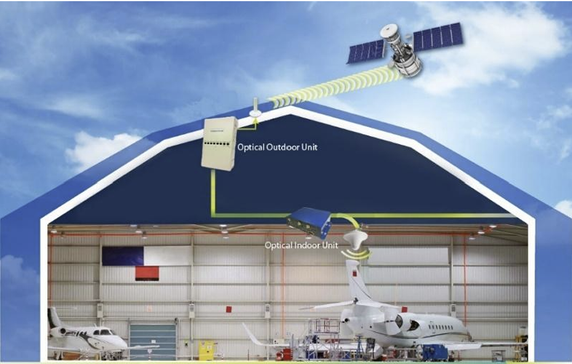

Global Foxcom’s GPS/GNSS Optical Repeater retransmits GNSS signals indoors or underground for large buildings, aircraft hangars, tunnels, data centers, military bunkers, and other facilities where direct satellite signal access is limited. The system uses an active outdoor antenna to receive the signal, an outdoor-rated transmit unit, a compact indoor repeater unit with adjustable RF gain, and indoor ceiling-mounted antennas to deliver controlled GPS/GNSS coverage inside the facility.

Features & Benefits

• Covers the 1164–1610 MHz GNSS frequency range
• Supports GPS L1/L2/L5, GLONASS L1/L2/L5, and Galileo E1/E5/E6
• 50 dB system gain for indoor signal retransmission
• Low noise figure below 2 dB from RSU to ASU
• Supports one or two indoor antennas
• Typical indoor coverage of 10 m x 10 m per antenna at 4 m ceiling height
• Designed for longer indoor cable runs above 40 m
• Outdoor unit operating range from -32°C to +49°C
• Outdoor storage ranges from -32°C to +71°C
• 95% humidity tolerance at 35°C, non-condensing
• 12 VDC / 0.5 A operating voltage and current consumption
• SMA and TNC female RF connector support
• Outdoor unit dimensions: 370 x 150 x 700 mm
• Optional high-power 4 mW laser transmitter available
• Single, dual, and quad indoor receiver output options available
• Standard 5-year warranty
