Wilson Electronics

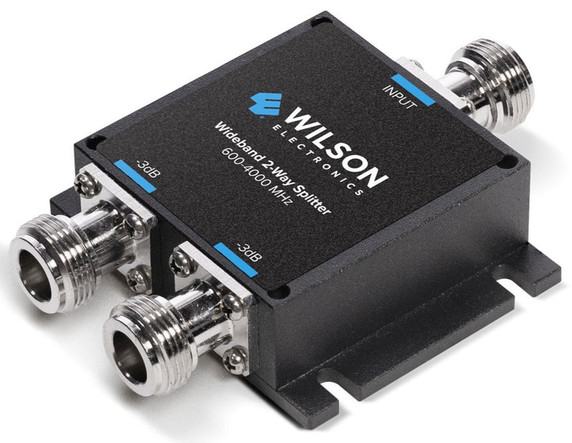

Wilson Electronics 7836565 Splitter Two-Way 600-4000 MHz
Product Code:
7836565
Manufacturer Part Number (MPN):
859105
UPC:
810005964104
Condition:
New
Weight:
0.24 KGS
Width:
10.48
(cm)
Height:
2.54
(cm)
Depth:
9.53
(cm)
$99.99
The Wilson Splitter 2-Way 600-4000 MHz, is designed to support a broad range of frequencies, it ensures minimal signal loss and low VSWR. The splitter is rated IP65, making it suitable for outdoor applications and capable of withstanding harsh environmental conditions.
| SPECIFICATIONS | |||
| Model | 859105 | 859112 | 859117 |
| Frequency Band (MHz) | 600-4000 | ||
| Number of Input | 1 | ||
| Number of Output | 2 | 3 | 4 |
| Insertion Loss (dB) | 1 | 1.2 | 1.2 |
| Isolation | 20 | 18 | 16 |
| VSWR (average in band) | ≤1.35 | ||
| Total Input Power (W) | 50 | ||
| Impedance (Ohm) | 50 | ||
| Connector | N-Female | ||
| Temp (deg) | -30~+70 | ||
| Application | Indoor or Outdoor, IP65 | ||
5 customers are viewing this product
Details
The Wilson Splitter 2-Way 600-4000 MHz, is designed to support a broad range of frequencies, it ensures minimal signal loss and low VSWR. The splitter is rated IP65, making it suitable for outdoor applications and capable of withstanding harsh environmental conditions.
| SPECIFICATIONS | |||
| Model | 859105 | 859112 | 859117 |
| Frequency Band (MHz) | 600-4000 | ||
| Number of Input | 1 | ||
| Number of Output | 2 | 3 | 4 |
| Insertion Loss (dB) | 1 | 1.2 | 1.2 |
| Isolation | 20 | 18 | 16 |
| VSWR (average in band) | ≤1.35 | ||
| Total Input Power (W) | 50 | ||
| Impedance (Ohm) | 50 | ||
| Connector | N-Female | ||
| Temp (deg) | -30~+70 | ||
| Application | Indoor or Outdoor, IP65 | ||
