Wilson Electronics

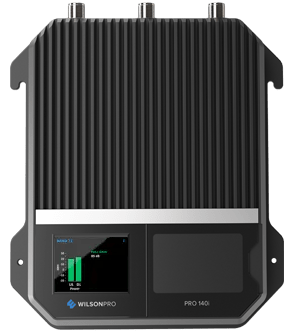

Wilson Electronics 14197877 WilsonPro 140i FirstNet Amplifier
Product Code:
14197877
Manufacturer Part Number (MPN):
460074
UPC:
810005964333
Condition:
New
Weight:
2.90 KGS
Width:
26.42
(cm)
Height:
7.62
(cm)
Depth:
23.11
(cm)
$1,999.99
Introducing the WilsonPro 140i, designed to provide critical, in-building cellular signal coverage for first responders using the nationwide FirstNet cellular network. FirstNet operates on the “Band 14” portion of 700MHz, providing police, fire, and rescue workers with their own dedicated cellular frequencies, in cases of emergencies.
Pro140i can be added to most existing WilsonPro inbuilding cellular amplifier systems, providing up to 100k sq ft** for each Pro140i installed, providing first responders with dedicated, priority 4G & 5G FirstNet cell service when operating indoors.
Features:
- Band 14 (FirstNet) cellular signal amplifier
- Certified under FCC “Industrial” amplifier rules
- Covers up to 100k ft2 with strong outside signal
- Installs ‘stand-alone’ or in parallel with an existing WilsonPro system
- Selectable simplex server (indoor) antenna port option for Zinwave fiber capability.
- Compatible with 4G/LTE/5G-NR Signals
- Internal digital filtering to prevent interference with other adjacent services
- Pro 140i can be added to any existing WilsonPro system
| SPECIFICATIONS | |
| MODEL NUMBER | 460074 |
| FREQUENCIES | Band 14 (FirstNet) |
| MAX GAIN | 80 dB |
| MAX UPLINK POWER | 27 dBm |
| MAX DOWNLINK POWER | 27 dBm |
| IMPEDANCE | 50 Ohms |
| POWER | 110 - 240 V AC, 50 - 60 Hz, 30 W |
| CONNECTORS | N-Female |
| AMPLIFIER DIMENSIONS | 10.4 in X 9.1 in X 3.0 in |
| AMPLIFIER WEIGHT | 6.4 lbs |
5 customers are viewing this product
Details
Introducing the WilsonPro 140i, designed to provide critical, in-building cellular signal coverage for first responders using the nationwide FirstNet cellular network. FirstNet operates on the “Band 14” portion of 700MHz, providing police, fire, and rescue workers with their own dedicated cellular frequencies, in cases of emergencies.
Pro140i can be added to most existing WilsonPro inbuilding cellular amplifier systems, providing up to 100k sq ft** for each Pro140i installed, providing first responders with dedicated, priority 4G & 5G FirstNet cell service when operating indoors.
Features:
- Band 14 (FirstNet) cellular signal amplifier
- Certified under FCC “Industrial” amplifier rules
- Covers up to 100k ft2 with strong outside signal
- Installs ‘stand-alone’ or in parallel with an existing WilsonPro system
- Selectable simplex server (indoor) antenna port option for Zinwave fiber capability.
- Compatible with 4G/LTE/5G-NR Signals
- Internal digital filtering to prevent interference with other adjacent services
- Pro 140i can be added to any existing WilsonPro system
| SPECIFICATIONS | |
| MODEL NUMBER | 460074 |
| FREQUENCIES | Band 14 (FirstNet) |
| MAX GAIN | 80 dB |
| MAX UPLINK POWER | 27 dBm |
| MAX DOWNLINK POWER | 27 dBm |
| IMPEDANCE | 50 Ohms |
| POWER | 110 - 240 V AC, 50 - 60 Hz, 30 W |
| CONNECTORS | N-Female |
| AMPLIFIER DIMENSIONS | 10.4 in X 9.1 in X 3.0 in |
| AMPLIFIER WEIGHT | 6.4 lbs |
Download
| Download Name | |
| WilsonPro 140i FirstNet Amplifier Data Sheet | |
