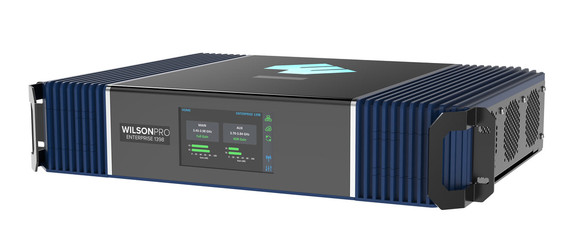

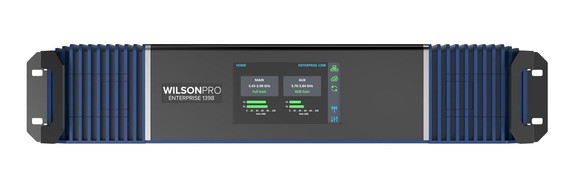

Wilson Electronics 14890690 Enterprise 1398 Amplifier

The Enterprise 1398 is the newest C-band 5G amplifier solution from WilsonPro. The enterprise-grade amplifier is compatible with the midband 5G frequency operating at 3.45 - 3.98 GHz and is an excellent upgrade for existing WilsonPro systems to support additional 5G coverage.After configuring the Enterprise 1398’s TDD modem, it will automatically synchronize, instantly amplifying the C-band signal and requires no additional backhaul to extend 5G right away. With included SDF, you target a specific network to amplify. The Enterprise 1398 provides dual paths, supporting 2x2 MIMO (200MHz). Alternatively, each path can be configured to amplify different frequencies (providing 400 MHz total bandwidth). The amplifier requires indoor and outdoor C-band antennas and 50-ohm coaxial cable with N-type connectors. Fits a standard (2U) rack. Carrier approval is required to operate this repeater.

Features:

• Optimizes mid-band 5G (3.45 - 3.98 GHz) in any building (excludes CBRS).
• After configuration, the Time Division Duplex (TDD) modem automatically syncs to the carrier network.
• Support for Full 2 X 2 MIMO with 200MHz per path.
• Network Scanning for real-time measurements of cell signal.
• Wired or LTE WilsonPro Cloud access for remote functionality.
• Install as a standalone unit or add-on to existing WilsonPro systems.
• XDR technology to virtually eliminate shutdown or signal loss.
• Color LCD touchscreen for assessing amplifier performance and viewing amplifier configuration.
• Compatible with ALL C-Band Capable phones/cellular devices, on all carriers.
